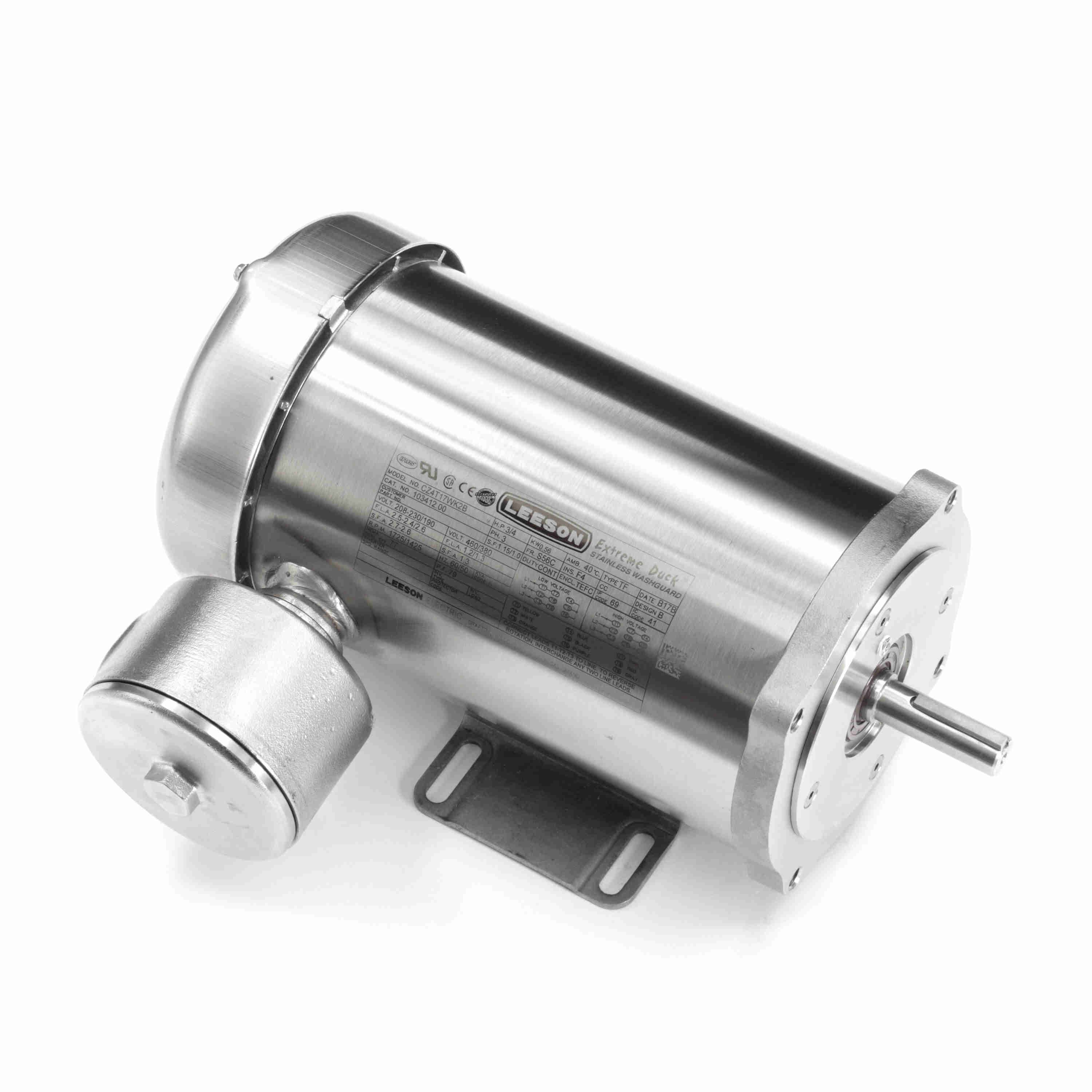

LEESON 103412.00 CZ4T17UK1C General Purpose Motor, 0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
10.00% off
€3,507.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 2.4/1.2A |
| Code | K |
| Design Code | B |
| Drive End Bearing Size | 6204 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Paint Free |
| Frame | S56C |
| Frame Length | 8" |
| Frame Material | Stainless Steel |
| Frame Type | S56C |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.5-2.4/1.2A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | K |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725/1425 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6204 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 79 |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 77
- Bearing OPE: 6204
- CC Number: EXEMPT
- Bearing PE: 6204
- Nameplate: 213-0016
- Winding: T55465
- GROUP: 4
- S. F Amps: 2.7-2.6 / 1.3
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Motor Mounting Type | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117119.00 | 208-230/460V | 1/2 hp | 1725 RPM | Paint Free | 56C | 1.6A | Face, Base | 104°F | €2,829.77 | |
 |
117121.00 | 208-230/460V | 3/4 hp | 1725 RPM | Paint Free | 56C | 1.1A | Face, Base | 104°F | €2,924.91 | |
 |
117122.00 | 230/460V | 1 hp | 3450 RPM | Paint Free | 56C | 1.3A | Face, Base | 104°F | €2,881.68 | |
 |
121880.00 | 230/460V | 1 1/2 hp | 1750 RPM | Paint Free | 143TC | 2.4A | Rigid Base | 104°F | €2,889.32 | |
 |
121881.00 | 230V | 2 hp | 3490 RPM | Paint Free | 145TC | 2A | Rigid Base | 104°F | €2,046.12 | |
 |
121882.00 | 230/460V | 2 hp | 1745 RPM | Paint Free | 145TC | 2A | Rigid Base | 104°F | €2,065.47 | |
 |
119522.00 | 230/460V | 1 1/2 hp | 1750 RPM | Unfinished | 56C | 4.8/2.4A | Face, Base | 104°F | €3,520.99 |
