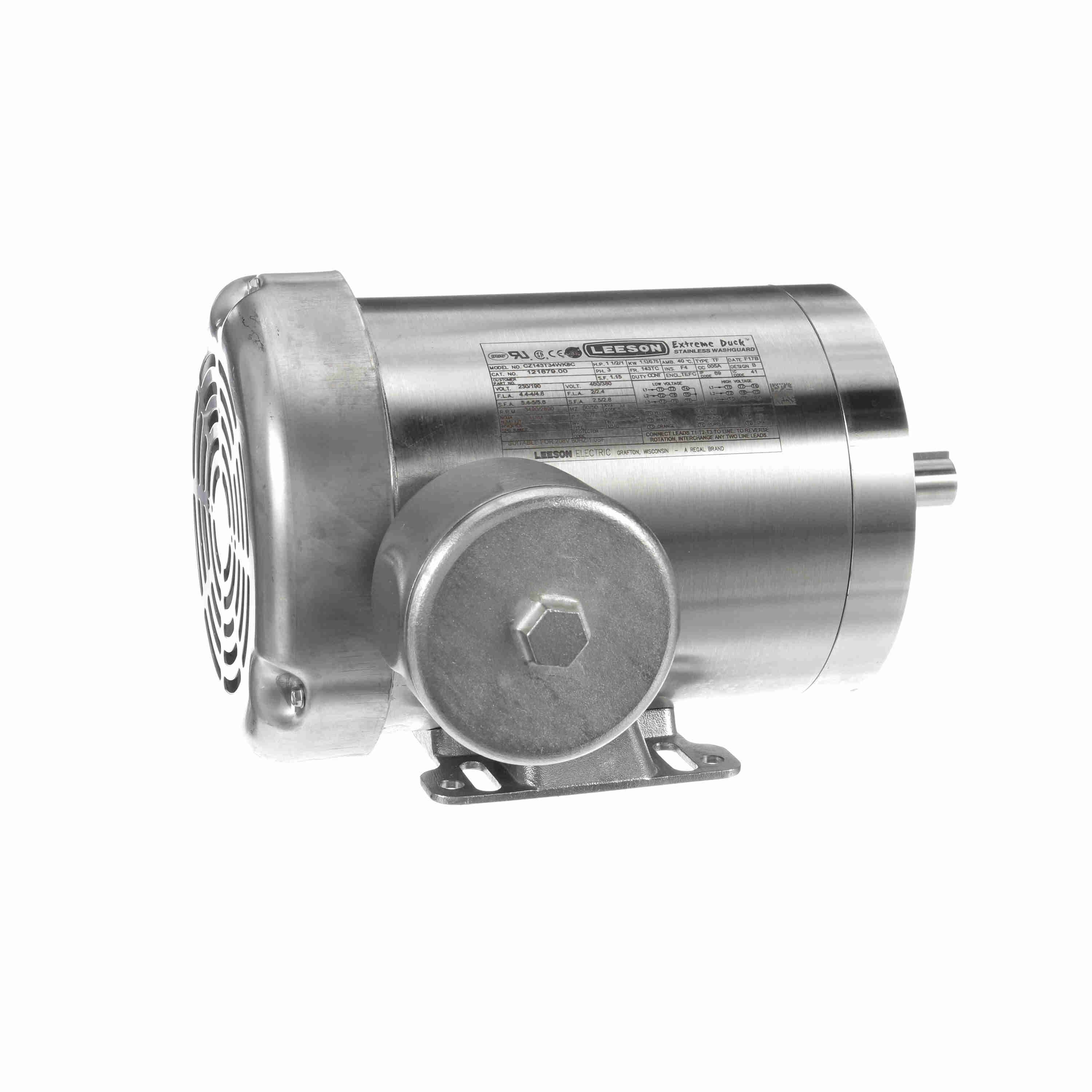

LEESON 121879.00 CZ143T34UK1D Washdown Motor, 1.50 And 1 HP, 60 And 50 Hz, 3600 And 3000 RPM
Get it by Tuesday, Aug 25
€1,861.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Amps | 4A |
| Bearing Type | Double Sealed |
| Body Dia. | 6.63" |
| Cc No. | CC005A |
| Composition | Steel |
| Dimensions C | 11 3/4" |
| Efficiency Group | Standard Efficient |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors, Extreme Duck Series |
| Frequency | 60 Hz |
| Full Load Amps | 4.4-4/2A |
| Hp | 1 1/2 hp |
| Includes | Frame, Base, Conduit Box Cover Endshields And Bearing Carrier Cover |
| Insulation | F4 |
| Kw | 1.1 kW |
| Length Less Shaft | 9 3/4" |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Mounting | C-Face-With Base |
| Mounting Type | Foot Mount, Rigid |
| Nameplate Speed | 3490 RPM |
| Nema Design | B |
| Nominal Voltage | 208/240/480V AC |
| Overall Length | 11 1/4" |
| Power | 1 1/2 hp |
| Product Datasheet | leeson-121879-00.pdf |
| Rotation | Reversible |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed | 3600 RPM |
| Voltage | 208-230/460V AC |
| Washdown Duty | Yes |
Shipping Info:
| Ship weight (kg) | 23.99 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Frequency | Voltage | Hp | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
121880.00 | 60 Hz | 230/460V | 1 1/2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2.4A | Three Phase | 7/8" | €3,005.18 | |
 |
121881.00 | 60 Hz | 230V | 2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2A | Three Phase | 7/8" | €2,046.12 | |
 |
121882.00 | 60 Hz | 230/460V | 2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2A | Three Phase | 7/8" | €2,065.47 | |
 |
103412.00 | 60 Hz | 208-230/460V | 3/4 hp | Rigid Base | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Squirrel Cage Induction Run | 5/8" | €3,557.60 | |
 |
103414.00 | 60 Hz | 208-230/460V | 3/4 hp | Round | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Squirrel Cage Induction Run | 5/8" | €1,663.89 | |
 |
119512.00 | 60 Hz | 208-230/460V | 1 hp | Round | Totally Enclosed Fan Cooled | 3.2/1.6A | Three Phase | 5/8" | €3,106.91 | |
 |
119520.00 | 60 Hz | 208-230/460V | 1 1/2 hp | Round | Totally Enclosed Fan Cooled | 4.6-4.8/2.4A | Three Phase | 5/8" | €1,815.13 |
