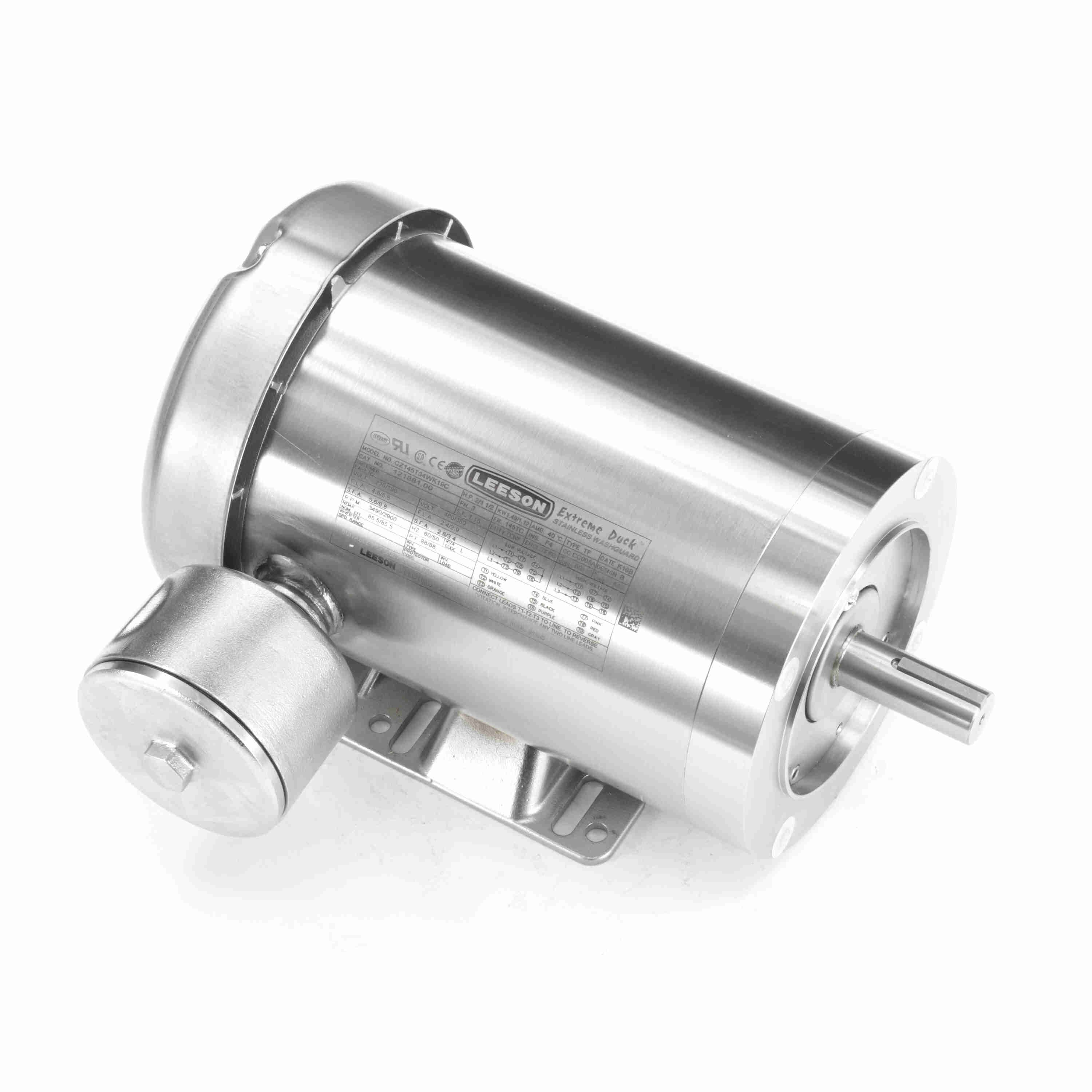

LEESON 121881.00 CZ145T34UK1D General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM

Item: AE7DYXModel: 121881.00Cross Ref: 5XAT0 / CZ145T34UK1D

Check Availability

In Stock

Get it by Monday, Jul 6

€2,046.12 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	4.8/2.4A
Application	Washdown
Bearing Type	Ball
Body Dia.	6 14/25"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Conduit Box	Oversized Stainless Steel Sidebox And Threaded Cover With O-Ring
Conduit Box Location	Exterior
De Bearing Size	6205
De Bearing Type	Ball
Design Code	B
Drain Plug	None
Drain Plugs	None
Duty Cycle	Continuous
Efficiency	85.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Endshield Grade	300 Series , Stainless Steel
Endshields	300 Series Stainless Steel
Finish	Paint Free
Frame	145TC
Frame Length	7 3/4"
Frame Material	Stainless Steel
Frame Type	145TC
Frequency	50/60 Hz , 60 Hz
Frequency	50/60 Hz
Full Load Amps	2A
Height	12 22/25"
Hp	2 hp
Included	Frame, Base, Conduit Box Cover Endshields, Bearing Carrier Cover
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP69
Kva Code	L
Kw	1.5 kW
Length	17.94"
Length Less Shaft	10 3/4"
Max. Ambient Temp.	40°C
Max. Speed	3490 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face/Base
Motor Mounting Type	Rigid Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW, CCW
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Speed	3490 RPM
Nema Design	B
No. Of Poles	2
No. Of Speeds	1
Nominal Efficiency	85.5%
Opp Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	12 3/4"
Phase	3
Power Factor	88
Product Datasheet	leeson-121881-00.pdf
Product Type	Washdown Motor
Resistance Main	6.4 ohms
Service Factor	1.15
Shaft Dia.	7/8"
Shaft Extension	2.25
Shaft Length	2 1/4"
Shaft Material	Stainless Steel
Shaft Type	T
Speed	3400-3600 RPM
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized
Starting Method	Across The Line
Thermal Protection	No Protection
Usable @ 200v	No
Usable @ 208v	No
Voltage	230V
Width	13.06"

Shipping Info:

Ship weight (kg)	27.99
Ship height (cm)	32.72
Ship length (cm)	45.57
Ship width (cm)	33.17
HS code	8501524000
Country of Origin	US

Product Details:

Supersedes Leeson - G121739.00 / CZ145T34WK10B

Documentation:

Datasheet

Product Variants

Model	Voltage	Hp	Frequency	Motor Enclosure Design	Full Load Amps	Mounting Type	Motor Type	Frame	Price
121880.00	230/460V	1 1/2 hp	60 Hz	Totally Enclosed Fan Cooled	2.4A	Rigid Base	Three Phase	143TC	€3,005.18
121882.00	230/460V	2 hp	60 Hz	Totally Enclosed Fan Cooled	2A	Rigid Base	Three Phase	145TC	€2,065.47
103412.00	208-230/460V	3/4 hp	60 Hz	Totally Enclosed Fan Cooled	2.5-2.4/1.2A	Rigid Base	Squirrel Cage Induction Run	S56C	€3,557.60
103414.00	208-230/460V	3/4 hp	60 Hz	Totally Enclosed Fan Cooled	2.5-2.4/1.2A	Round	Squirrel Cage Induction Run	S56C	€1,663.89
119512.00	208-230/460V	1 hp	60 Hz	Totally Enclosed Fan Cooled	3.2/1.6A	Round	Three Phase	56C	€3,106.91
119520.00	208-230/460V	1 1/2 hp	60 Hz	Totally Enclosed Fan Cooled	4.6-4.8/2.4A	Round	Three Phase	56C	€1,815.13
119522.00	230/460V	1 1/2 hp	60 Hz	Totally Enclosed Fan Cooled	4.8/2.4A	Rigid Base	Three Phase	56C	€3,214.29
