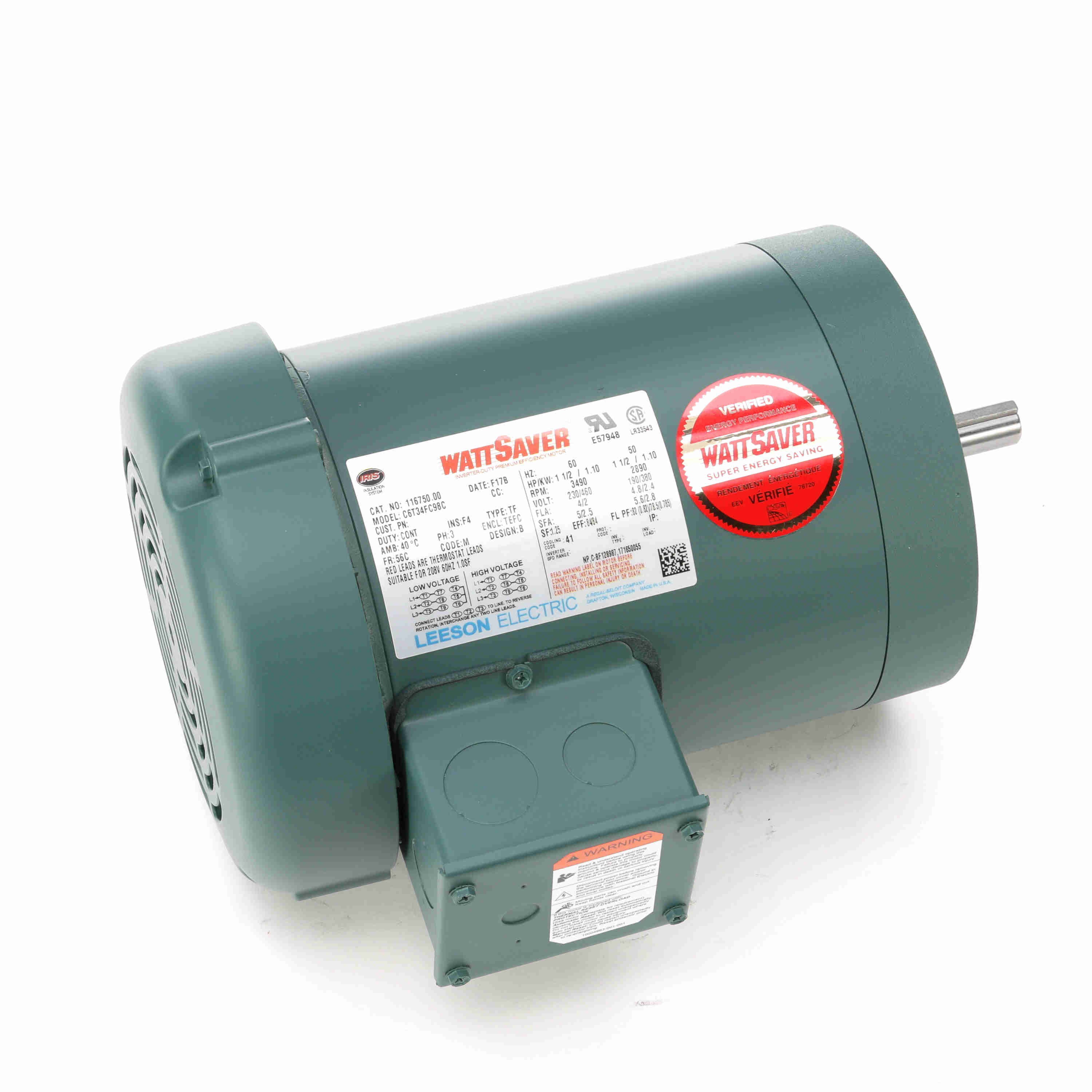

LEESON 116750.00 C6T34FC98C General Purpose Motor, 1.50 And 1.50 HP, 60 And 50 Hz, 3600 And 3000 RPM
1.1 kW, 1.1 kW
56C
Get it by Monday, Aug 24
€820.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Drive End | 6203 |
| Compatible Part/model Number | Baldor VEM3550 |
| Ct Speed Range | 2:1 |
| Efficiency Type | NEMA Premium |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed |
| Family Series | Leeson Motors, Three Phase C Face Series |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 4/2A |
| Ins. Class | Class F |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Reversible |
| Motor Thermal Protection | T STAT |
| Mounting Location | C-Face Footless |
| Mounting Type | C Face Less Base |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Voltage | 208/240/480V AC |
| Overall Length | 12" |
| Phase | 3 |
| Product Datasheet | leeson-116750-00.pdf |
| Removable Base | Permanently Lubricated Bearings |
| Rotation | CCW, CW |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 3600 RPM |
| Thermal Protection | Automatic |
| Type | General Purpose |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
