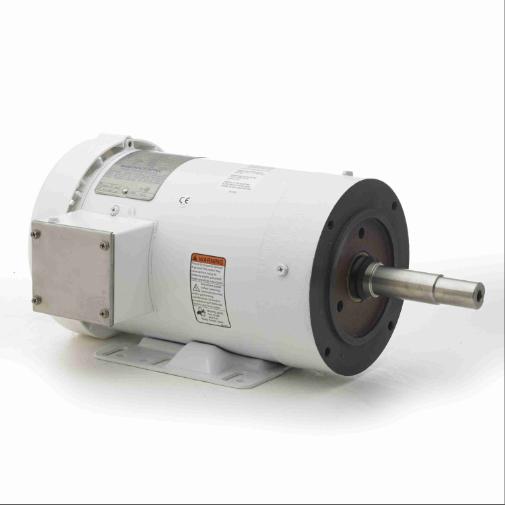

LEESON 143TTWR14002 143TTWR14002AA / N202 General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 3600 RPM
1.1 kW
143JM
Get it by Monday, Aug 24
€413.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient (c) | 40 |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Color | White |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Finish | Epoxy Coating |
| Frame | 143JM |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4-4.4/2A |
| Full Load Efficiency | 82.5% |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Removable Base |
| Nameplate Speed | 3600 RPM |
| Nema Design | B |
| Orientation | Horizontal |
| Phase | 3 |
| Power | 1.12 kW |
| Service Factor | 1.15 |
| Speed | 3600 RPM |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 28.58 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6206
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
