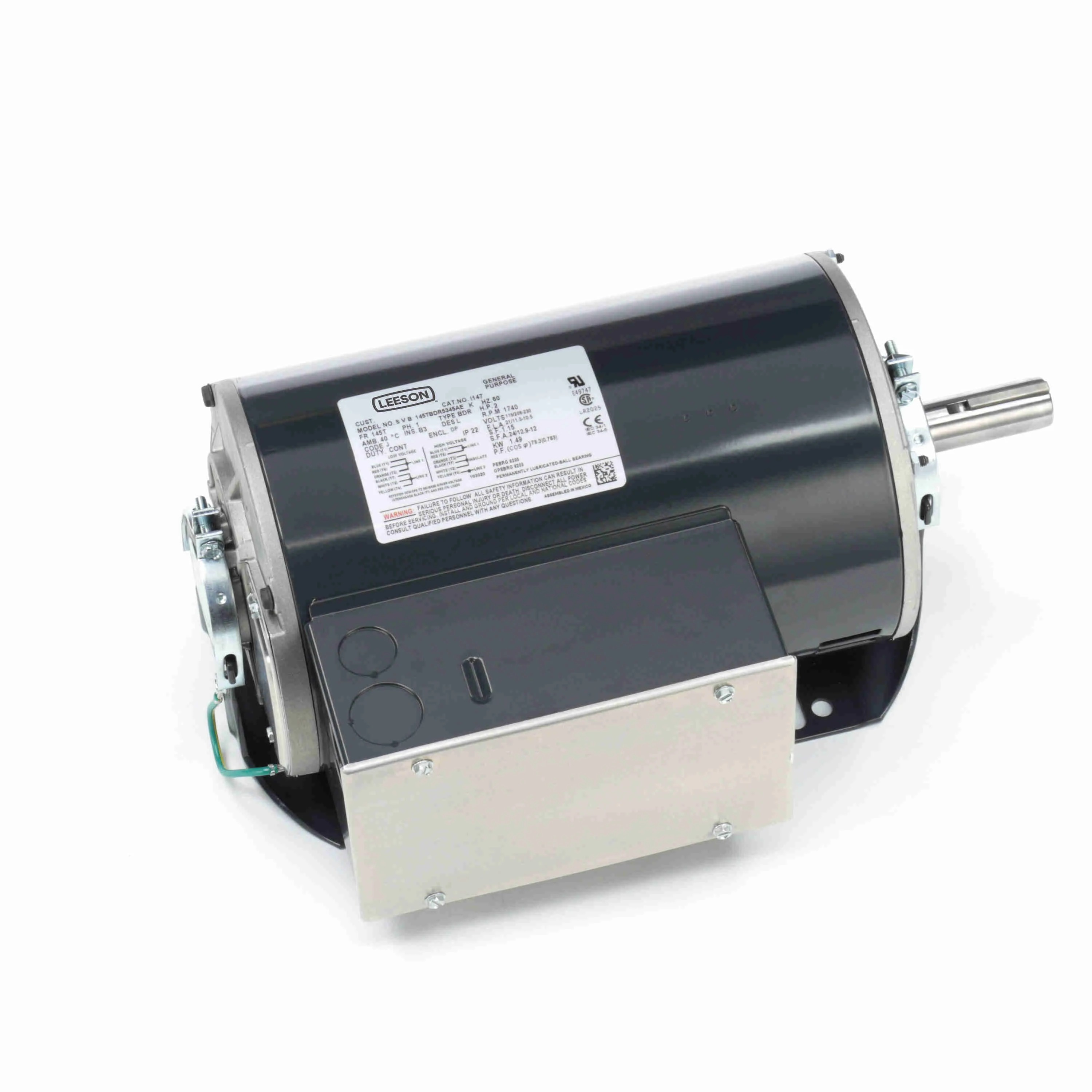

LEESON 145TBDR5345 I147 / 145TBDR5345AE General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€759.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 21/10.5-11.3A |
| Hp | 2 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 14 1/4" |
| Length Less Shaft | 11 15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 1 |
| Overall Length | 14 1/4" |
| Phase | 1 |
| Rpm | 1740 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | Keyed |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Weight | 50 lbs. |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Frame | Shaft Length | Max. Ambient Temp. | Rpm Range | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KC48UN6052 | 115/230V AC | 1/2 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | €1,070.34 | |
 |
5KC36LN26 | 115/208-230V AC | 1/3 hp | Cradle Base | 48 | 1 1/2" | 104°F | 1701-1800 RPM | Open Dripproof | €520.91 | |
 |
5KC36LN26X | 115/208-230V AC | 1/3 hp | - | 48 | 1 1/2" | 104°F | 1701-1800 RPM | - | €642.92 | |
 |
5KC46JN0002X | 115/208-230V AC | 3/4 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1701-1800 RPM | Open Dripproof | €666.06 | |
 |
5KC49PN6051 | 115/230V AC | 1/3 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | €688.95 | |
 |
5KC49PN6051X | 115/230V AC | 1/3 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | €837.66 | |
 |
5KC35JN7X | 115/230V AC | 1/4 hp | Cradle Base | 48 | 1 1/2" | 104°F | 1701-1800 RPM | Open Dripproof | €396.22 |
