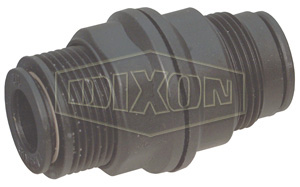

DIXON 31160800 Push-In Bulkhead Union, 5/16 Inch Size, Nylon
Item: BX6PGLModel: 31160800
7 In Stock
Ships within 2 days via
€26.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Union |
| Application | Compatible Tubing: Semi-Rigid Nylon, Polyurethane And Polyethylene Tube, Vacuum Capability: Vacuum Of 28" Hg (99% Vacuum) |
| Construction | Black Body Is Glass-Filled Nylon, Buna-N D Seal, Polypropylene Release Button, Silicone Free |
| Feature | Positive Seal: Sealing And Holding Is Accomplished Instantaneously, Reusable: Connect And Disconnect Numerous Times, Full Flow: Fitting Seals On Outside Diameter Of Tubing |
| Installation | Quick Connect And Disconnect, No Tools Required. To Connect, Simply Push Tubing In. To Disconnect, Press The Release Ring Towards The Fitting And Pull Tubing Out. |
| Material | Nylon |
| Max. Temp. | 175°F |
| Min/max Temp. | -4°F, 175°F |
| Pressure | 290 psi |
| Product Datasheet | dixon-31026000.pdf |
| Seal | Nitrile Rubber D Seal |
| Seal Material | Nitrile Rubber |
| Seal Shape | D |
| Seal Type | D Seal |
| Series | Legris Series |
| Shape Orientation | Straight |
| Temp. | -4°F to +175°F |
| Tube Outside Dia. | 5/16" |
| Working Pressure | 290 psi |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Outside Dia. | Material | Temp. | Working Pressure | Seal Shape | Pressure | Max. Temp. | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 31165600 | 1/4" | Nylon | -4°F to +175°F | 290 psi | D | 290 psi | 175°F | Legris Series | €15.59 | |
| 31166000 | 3/8" | Nylon | -4°F to +175°F | 290 psi | D | 290 psi | 175°F | Legris Series | €23.83 | |
| 31160400 | 5/32" | Nylon | -4°F to +175°F | 290 psi | D | 290 psi | 175°F | Legris Series | €15.25 | |
| 31165300 | 1/8" | Nylon | -4°F to +175°F | 290 psi | D | 290 psi | 175°F | Legris Series | €15.59 | |
| 31166200 | 1/2" | Nylon | -4°F to +175°F | 290 psi | D | 290 psi | 175°F | Legris Series | €35.07 |
