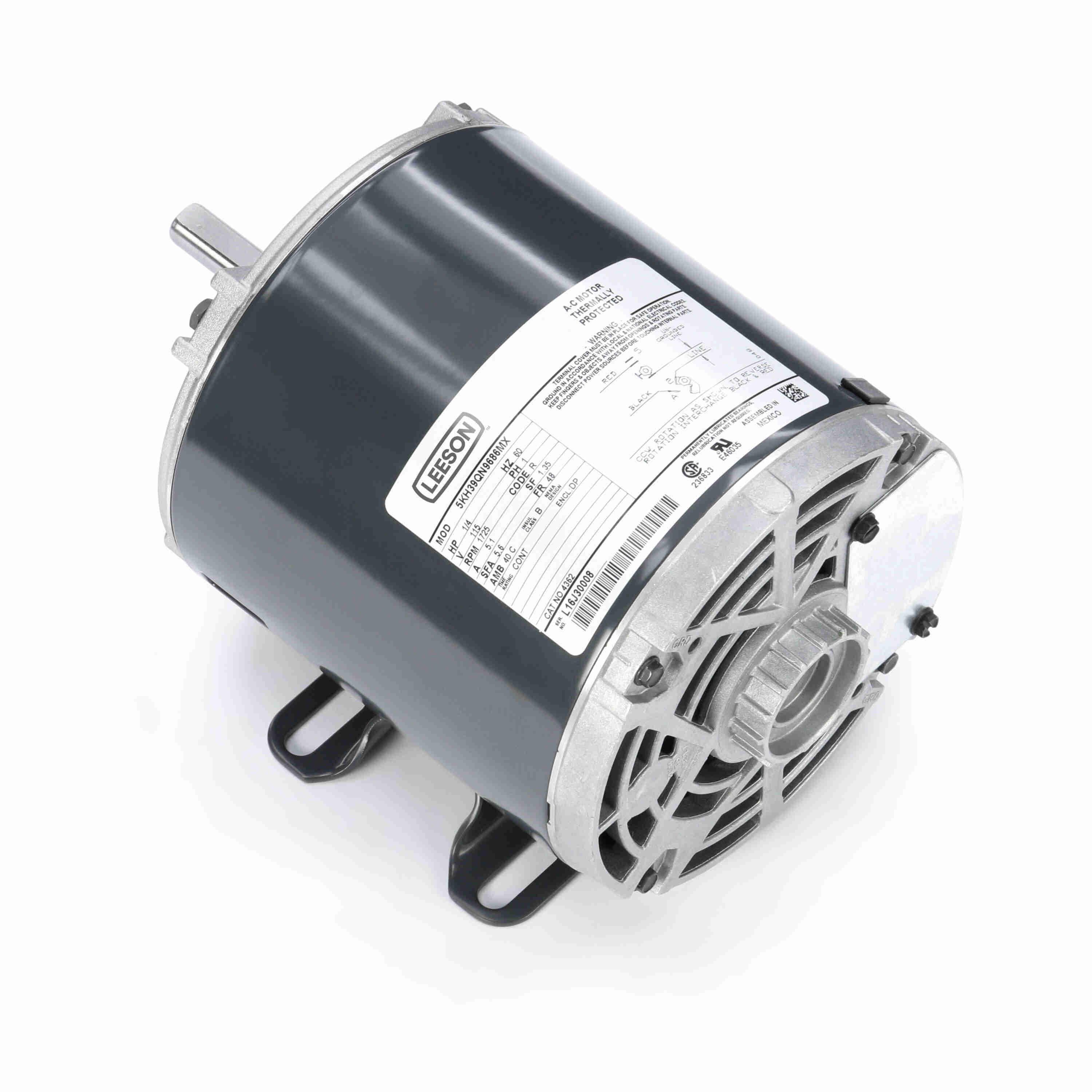

LEESON 5KH39QN9686X 5KH39QN9686MX / 4362 General Purpose Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
0.19 kW
48
Get it by Monday, Aug 24
€263.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 52.5% |
| Efficiency Group | Standard |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.1A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 7 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 52.5% |
| Overall Length | 8 7/8" |
| Phase | 1 |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
