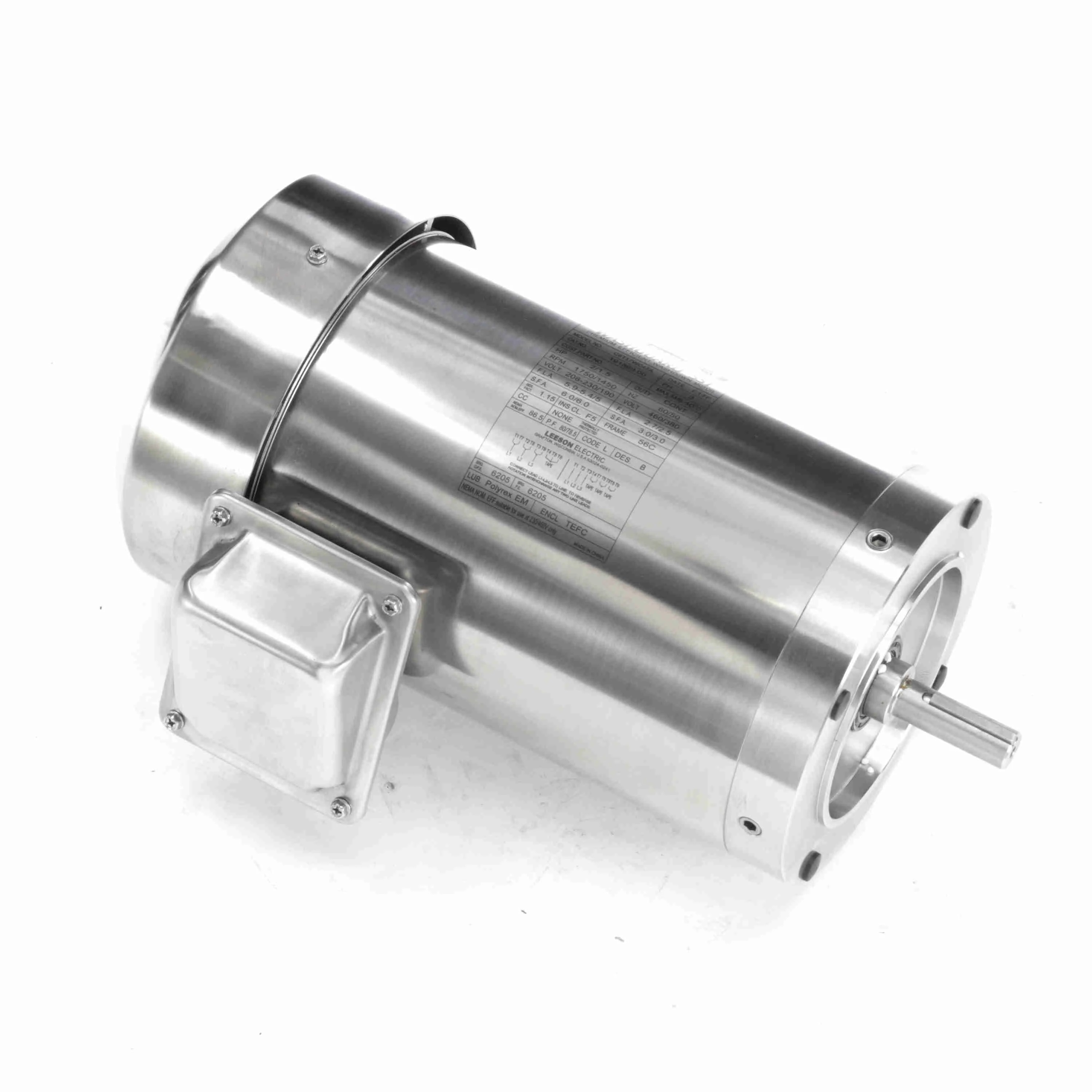

LEESON 191569.00 C6T17WC64A General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM

Item: CH6HZTModel: 191569.00Cross Ref: 48ZH76 / C6T17WC64A

Check Availability

In Stock

1.5 kW, 1.1 kW

Output KW

56C

Frame

Get it by Tuesday, Aug 18

~~€2,958.84~~

5.00% off

€2,810.90 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	5.4-5.8/2.7A
Application	Washdown
Bearing Type	Ball
Body Dia.	6 1/2"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Conduit Box Location	Exterior
Conduit Box Position	F1
Design Code	B
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	86.5%
Efficiency Group	Premium
Electrical Type	Squirrel Cage, Inverter Rated
Enclosure Type	Tefc
Frame	56C
Frame Material	Stainless Steel
Frame Type	56C
Frequency	50/60 Hz
Frequency	50/60 Hz , 60 Hz
Full Load Amps	5.4-5.8/2.7A
Green Certification Or Other Recognition	NEMA Premium Rated
Height	10 4/25"
Hp	2 hp
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	L
Kw	1.5 kW
Length	16.77"
Length Less Shaft	11 7/8"
Max. Ambient Temp.	40°C
Max. Speed	1750 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Stainless Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Counter Clockwise Shaft End
Motor Shaft Rotation	CWSE
Motor Thermal Protection	None
Motor Type	Three Phase
Mounting Type	Face
Nameplate Speed	1750 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	86.5%
Opp Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	13 3/4"
Phase	3
Power Factor	80
Product Datasheet	leeson-191569-00.pdf
Product Type	Washdown Motor
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	2.06"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Speed	1700-1800 RPM
Starting Method	Line Or Inverter
Thermal Protection	No Protection
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Width	11.7"

Shipping Info:

Ship weight (kg)	21.15
Ship height (cm)	25.81
Ship length (cm)	42.6
Ship width (cm)	29.72
Country of Origin	CN
