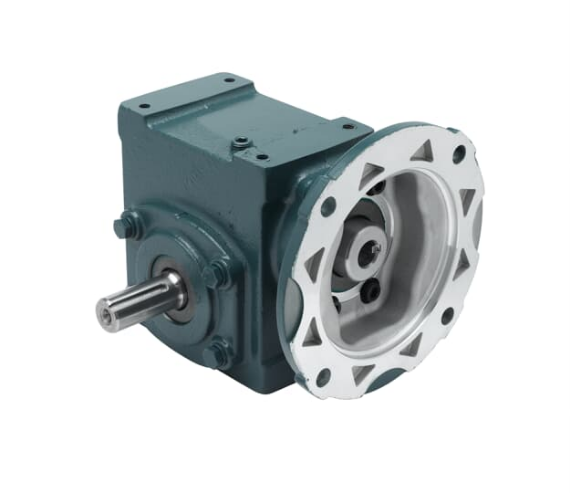

BALDOR / DODGE 23Q04LR14 TIGEAR-2 Right Angle Reducer
Get it by Tuesday, Dec 23
€1,549.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base To Output Center Height | 2 1/2" |
| Case Size | 23 |
| Center Distance | 2.31" |
| Center To End Of Shaft Distance | 5.14" |
| Color | Green |
| Frame Size | 140 |
| Gear Box | 23 |
| Gear Ratio | 4 |
| Housing Material | Cast Iron |
| Hp Rating Input | 5 3/5 hp |
| Hp Rating Output | 5 11/50 hp |
| Input Flange | 140TC |
| Input Style | Quill |
| Lubrication Type | PAG, Standard Temperature |
| Mfr. Series | Tigear II Series |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Mounting Bolt Pattern Length | 5" |
| Mounting Bolt Pattern Width | 2 22/25" |
| Nominal Ratio | 4 |
| Output Shaft Center To Input Motor Mounting Face Distance | 5.46" |
| Output Style | Left, Right |
| Output Type | Double Solid |
| Overhung Load | 1063 lbf. |
| Paint Type | Standard |
| Rated Torque Output | 752 lbs.-in. |
| Ratio | 4:1 |
| Seal Type | Single Lip Contact |
| Shaft Dia. | 1 1/4" |
| Shaft Dia. Output | 1 1/8" |
| Shaft Key (in.) | No |
| Shaft Length | No |
| Shaft Length Output | 2.18" |
| Shaft Output Type | Double Solid |
| Suitable For Washdown | No |
| Thermal Hp Rating | 7 hp |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Overhung Load | Gear Ratio | Shaft Dia. | Output Type | Frame Size | Finish | Housing Material | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23Q05H14 | 1330 lbf. | 5 | 1.438" | Hollow | 140 | - | Cast Iron | Single Lip Contact | €1,797.54 | |
|
23Q05H18 | 1330 lbf. | 5 | 1.438" | Hollow | 180 | - | Cast Iron | Single Lip Contact | €2,045.90 | |
 |
23Q05R56 | 1330 lbf. | 5 | 1 1/4" | Right Solid B | 56 | Green Finish | Cast Iron | Single Lip Contact | €1,362.70 | |
|
23Q07H14 | 1520 lbf. | 7 | 1.438" | Hollow | 140 | Green Finish | Cast Iron | Single Lip Contact | €1,797.54 | |
|
23Q07H18 | 1520 lbf. | 7 | 1.438" | Hollow | 180 | - | Cast Iron | Single Lip Contact | €2,045.90 | |
|
23Q07H56 | 1520 lbf. | 7 | 1.438" | Hollow | 56 | - | Cast Iron | Single Lip Contact | €1,797.54 | |
 |
23Q07L14 | 1520 lbf. | 7 | 1 1/4" | Left Solid A | - | Green Finish | Cast Iron | Single Lip Contact | €1,362.70 |
