MARATHON MOTORS 056C17D5347 B336 Single Phase Motor | AJ2KYV 46N394 / B336

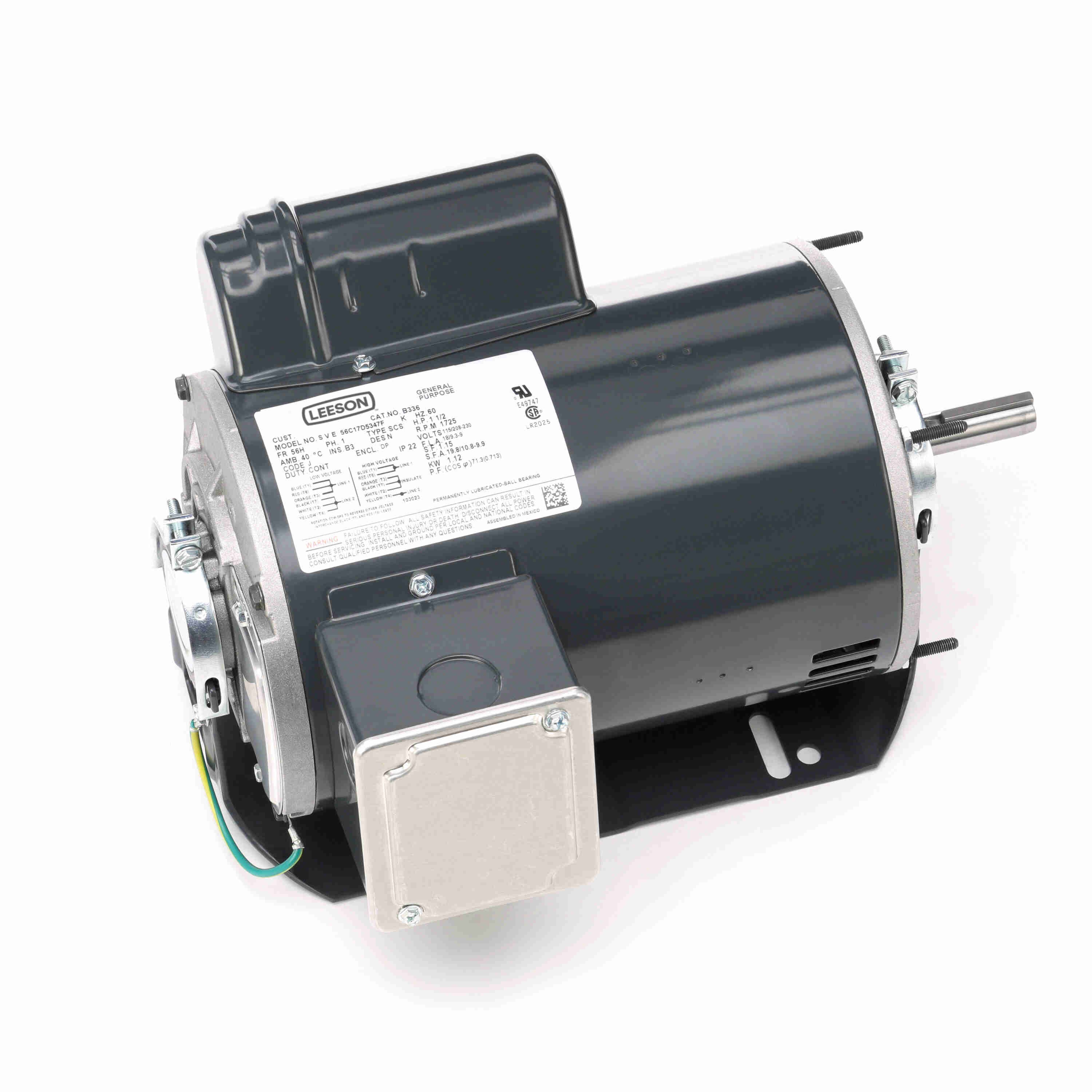

LEESON 056C17D5347 56C17D5347F / B336 General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM

Item: AJ2KYVModel: 056C17D5347Cross Ref: 46N394 / 56C17D5347F / B336
Check Availability
In Stock
Output KW
Frame

Get it by Monday, May 18

€717.98 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item HVAC Motor
Ambient (c) 40°C
Ambient Temp. 40°C
Assembly F1 Only
Bearing Type Ball
Conduit Box Position F1 Only
Duty Cycle Continuous
Efficiency 77%
Enclosure Type Dripproof
Frame 56H
Frame Material Steel
Frequency 60 Hz
Full Load Amps 18/9-9.3A
Hp 1 1/2 hp
Insulation Class Class B
Inverter Rated No
Length Less Shaft 10 15/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 104°F
Motor Application General Application
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Cradle Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Type Capacitor Start
Mounting Type Resilient Base Extended Studs
Nameplate Rpm 1725 RPM
Nema Design N
Nominal Efficiency 77%
Number Of Speeds 1
Overall Length 12 7/8"
Phase 1
Power 1.12 kW
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Shaft Orientation Horizontal
Standards Csa, Ul Recognized
Thermal Protection None
Usable @ 200v No
Usable @ 208v Yes
Voltage 115/208-230V AC
Warranty 1 yr.

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)24.43
Ship length (cm)41.61
Ship width (cm)26.67
HS code8501406040
Country of OriginMX

Product Details:

    • Starting Type: CAP START IND RUN
    • KVA Code: J
    • Drive End Bearing: BALL
    • IP Code: 22
    • Opposite End Bearing: BALL
    • Drive End Bearing Size: 6203
    • Opposite End Bearing Size: 6203

Product Variants

ProductModelVoltageFull Load AmpsHpPhaseService FactorMounting TypeFrequencyNameplate RpmPrice
MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255 5KCR46JN0087Y115/230V AC3.8-4/1.9-2A1/3 hp11.35Face/Base60 Hz1725 RPM€933.52
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055Y115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face/Base50/60 Hz1725 RPM€841.44
MARATHON MOTORS 5KCR46MN0093 General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKQ 1K128 / E265 5KCR46MN0093115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face60 Hz1725 RPM€814.28
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055X115/230V AC5.6-5.8/2.8-2.9A1/2 hp11.25Face/Base60 Hz1725 RPM€956.68
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099X115/230V AC8.8-9/4.4-4.5A3/4 hp11.25Face/Base50/60 Hz1725 RPM€1,116.48
MARATHON MOTORS 5KCR49UN0107 General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKX 1K134 / EG283 5KCR49UN0107115/230V AC11.4-11.8/5.7-5.9A1 hp11.15Face60 Hz1725 RPM€1,031.58
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106X115/230V AC11.4-11.8/5.7-5.9A1 hp11.15Face/Base60 Hz1725 RPM€1,060.60
