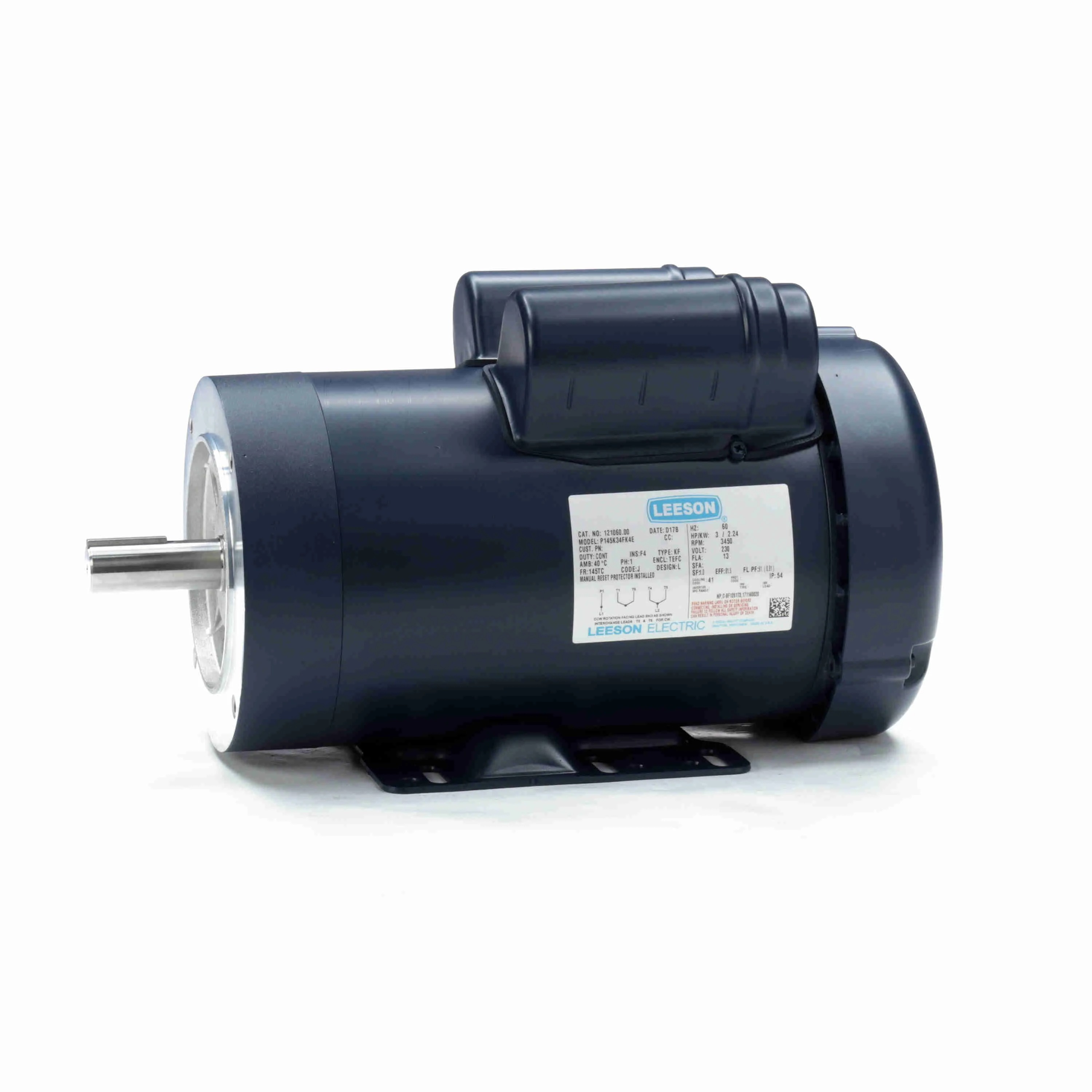

LEESON 121060.00 P145K34FK4E Single Phase Motor | AJ2RHA P145K34FK4E

LEESON 121060.00 P145K34FK4E General Purpose Motor, 3 HP, 1 Phase, 60 Hz, 230V, 3600 RPM

Item: AJ2RHAModel: 121060.00Cross Ref: 36X922 / P145K34FK4E
Check Availability
In Stock

Get it by Tuesday, Apr 7

€1,098.47 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 13A
Code J
Design Code L
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 81.5%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Tefc
Frame 145TC
Frame Length 8 1/2"
Frame Material Rolled Steel
Frame Type 145TC
Frequency 60 Hz
Full Load Amps 13A
Grease Type Polyrex EM
Height 10 22/25"
Hp 3 hp
Insulation Class Class F
Ip Code IP54
Kva Code J
Kw 2.2 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Run
Nameplate Rpm 3600 RPM
Nema Design J, L
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 2.24 kW
Packaging B
Phase 1
Power Factor 91
Product Datasheet leeson-121060-00.pdf
Resistance Main 0.52 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Starting Method Across The Line
Thermal Protection Manual
Type KF
Voltage 230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 24.3
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 81.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 080033
    • Winding: K632129
    • GROUP: 2
    • Paint: VERIFY

Documentation:

Datasheet

Product Variants

ProductModelVoltageNameplate RpmHpFull Load AmpsService FactorMotor TypeMounting TypeFramePrice
LEESON 131631.00 P184C17FK9C Single Phase Motor | AJ2RUA P184C17FK9C 131631.00115/208-230V1800 RPM3 hp33.6/16.8A1Capacitor Start/RunRigid Base184TC€1,105.14
LEESON 131632.00 P184K34FK2D Single Phase Motor | AJ2RUB P184K34FK2D 131632.00230V3600 RPM5 hp19.8A1.15Capacitor Start/RunRigid Base184TC€1,303.56
LEESON 131633.00 P184K17FK11C Single Phase Motor | AJ2RUC P184K17FK11C 131633.00230V1800 RPM5 hp23A1Capacitor Start/RunRigid Base184TC€2,474.27
LEESON 131857.00 P14K17FK14 B Washdown Motor | AJ2RUU P14K17FK14 B 131857.00230V1800 RPM3 hp12.8A1.15Capacitor Start/RunRigid Base184TC€1,120.42
LEESON 140678.00 C215K17FK4A Single Phase Motor | AJ2RZT C215K17FK4A 140678.00230V1800 RPM10 hp40A1.15Capacitor Start/RunRigid Base215TC€2,161.10
LEESON 140694.00 C213K34FK1 B General Purpose Motor | AJ2RZY C213K34FK1 B 140694.00208-230V3600 RPM7 1/2 hp32-36A1Capacitor Start/RunRigid Base213TC€1,935.06
LEESON 140695.00 C215K34FK1 A Single Phase Motor | AJ2RZZ C215K34FK1 A 140695.00208-230V3600 RPM10 hp41.5-44A1Capacitor Start/RunRigid Base215TC€2,385.41
