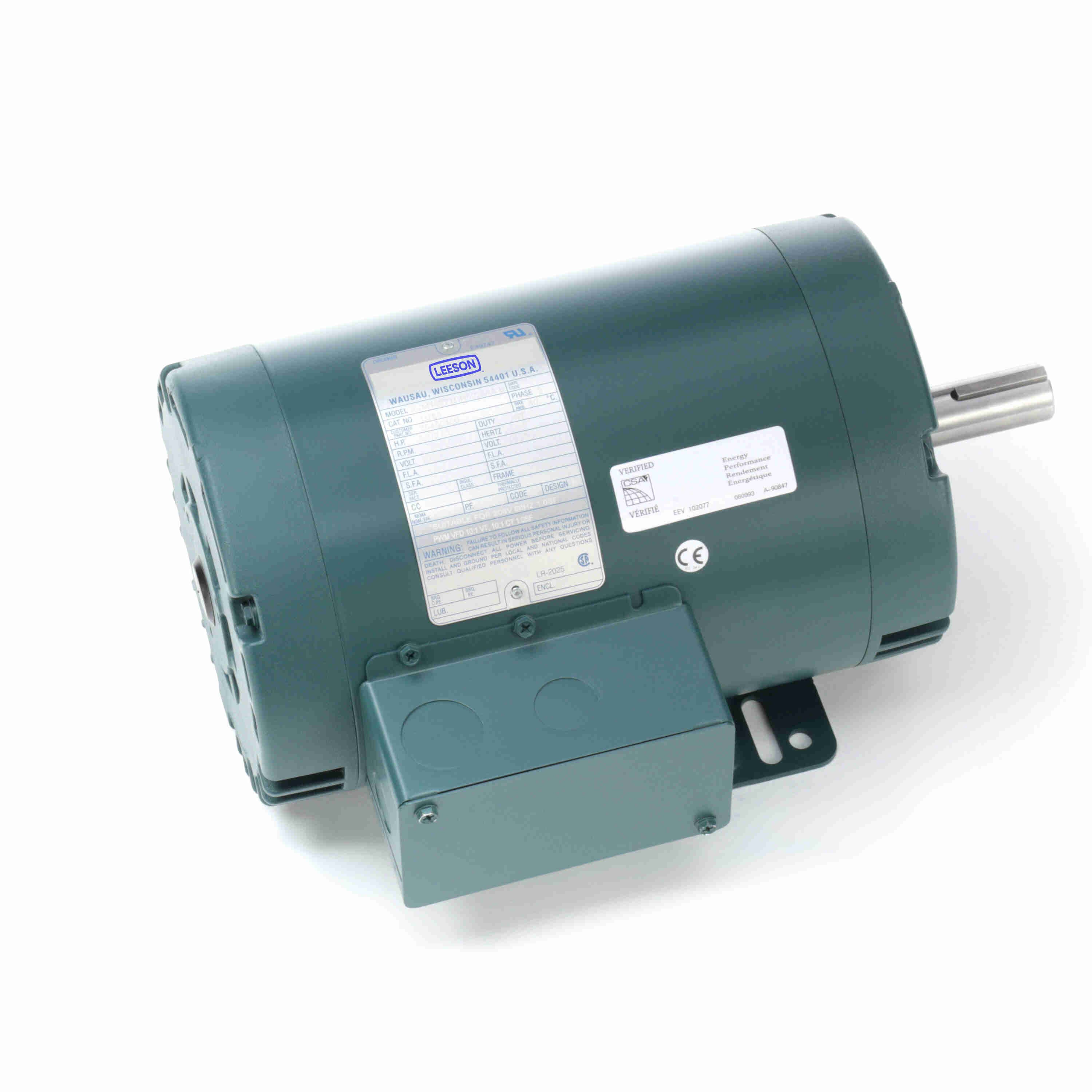

LEESON 145TTDR6028 U759 / 145TTDR6028AA General Purpose Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Dec 23
€840.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | NEMA Premium |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.8/2.4A |
| Full Load Amps @ 50hz | 4.8/2.4A |
| Hp | 1 1/2 hp |
| Hp @ 50hz | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | yes |
| Length Less Shaft | 10 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 5/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Weight | 48 lbs. |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
449TSTDN14005 | Open Dripproof | 460V AC | 3575 RPM | 500 hp | 50/60 Hz | 546A | Three Phase | 449TS | €60,964.57 | |
 |
056T17D3301 | Open Dripproof | 208-230/460V AC | 1725 RPM | 1 hp | 50/60 Hz | 3.4-3.6/1.8A | Three Phase | 56HZ | €949.07 | |
 |
145TTDR5401 | Open Dripproof | 230/460V AC | 850 RPM | 3/4 hp | 50/60 Hz | 4/2A | Three Phase | 145T | €862.48 | |
 |
056T17D3303 | Open Dripproof | 208-230/460V AC | 1725 RPM | 2 hp | 50/60 Hz | 6.2/3.1A | Three Phase | 56HZ | €944.57 | |
 |
143TTDR6052 | Open Dripproof | 230/460V AC | 1760 RPM | 1 hp | 50/60 Hz | 3/1.5A | Three Phase | 143T | €861.82 | |
 |
145TTDR6126 | Open Dripproof | 230/460V AC | 1755 RPM | 1 1/2 hp | 50/60 Hz | 2.2/4.4A | Three Phase | 145T | €728.76 | |
 |
145TTDR6132 | Open Dripproof | 230/460V AC | 1750 RPM | 2 hp | 50/60 Hz | 6/3A | Three Phase | 145T | €1,158.42 |
