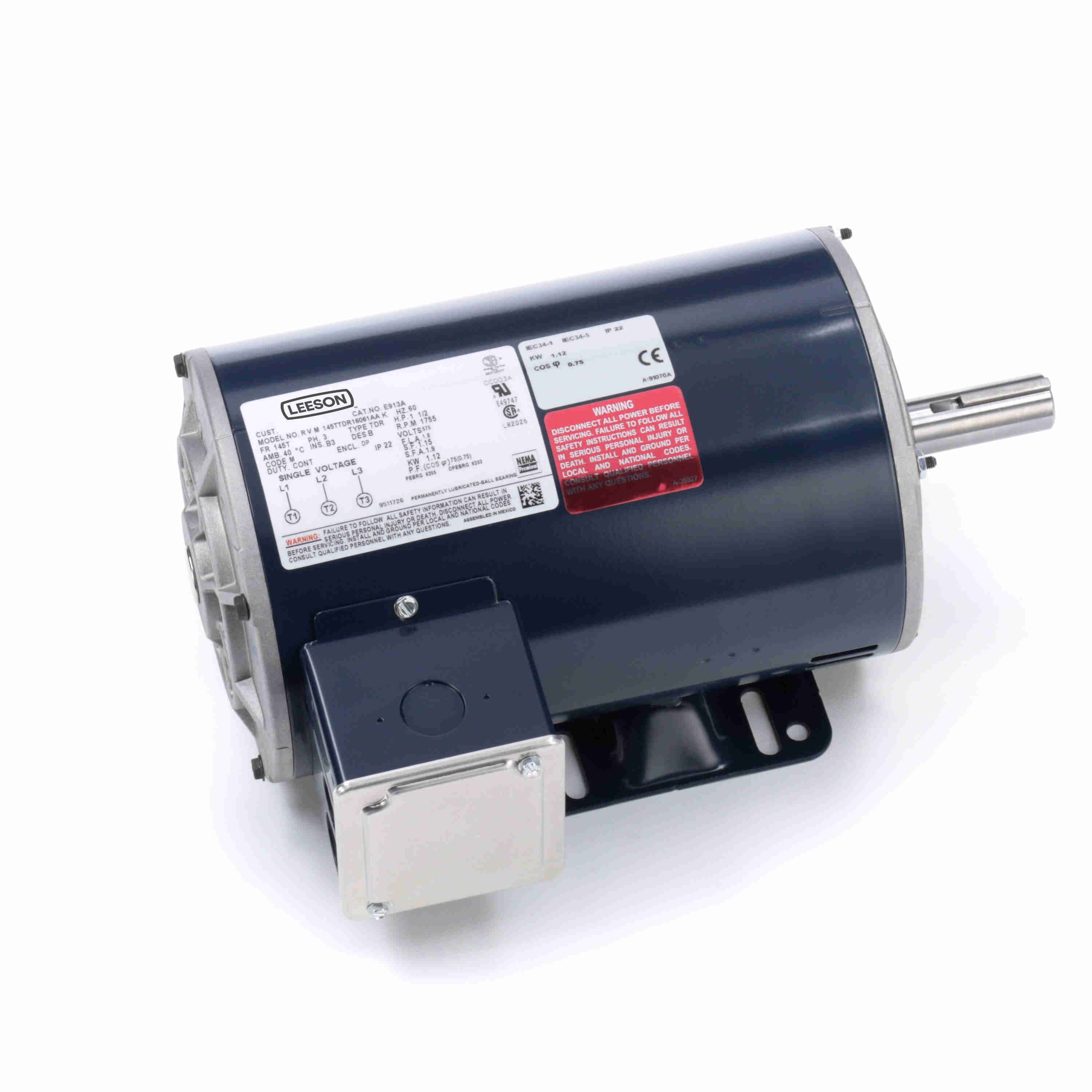

LEESON 145TTDR16061 145TTDR16061AA / E913A General Purpose General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 575V, 1800 RPM
Get it by Monday, Apr 6
5.00% off
€913.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | NEMA Premium |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8A |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 10 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 13" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Voltage | 575V AC |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - E913 / 145TTDR5640
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
449TSTDN14005 | Open Dripproof | 460V AC | 3575 RPM | 500 hp | 50/60 Hz | 546A | Three Phase | 449TS | €60,964.57 | |
 |
184TTDW16038 | Open Dripproof | 230/460V AC | 1755 RPM | 5 hp | 50/60 Hz | 12.6/6.3A | Three Phase | 184T | €1,374.46 | |
 |
449TSTDN16005 | Open Dripproof | 460V AC | 3572 RPM | 500 hp | 50/60 Hz | 538A | Three Phase | 449TS | €60,162.65 | |
 |
254TTDC6003 | Dripproof | 575V AC | 3600 RPM | 20 hp | 60 Hz | 18.4A | Squirrel Cage Inverter Rated | 254T | €3,455.17 | |
 |
213TTDC6079 | Dripproof | 575V AC | 1200 RPM | 3 hp | 60 Hz | 3.6A | Squirrel Cage Inverter Rated | 213T | €1,945.42 |
