LEESON 048C17D2029 48C17D2029K / S111 General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€377.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 59.5% |
| Enclosure Type | Open Dripproof |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7/3.5A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Overall Length | 9 5/16" |
| Phase | 1 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Frequency | Voltage | Hp | Full Load Amps | Phase | Service Factor | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

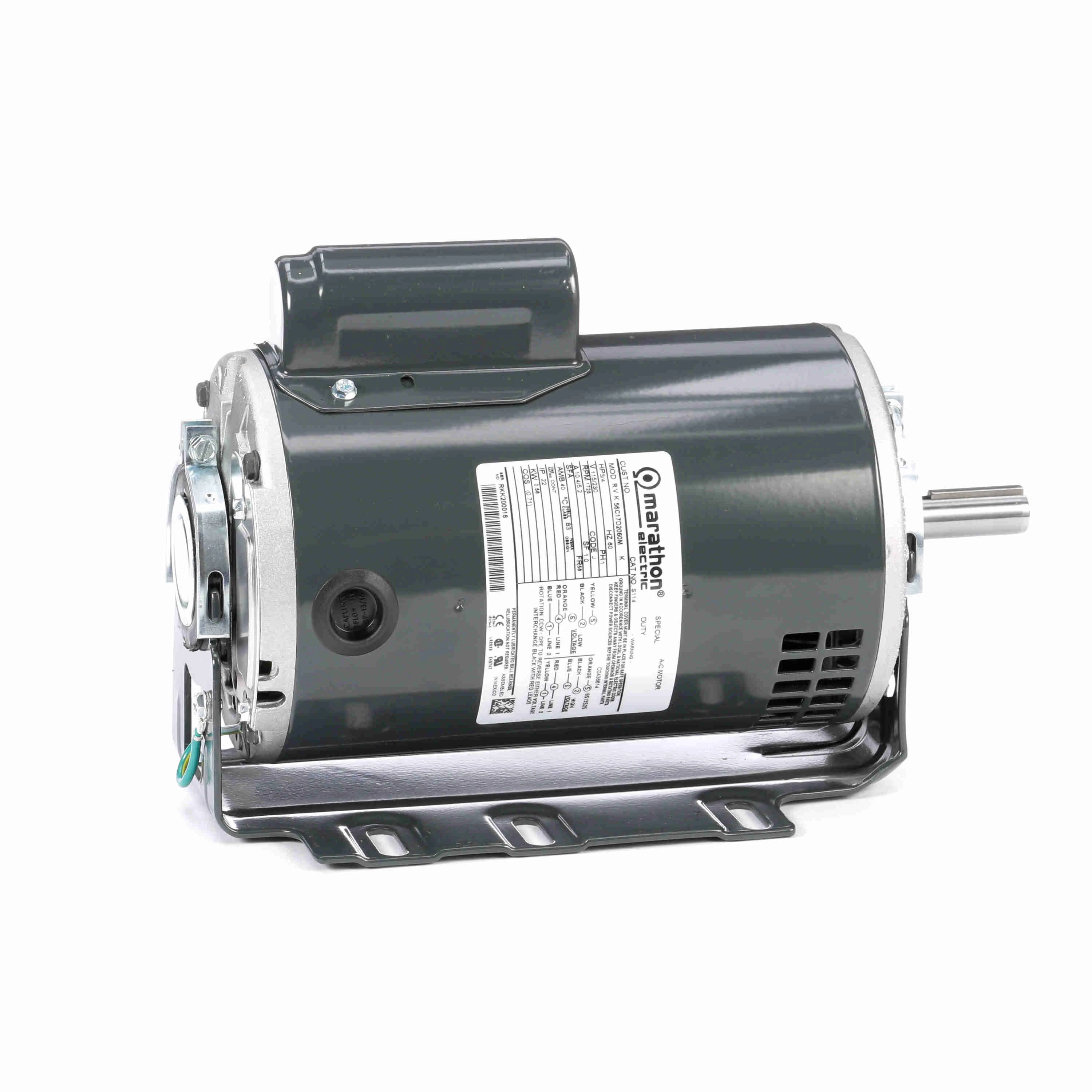

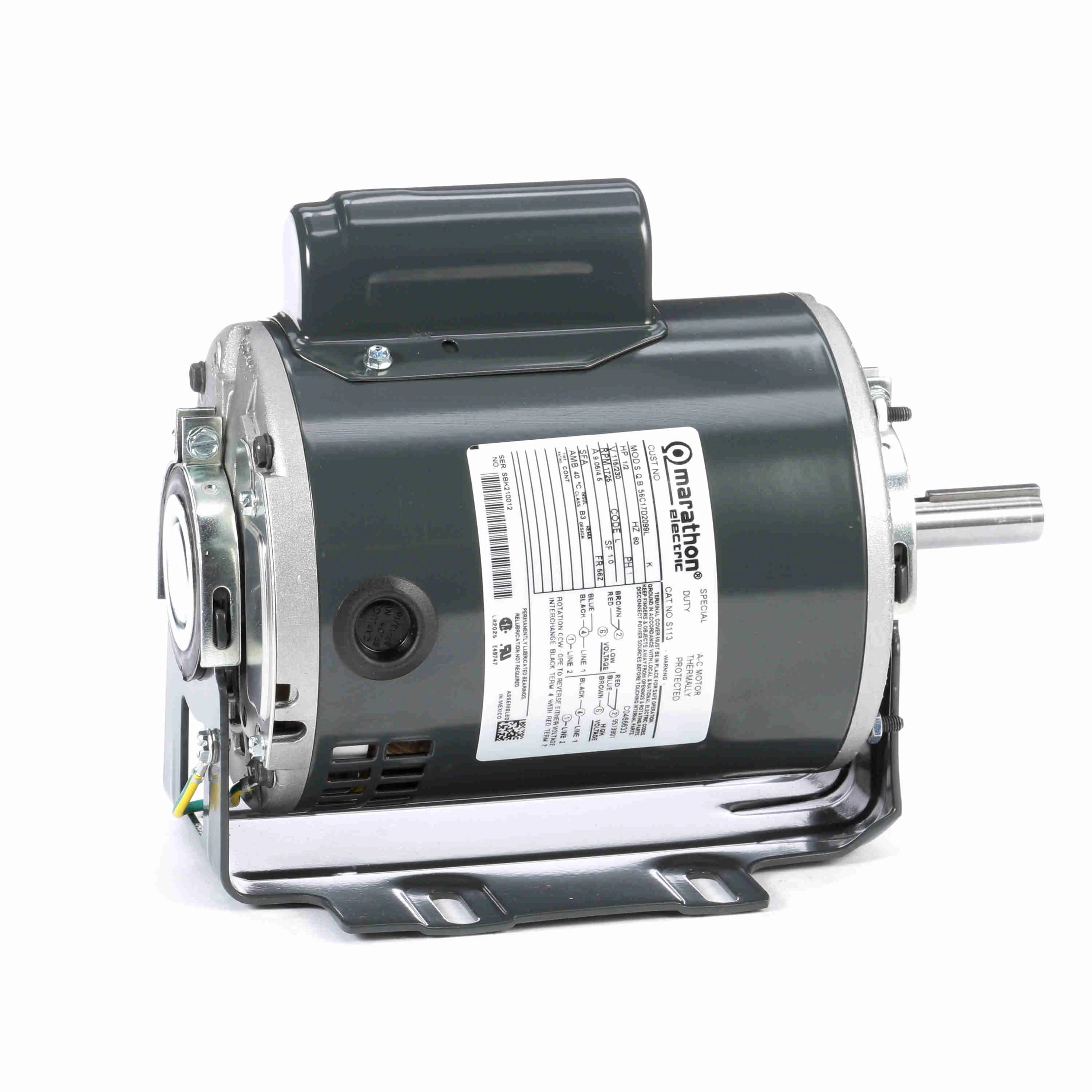

5KCR46JN0087Y | 60 Hz | 115/230V AC | 1/3 hp | 3.8-4/1.9-2A | 1 | 1.35 | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 60 Hz | 115/230V AC | 3/4 hp | 8.8-9/4.4-4.5A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face, Base | Capacitor Start, Run | €1,060.60 |
