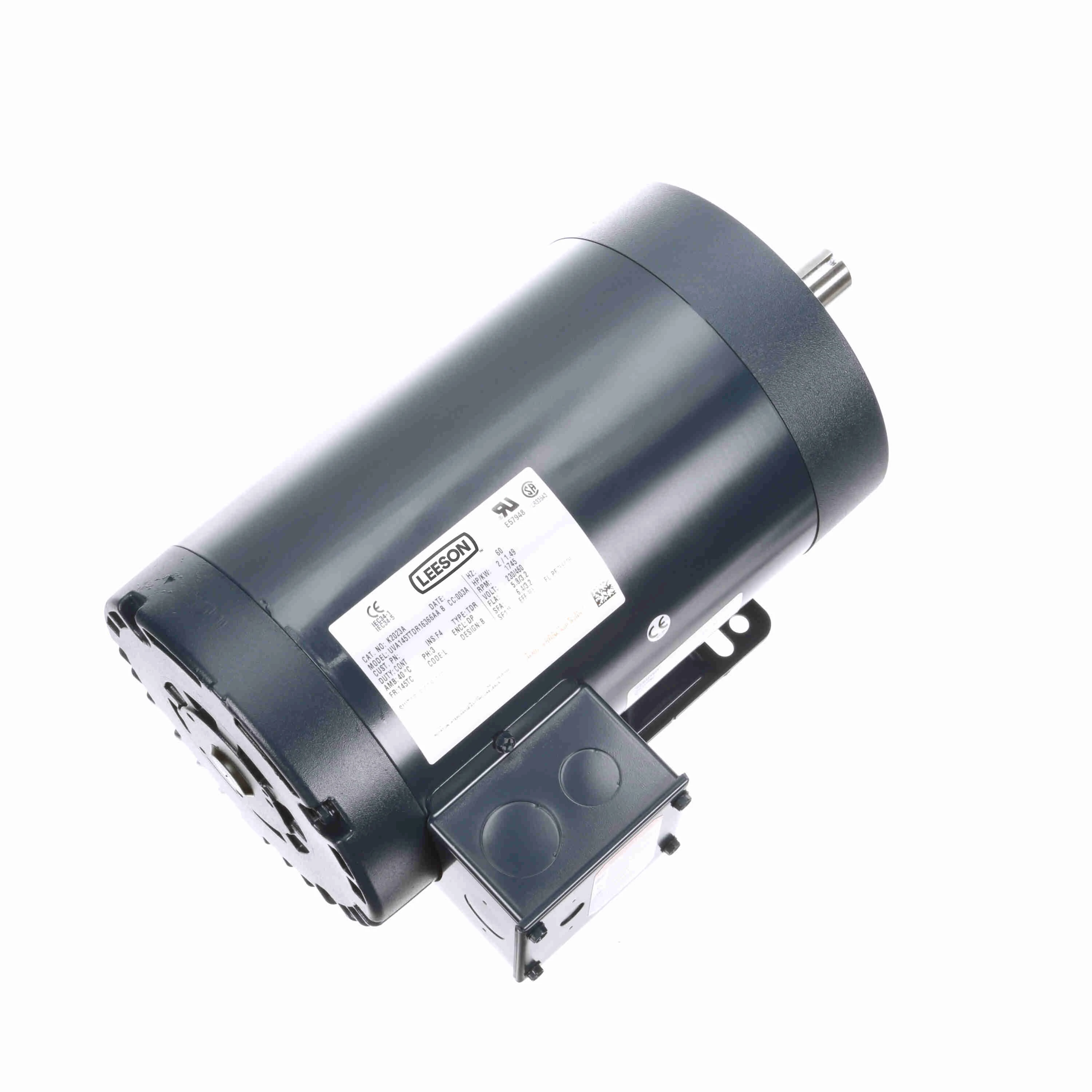

LEESON 145TTDR16366 145TTDR16366AA / K2023A General Purpose Motor, 2 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM, 145TC Frame
Get it by Monday, Aug 17
€917.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| A | 6-6.4/3A |
| Ambient | 40 |
| Drive End Bearing Size | 6205 |
| Duty Cycle | Continuous |
| Enclosure | DP |
| Frame | 145TC |
| Hp | 2 hp |
| Insulation Class | Class B |
| Kva Code | L |
| Mounting | Rigid C |
| Nema Design | B |
| Opposite End Bearing Size | 6203 |
| Phase | 3 |
| Sf | 1.15 |
| Speed | 1800 RPM |
| Starting Type | Across The Line |
| Voltage | 208-230V/460V |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 27 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
