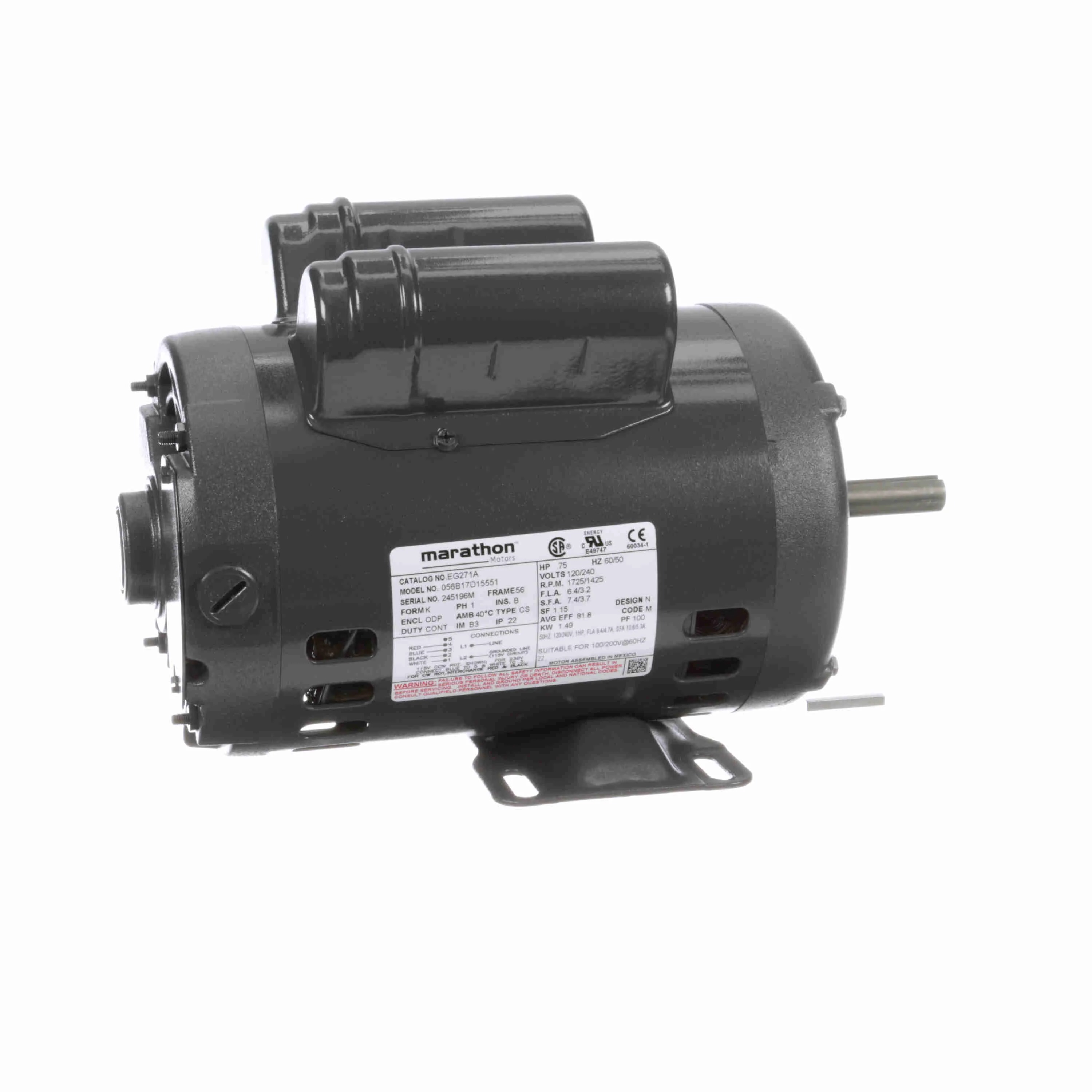

LEESON 056B17D15551 56B17D15551A / EG271A General Purpose Motor, 0.75 HP, 1 Phase, 60/50 Hz, 120/240 and 120/240V, 1800 and 1500 RPM
Get it by Tuesday, Apr 7
5.00% off
€1,075.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 6.4/3.2A |
| Full Load Amps @ 50hz | 6.4/3.2A |
| Hp | 3/4 hp |
| Hp @ 50hz | 3/4 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 81.8% |
| Number Of Speeds | 1 |
| Overall Length | 13 1/8" |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Standards | Ce, Csa, Ul Recognized |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 120/240V AC |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 39.7 |
| Ship width (cm) | 25.1 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Service Factor | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D14CPA2P49 | Open Air Over | 115/230V AC | 1725 RPM | 1/4 hp | 3.1/1.5A | Cradle Base | 1.35 | 1 | €415.76 | |
|
D34CP2PH9 | Open Dripproof | 115/230V AC | 1725 RPM | 3/4 hp | 7/3.5A | Cradle Base | 1.25 | Single | €529.05 | |
 |
D1CP2PCR | Open Dripproof | 115/230V AC | 1725 RPM | 1 hp | 8.8/4.4A | Face | 1.15 | Single | €939.62 | |
|
D13CP2PCR | Open Dripproof | 115/230V AC | 1725 RPM | 1/3 hp | 3.8/1.9A | Face | 1.35 | Single | €582.09 | |
 |
D32CPM1PH | Open Dripproof | 115/230V AC | 3450 RPM | 1 1/2 hp | 13.3/6.7A | Rigid Base | 1.15 | Single | €911.49 | |
|
D34CP3PH | Open Dripproof | 115/230V AC | 1140 RPM | 3/4 hp | 7.4/3.7A | Rigid Base | 1.15 | 1 | €1,138.38 | |
 |
D34CP2PHC | Open Dripproof | 115/230V AC | 1725 RPM | 3/4 hp | 7/3.5A | Rigid Base | 1.25 | 1 | €903.14 |
