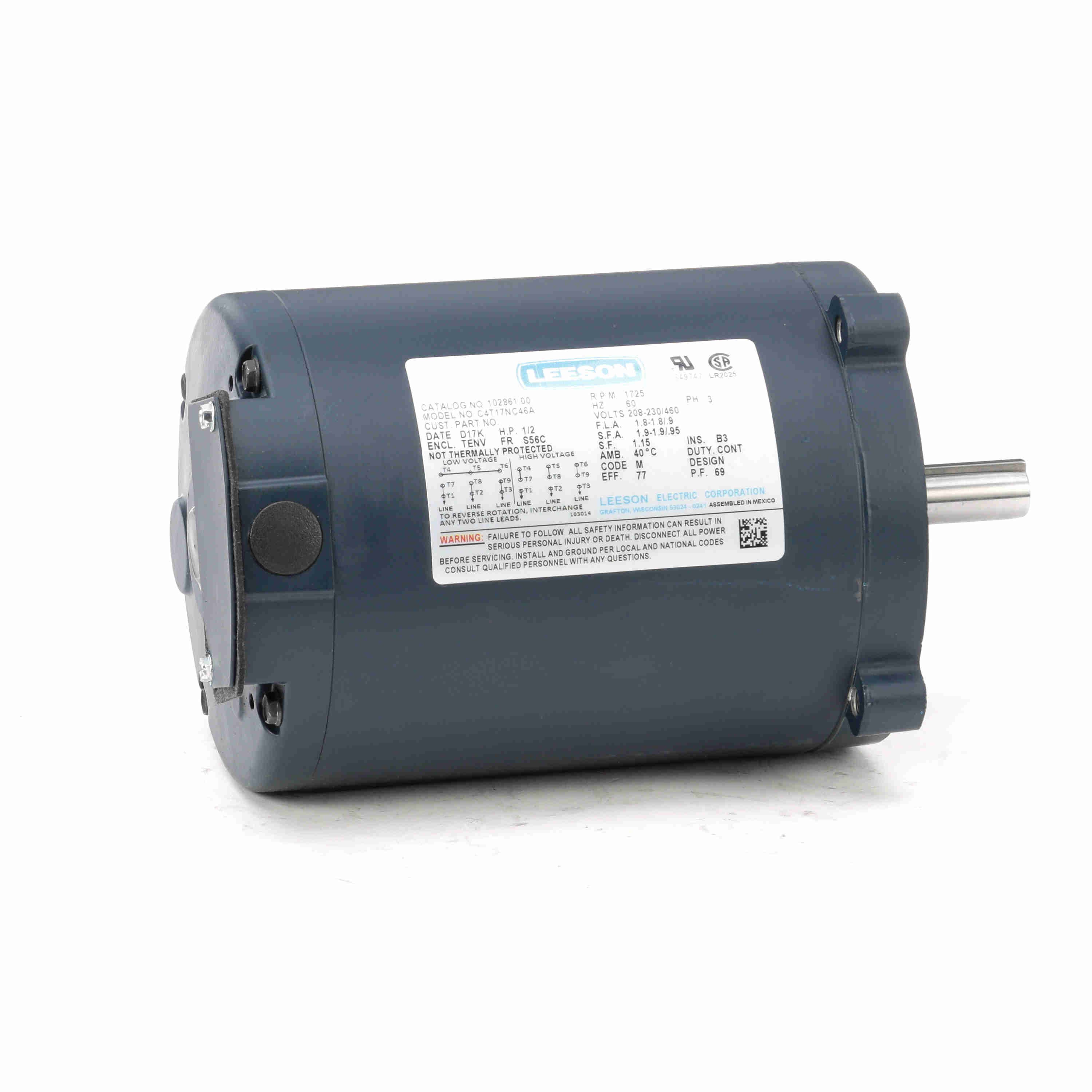

LEESON 102861.00 C4T17NC46A General Purpose Motor, 0.50 HP, 60 Hz, 230/460V, 1800 RPM
0.37 kW
S56C
Get it by Tuesday, Sep 1
€489.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Code | M |
| Composition | Steel |
| Conduit Box Position | F1 |
| Ct Speed Range | 2:1 |
| Duty Cycle | Continuous |
| Electrical Phase | 3 |
| Enclosure | Tenv |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors, Three Phase C Face Series |
| Frame | S56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8/0.9A |
| Hp | 1/2 hp |
| Input Voltage | 230/460V |
| Insulation | B |
| Insulation Class | Class B |
| Max. Hp | 1/2" |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mount Style | C-Face |
| Mounting Type | C Face Less Base , C Face, Footless |
| Nameplate Speed | 1800 RPM |
| Nema Design | M |
| Nominal Voltage | 208/240/480V AC |
| Output Kw | 0.37 kW |
| Overall Length | 10.06" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 69 |
| Product Datasheet | leeson-102861-00.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Speed | 1725 RPM , 1800 RPM |
| Type | TN |
| Voltage | 208-230/460V AC , 208-230V/460V , 460V/208-230V |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
