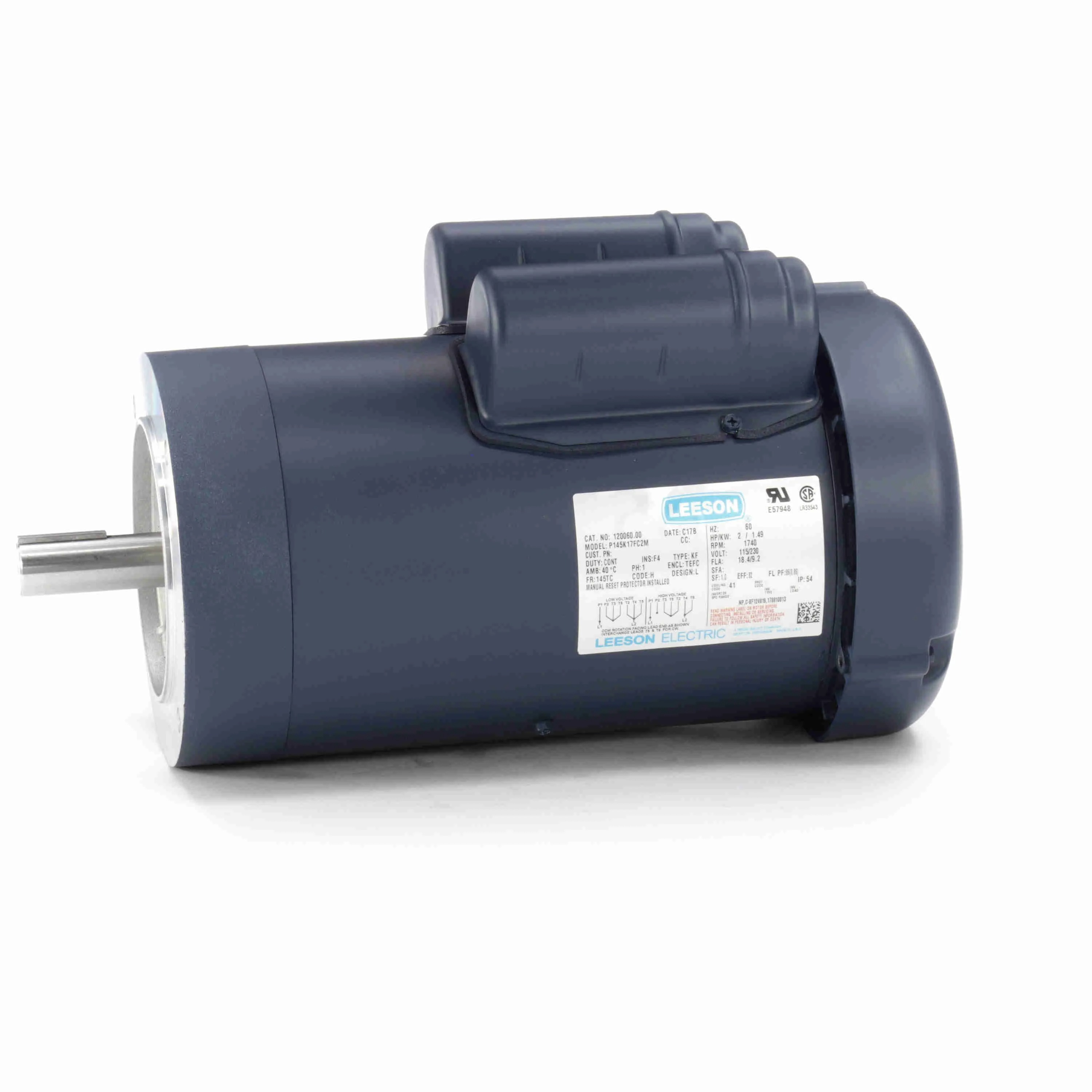

LEESON 120060.00 P145K17FC2M Single Phase Motor | AJ2REX P145K17FC2M

LEESON 120060.00 P145K17FC2M General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2REXModel: 120060.00Cross Ref: 36X817 / P145K17FC2M
Check Availability
In Stock

Get it by Friday, May 22

€1,134.17 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 18.4/9.2A
Code H
Conduit Box Position F1
Design Code L
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 82%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Tefc
Frame 145TC
Frame Length 8 1/2"
Frame Material Rolled Steel
Frame Type 145TC
Frequency 60 Hz
Full Load Amps 18.4/9.2A
Grease Type Polyrex EM
Height 10 22/25"
Hp 2 hp
Insulation Class Class F
Ip Code IP54
Kva Code H
Kw 1.5 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Rpm 1740 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Run
Mounting Type C Face, Footless
Nameplate Rpm 1800 RPM
Nema Design H, L
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 1.49 kW
Packaging B
Phase 1
Power Factor 86
Rpm 1700-1800 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Starting Method Across The Line
Thermal Protection Manual
Type KF
Voltage 115-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 82
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 993500
    • Winding: K634271
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
