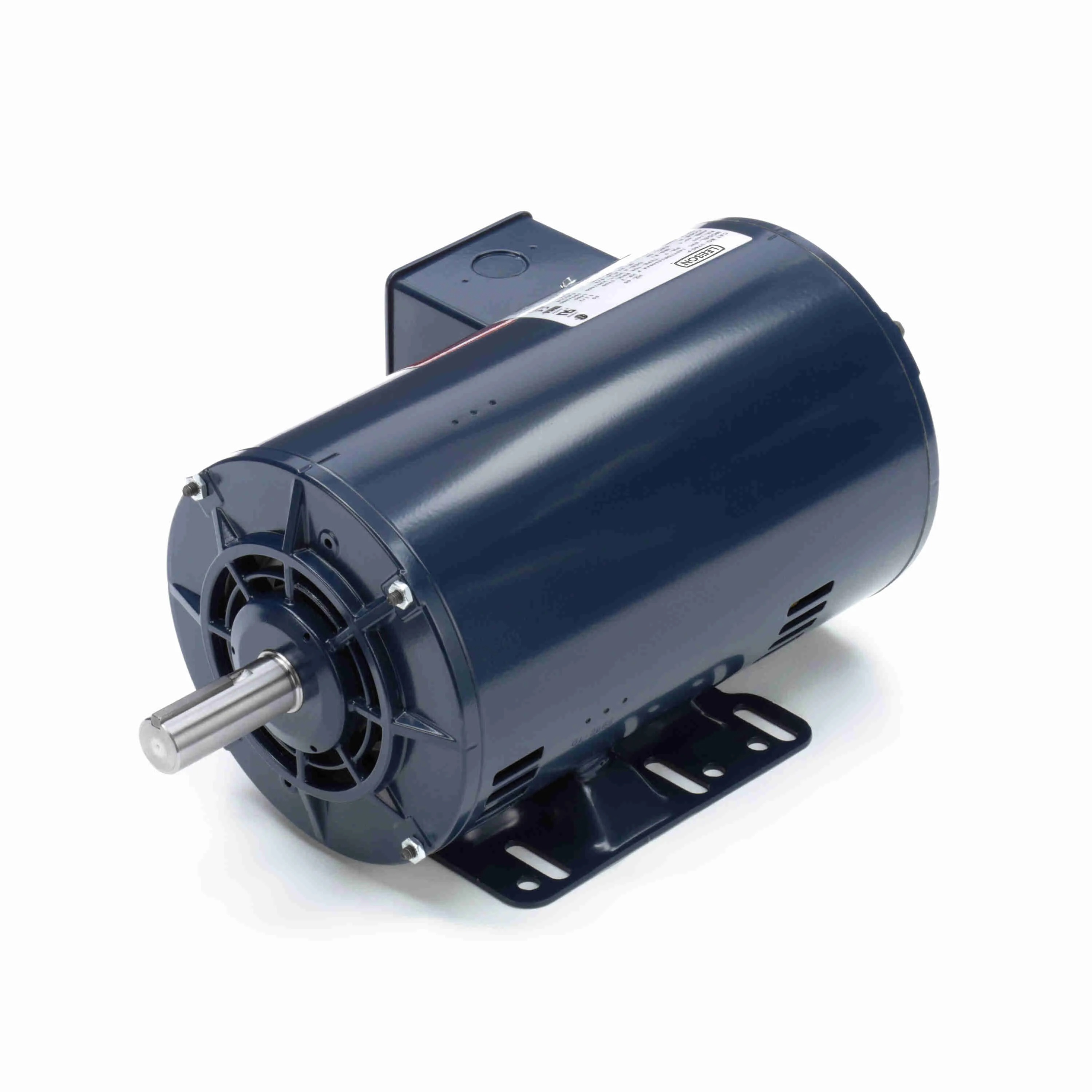

LEESON 145TTDR16349 U760-P / 145TTDR16349AA General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: AJ2LPAModel: 145TTDR16349Cross Ref: 820HY0 / U760-P / 145TTDR16349AA
In Stock
Get it by Tuesday, Dec 23
10.00% off
€1,197.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 6-6.2/3A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Phase | 3 |
| Power | 1.49 kW |
| Service Factor | 1.15 |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Starting Type: LINE OR INVERTER
- KVA Code: N
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6205
- Opposite End Bearing Size: 6203
- Inverter Speed Range: VARIABLE 10:1
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
449TSTDN14005 | Open Dripproof | 460V AC | 3575 RPM | 500 hp | 50/60 Hz | 546A | Three Phase | 449TS | €60,964.57 | |
 |
056T17D3301 | Open Dripproof | 208-230/460V AC | 1725 RPM | 1 hp | 50/60 Hz | 3.4-3.6/1.8A | Three Phase | 56HZ | €949.07 | |
 |
145TTDR5401 | Open Dripproof | 230/460V AC | 850 RPM | 3/4 hp | 50/60 Hz | 4/2A | Three Phase | 145T | €862.48 | |
 |
056T17D3303 | Open Dripproof | 208-230/460V AC | 1725 RPM | 2 hp | 50/60 Hz | 6.2/3.1A | Three Phase | 56HZ | €944.57 | |
 |
143TTDR6052 | Open Dripproof | 230/460V AC | 1760 RPM | 1 hp | 50/60 Hz | 3/1.5A | Three Phase | 143T | €861.82 | |
 |
145TTDR6126 | Open Dripproof | 230/460V AC | 1755 RPM | 1 1/2 hp | 50/60 Hz | 2.2/4.4A | Three Phase | 145T | €728.76 | |
 |
145TTDR6132 | Open Dripproof | 230/460V AC | 1750 RPM | 2 hp | 50/60 Hz | 6/3A | Three Phase | 145T | €1,158.42 |
