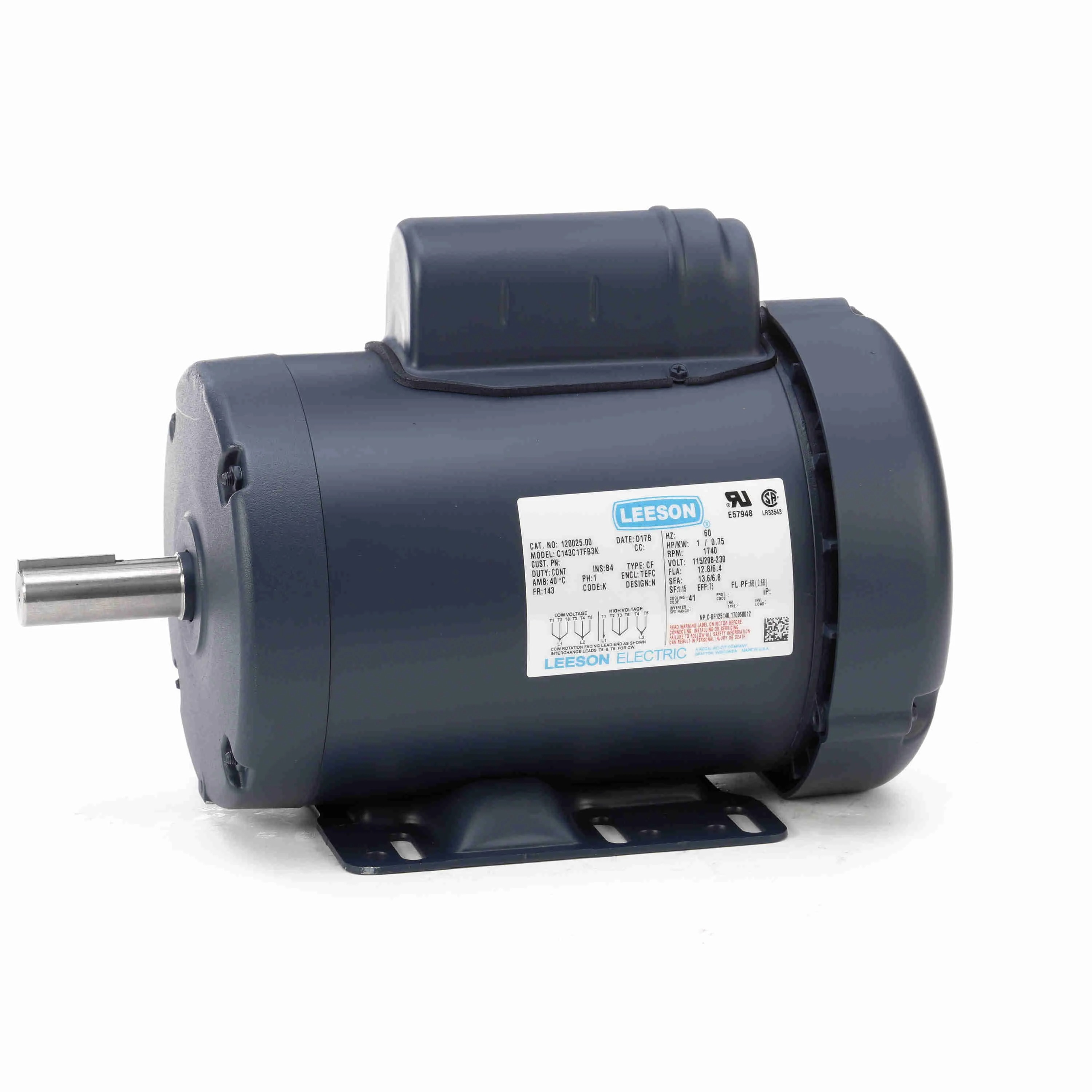

LEESON 120025.00 C143C17FB3K Single Phase Motor | AJ2REQ C143C17FB3K

LEESON 120025.00 C143C17FB3K General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2REQModel: 120025.00Cross Ref: 807AP8 / C143C17FB3K
Check Availability
In Stock

Get it by Tuesday, Dec 23

€756.81
10.00% off
€681.13 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 104°F
Amps 12.8/6.4A
Base Type Rigid Base
Bearing Type Ball
Code K
Design Code No
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 75%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 143
Frame Length 7"
Frame Material Rolled Steel
Frame Type 143T
Frequency 60 Hz
Full Load Amps 12.8/6.4A
Grease Type Polyrex EM
Height 10 22/25"
Hp 1 hp
Hz 60 Hz
Ins. Class Class B
Insulation Class Class B
Ip Code IP43
Kva Code K
Kw 0.75 kW
Length 14 11/25"
Lubrication Polyrex EM
Max. Ambient Temp. 104°F
Max. Rpm 1740 RPM
Motor Application General Application
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Service Factor 1.15
Motor Shaft Rotation Selective Counter Clockwise
Motor Shaft Rotation CCW
Motor Type Capacitor Start
Mounting Type Rigid Base
Nameplate Rpm 1140 RPM
Nema Design N
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 75%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.75 kW
Overall Length 12 15/16"
Packaging B
Phase 1
Power Factor 68
Resistance Main 1.9 ohms
Rpm 1700-1800 RPM
Rpm Range 1101-1200 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Standards Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type CF
Usable @ 208v Yes
Voltage 115/208-230V
Weight 33 lbs.
Width 10 11/25"

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 75
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 993500
    • Winding: C634256
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
    • S. F Amps: 13.6 / 6.8

Product Variants

ProductModelVoltageNameplate RpmHpFull Load AmpsMounting TypeMotor TypeService FactorFramePrice
LEESON 092116.00 C42C17FB1C Single Phase Motor | AJ2PEG C42C17FB1C 092116.00115/208-230V1800 RPM17/100 hp4.2/2.1ARigid BaseCapacitor Start1.1542€461.70
LEESON 100955.00 C4C17FB3F Single Phase Motor | AJ2PJX C4C17FB3F 100955.00115/208-230V1800 RPM33/100 hp6.6/2.9-3.3ARigid BaseCapacitor Start1.1548€422.66
LEESON 102013.00 C4C11FB3D Single Phase Motor | AJ2PMR C4C11FB3D 102013.00115/208-230V1200 RPM17/100 hp3.8/1.8-1.9ARigid BaseCapacitor Start1.1548€550.91
LEESON 102016.00 C4C34FB10C Single Phase Motor | AJ2PMV C4C34FB10C 102016.00115/208-230V3600 RPM33/100 hp5.6/2.5-2.8ARigid BaseCapacitor Start1.1548€571.76
LEESON 102018.00 M4C17FB22C Single Phase Motor | AJ2PMX M4C17FB22C 102018.00115/208-230V1800 RPM33/100 hp6.6/2.9-3.3ARigid BaseCapacitor Start1.1548€485.11
LEESON 102020.00 C4C34FB9C Single Phase Motor | AJ2PMZ C4C34FB9C 102020.00115/208-230V3600 RPM1/2 hp7/3.4-3.5ARigid BaseCapacitor Start1.1548€415.41
LEESON 110013.00 C6C17FB2K Single Phase Motor | AJ2PZH C6C17FB2K 110013.00115/208-230V1725 RPM3/4 hp10.8/5.4ARigid BaseCapacitor Start/Run1.1556€716.58
