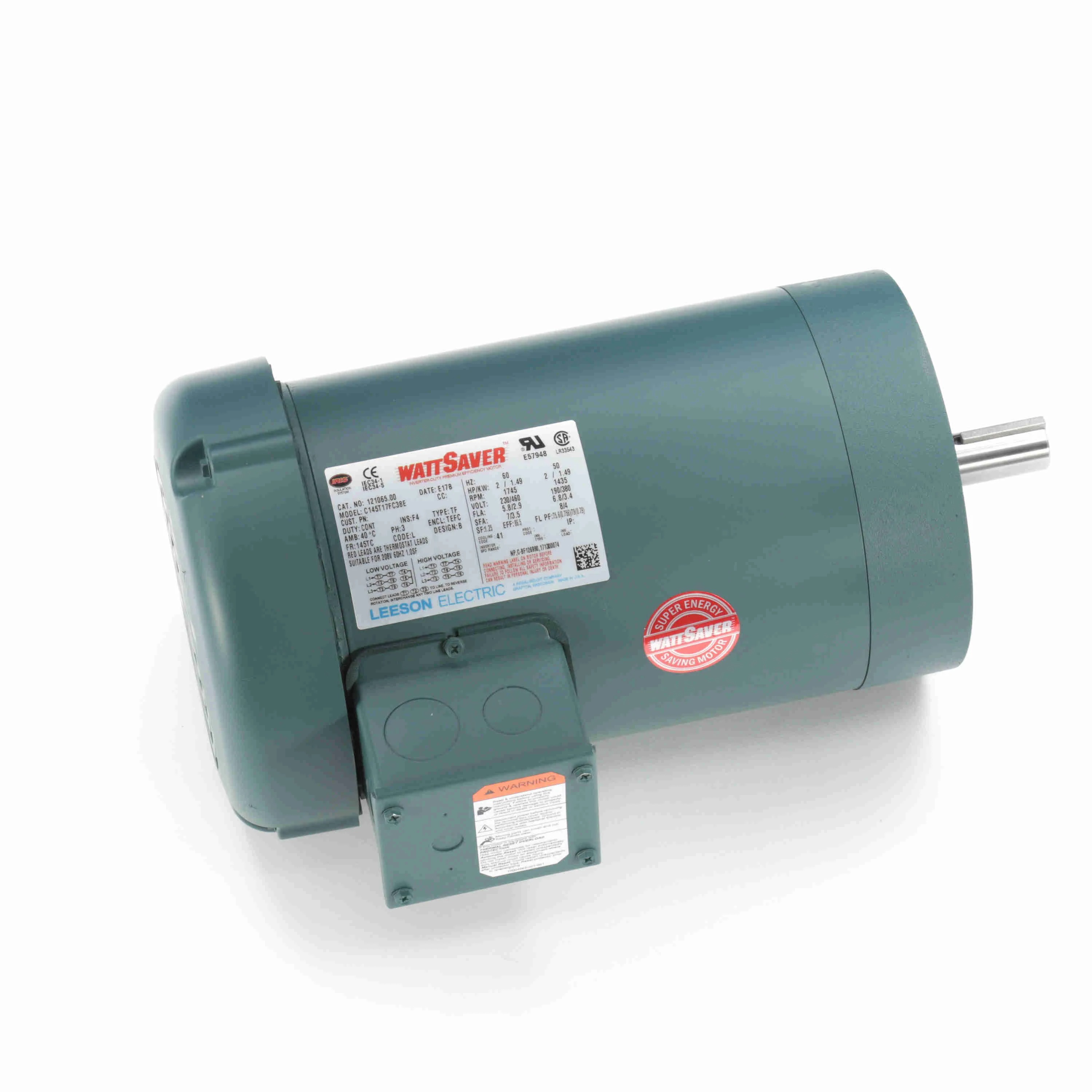

LEESON 121065.00 C145T17FC38E General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Apr 7
5.00% off
€1,332.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 5.8/2.9A |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1745 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6 |
| Product Datasheet | leeson-121065-00.pdf |
| Resistance Main | 6 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G120038.00
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T634340
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 7 / 3.5
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
132596.00 | 230/460V | 1200/1000 RPM | 1 1/2 hp | 60 Hz | 6/3A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €1,223.71 | |
 |
LM16828 | 230/460V | 1800/1500 RPM | 15 hp | 50/60 Hz | 37.5/18.8A | Round | Squirrel Cage Induction Run | 1, 1.25 | €2,411.81 |
