EATON DBU17-40E Expulsion Fuse Refill Unit, 40A, 17.1 kV, 14.4 kV Nominal, Epoxy Tube
40A
14.4kV
Get it by Thursday, Dec 18
€427.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Amps | 40A |
| Fuse Class | Class E |
| Height | 2 1/4" |
| Length | 22 1/2" |
| Max. Voltage | 17.1 kV |
| Notes | Mountings Are No Longer Available For BA Refills, But A Limited Range Of Replacement Fuse Holders Are Still Available. New And Replacement Applications Should Use RBA Fuses That Have Superseded BA Fuses. |
| Type | DBU |
| Voltage | 14.4 kV |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 2 1/4" |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 5.72 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Height | Fuse Class | Mounting Type | Type | Price | |
|---|---|---|---|---|---|---|---|---|
|

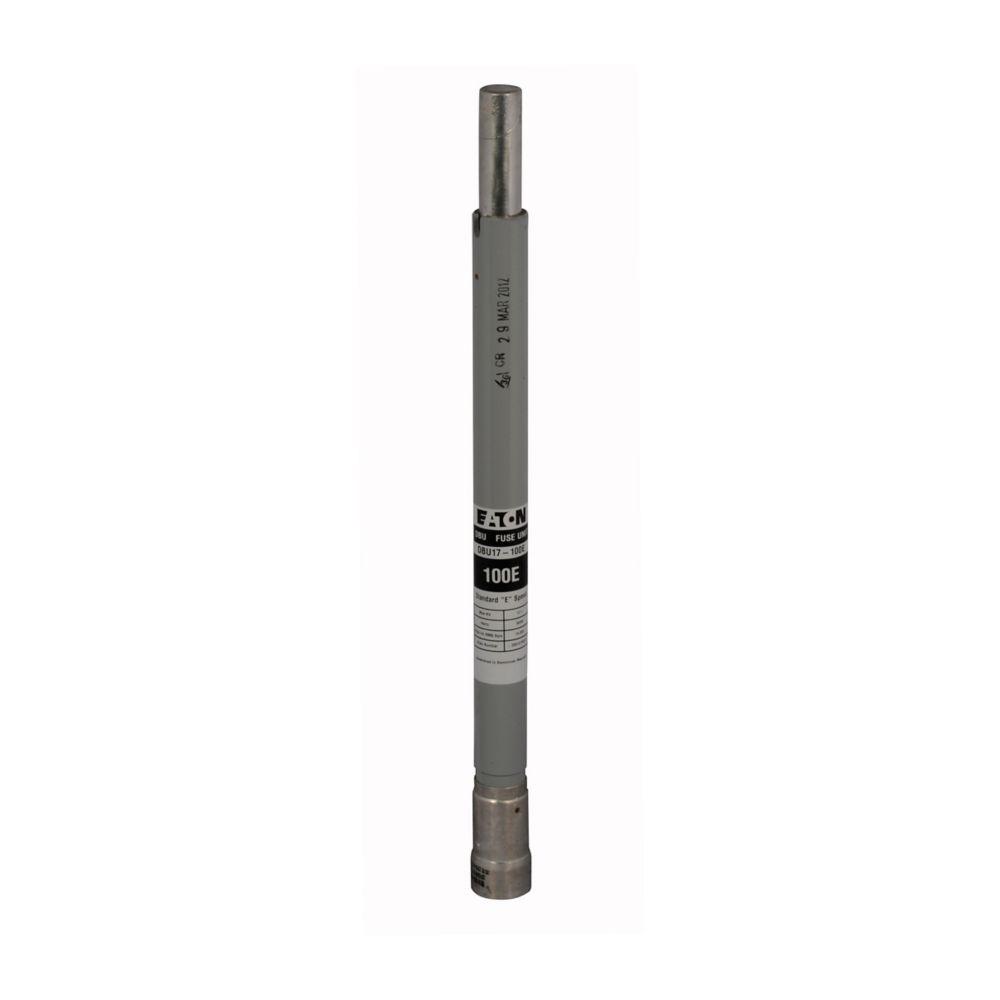

DBU17-100E | 10A | 2 1/4" | Class E | - | DBU | €474.97 | |
 |
DBU17-10K | 10A | 2 1/4" | Class K | - | DBU | €427.55 | |
 |

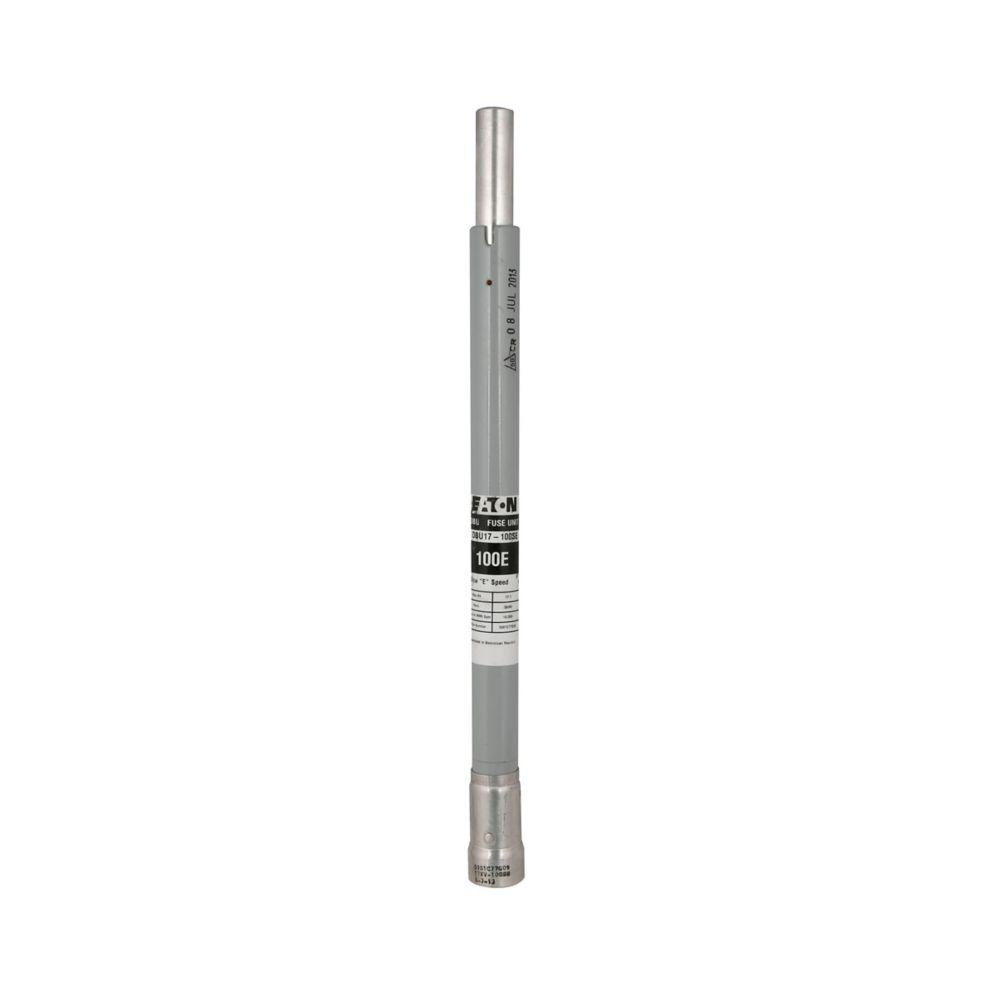

DBU17-100SE | 100A | 2 1/4" | Class Se | - | DBU | €427.55 | |
|
DBU17-13E | 13A | 2 1/4" | Class E | - | DBU | €427.55 | |
|

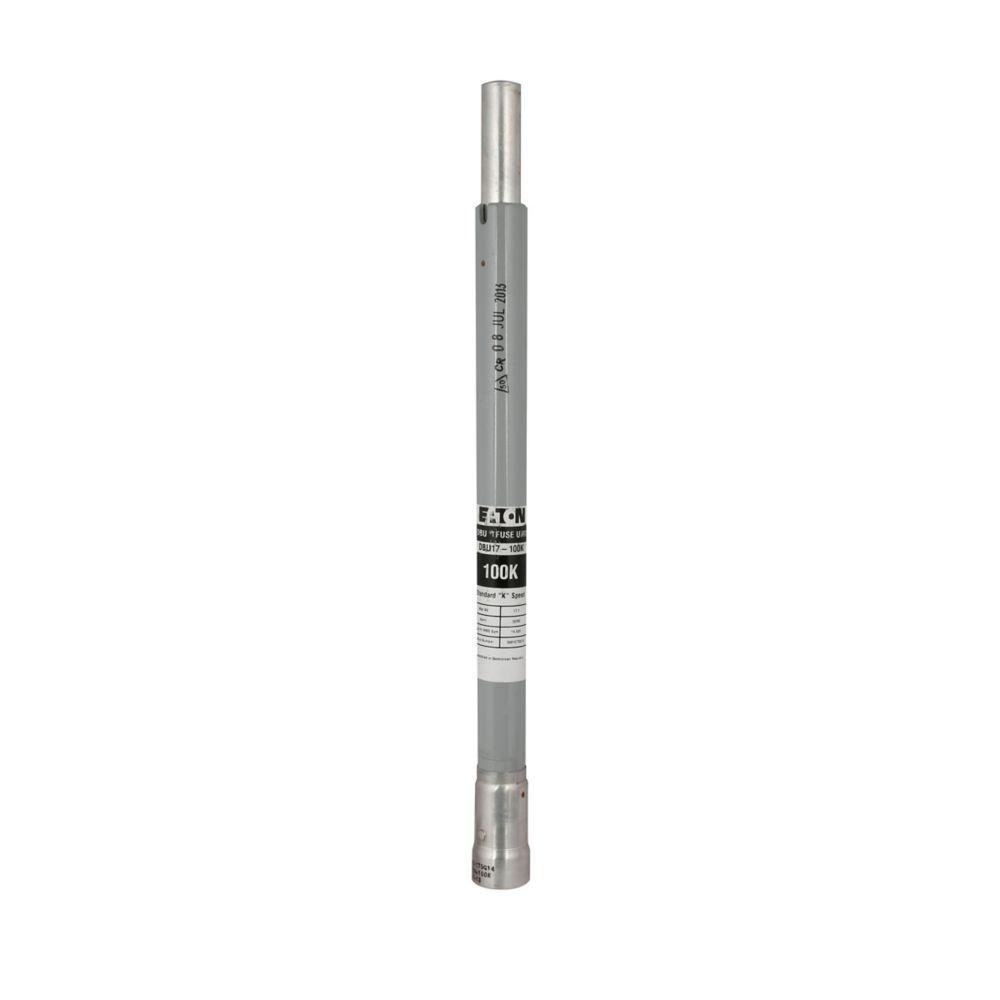

DBU17-100K | 100A | 2 1/4" | Class K | - | DBU | €427.55 | |
 |
DBU17-125E-Q | - | 31 1/2" | - | - | DBU | €505.14 | |
|
DBU17-140K | 140A | 2 1/4" | Class K | - | DBU | €427.55 |
