Osg Milling Inserts

OSG -

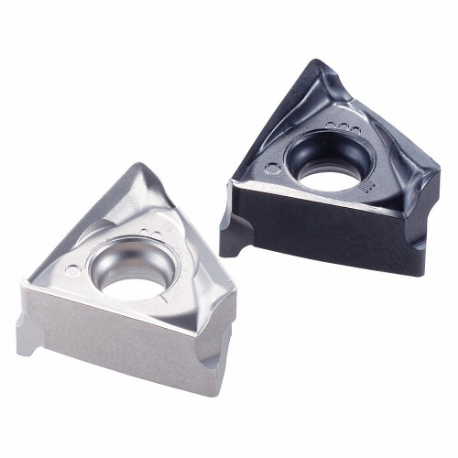

Triangle Indexable Milling Inserts

A

Style	Model	Manufacturer Grade	Primary Material Application	Primary Material Application Iso Code	Finish-machining	Iso Number	Coating Process	Hardened Compatibility	Super Alloy Compatibility	Price
A	7812090	Grade XC1015	Cast Iron	K	Ticn+Al2O3	TNKU120608ER-GR	CVD	No	No	€43.07
A	7825088	Grade XC3030	Steel	P	Ticn+Al2O3	TNKU120608ER-GM	CVD	No	No	€43.07
A	7816091	Grade XC5040	Nickel, Titanium	S	Tin+Tib2	TNKU120608ER-SM	CVD	No	Yes	€51.94
A	7821090	Grade XP1020	Cast Iron	K	TiAlN	TNKU120608ER-GR	PVD	No	No	€43.07
A	7813089	Grade XP2040	Stainless Steel	M	TiAlN	TNKU120608ER-GL	PVD	Yes	No	€43.07
A	7814088	Grade XP3035	Steel	P	TiAlN	TNKU120608ER-GM	PVD	No	No	€41.05

OSG -

Square Indexable Milling Inserts

A

B

C

Style	Model	Thickness	Insert Size	Manufacturer Grade	Cutting Edge Length	Primary Material Application Iso Code	No. Of Edges	Corner Radius	Inscribed Circle	Price
A	7812075	3.97 mm	09T308	Grade XC1015	9.07 mm	K	4	0.8 mm	9.07 mm	€19.91
A	7813074	3.97 mm	09T308	Grade XP2040	9.07 mm	M	4	0.8 mm	9.07 mm	€19.91
B	7812020	3.97 mm	09T308	Grade XC1015	9.52 mm	K	4	0.8 mm	9.52 mm	€22.19
B	7815021	3.97 mm	09T308	Grade XC5035	9.52 mm	M	4	0.8 mm	9.52 mm	€33.70
B	7814020	3.97 mm	09T308	Grade XP3035	9.52 mm	P	4	0.8 mm	9.52 mm	€22.19
B	7825020	3.97 mm	09T308	Grade XC3030	9.52 mm	P	4	0.8 mm	9.52 mm	€22.43
B	7826020	3.97 mm	09T308	Grade XP2025	-	M	4	0.8 mm	9.52 mm	€22.43
B	7816021	3.97 mm	09T308	Grade XC5040	9.52 mm	S	4	0.8 mm	9.52 mm	€33.70
B	7813020	3.97 mm	09T308	Grade XP2040	-	M	4	0.8 mm	9.52 mm	€22.19
A	7814074	3.97 mm	09T308	Grade XP3035	9.07 mm	P	4	0.8 mm	9.07 mm	€19.91
A	7814073	3.97 mm	09T308	Grade XP3035	9.07 mm	P	4	0.8 mm	9.07 mm	€19.91
A	7813073	3.97 mm	09T308	Grade XP2040	9.07 mm	M	4	0.8 mm	9.07 mm	€19.91
A	7811076	3.97 mm	09T308	Grade CK010	9.07 mm	N	4	0.8 mm	9.07 mm	€28.27
A	7816073	3.97 mm	09T308	Grade XC5040	9.07 mm	S	4	0.8 mm	9.07 mm	€33.27
B	7826022	4.76 mm	120410	-	12.7 mm	M	4	1 mm	12.7 mm	€27.81
B	7812022	4.76 mm	120410	Grade XC1015	12.7 mm	K	4	1 mm	12.7 mm	€26.69
B	7815023	4.76 mm	120410	-	12.7 mm	M	4	1 mm	12.7 mm	€39.50
B	7816023	4.76 mm	120410	Grade XC5040	12.7 mm	S	4	1 mm	12.7 mm	€39.50
B	7814022	4.76 mm	120410	Grade XP3035	12.7 mm	P	4	1 mm	12.7 mm	€26.69
B	7813022	4.76 mm	120410	Grade XP2040	-	M	4	1 mm	12.7 mm	€26.69
B	7825022	4.76 mm	120410	Grade XC3030	12.7 mm	P	4	1 mm	12.7 mm	€27.81
C	7812060	7.18 mm	1505	Grade XC1015	15.88 mm	K	8	1 mm	15.88 mm	€52.71
C	7819061	7.18 mm	1505	Grade XC3025	15.88 mm	P	8	1 mm	15.88 mm	€52.71
C	7813061	7.18 mm	1505	Grade XP2040	15.88 mm	M	8	1 mm	15.88 mm	€52.71
C	7814061	7.18 mm	1505	Grade XP3035	15.88 mm	P	8	1 mm	15.88 mm	€52.71

OSG -

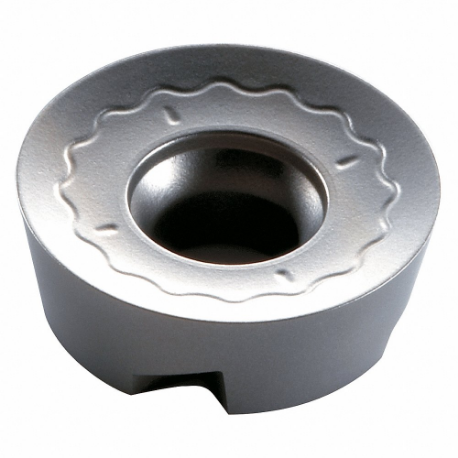

Round Indexable Milling Inserts

A

Style	Model	Insert Size	Manufacturer Grade	Thickness	Cutting Edge Length	Primary Material Application Iso Code	Insert Style	No. Of Edges	Iso Number	Price
A	7813008	10T3	Grade XP2040	3.97 mm	-	M	RPHT	8	RPHT10T3MOEN-GL	€22.46
A	7811009	10T3	Grade CK010	3.97 mm	10 mm	N	RPHT	8	RPHT10T3MOFN-NM	€25.80
A	7824083	10T3	Grade XP6015	3.97 mm	10 mm	H, P	RPMT	8	RPMT10T3M8EN-HR	€22.73
A	7814030	10T3	Grade XP3035	3.97 mm	10 mm	P	RPHW	8	RPHW10T3MOSN	€22.46
A	7825017	10T3	Grade XC3030	3.97 mm	10 mm	P	RPHW	8	RPHW10T3MOSN	€24.15
A	7812017	10T3	Grade XC1015	3.97 mm	10 mm	K	RPHW	8	RPHW10T3MOEN	€22.46
A	7815050	10T3	Grade XC5035	3.97 mm	10 mm	M	RPHT	8	RPHT10T3M8EN-SM	€39.64
A	7815010	10T3	Grade XC5035	3.97 mm	10 mm	M	RPHT	4	RPHT10T3MOEN-SM	€35.68
A	7816050	10T3	Grade XC5040	3.97 mm	10 mm	S	RPHT	8	RPHT10T3M8EN-SM	€39.61
A	7826008	10T3	Grade XP2025	3.97 mm	10 mm	M	RPHT	8	RPHT10T3MOEN-GL	€26.14
A	7812018	1204	Grade XC1015	4.76 mm	12 mm	K	RPHW	8	RPHW1204MOSN	€24.66
A	7824084	1204	Grade XP6015	4.76 mm	12 mm	H, P	RPMT	8	RPMT1204M8EN-HR	€23.01
A	7826011	1204	Grade XP2025	4.76 mm	-	M	RPHT	8	RPHT1204MOEN-GL	€28.27
A	7815051	1204	Grade XC5035	4.76 mm	12 mm	M	RPHT	8	RPHT1204M8EN-SM	€39.20
A	7816051	1204	Grade XC5040	4.76 mm	12 mm	S	RPHT	8	RPHT1204M8EN-SM	€39.20
A	7814018	1204	Grade XP3035	4.76 mm	12 mm	P	RPHW	8	RPHW1204MOSN	€24.66
A	7825018	1204	Grade XC3030	4.76 mm	12 mm	P	RPHW	8	RPHW1204MOSN	€24.98
A	7813011	1204	Grade XP2040	4.76 mm	12 mm	M	RPHT	8	RPHT1204MOEN-GL	€24.66
A	7811013	1204	Grade CK010	-	12 mm	N	RPHT	8	RPHT1204MOFN-NM	€28.27
A	7814019	1605	Grade XP3035	5.56 mm	16 mm	P	RPHW	8	RPHW1605MOSN	€33.69
A	7825019	1605	Grade XC3030	5.56 mm	16 mm	P	RPHW	8	RPHW1605MOSN	€35.01
A	7815015	1605	Grade XC5035	-	16 mm	M	RPHT	4	RPHT1605MOEN-SM	€59.59
A	7816052	1605	Grade XC5040	5.56 mm	16 mm	S	RPHT	8	RPHT1605M8EN-SM	€59.59
A	7812019	1605	Grade XC1015	5.56 mm	16 mm	K	RPHW	8	RPHW1605MOSN	€33.69
A	7826014	1605	Grade XP2025	5.56 mm	-	M	RPHT	8	RPHT1605MOEN-GL	€34.07

OSG -

Parallelogram Indexable Milling Inserts

A

B

C

D

E

F

Style	Model	Insert Size	Thickness	Manufacturer Grade	Cutting Edge Length	Primary Material Application Iso Code	Corner Radius	Shape	No. Of Edges	Price
A	7811048	11T302	3.8 mm	Grade CK010	11 mm	N	0.2 mm	Parallelogram	2	€28.27
B	7812025	11T304	3.8 mm	Grade XC1015	11 mm	K	0.4 mm	Parallelogram	2	€23.18
B	7813025	11T304	3.8 mm	Grade XP2040	11 mm	M	0.4 mm	Parallelogram	2	€23.18
B	7814025	11T304	3.8 mm	Grade XP3035	11 mm	P	0.4 mm	Parallelogram	2	€23.18
B	7825025	11T304	-	Grade XC3030	11 mm	P	0.4 mm	Parallelogram	2	€23.92
A	7811024	11T304	3.8 mm	Grade CK010	11 mm	N	0.4 mm	Parallelogram	2	€53.85
A	7811049	11T304	3.8 mm	Grade CK010	11 mm	N	0.4 mm	Parallelogram	2	€29.08
B	7826025	11T304	3.8 mm	Grade XP2025	11 mm	M	0.4 mm	Parallelogram	2	€23.92
C	7816034	11T304	-	Grade XC5040	11 mm	S	0.4 mm	Parallelogram	2	€36.17
C	7815031	11T308	3.8 mm	Grade XC5035	11 mm	M	0.8 mm	Parallelogram	2	€37.32
C	7816031	11T308	3.8 mm	Grade XC5040	11 mm	S	0.8 mm	Parallelogram	2	€37.32
D	7814033	11T308	3.8 mm	Grade XP3035	11 mm	P	0.8 mm	Parallelogram	2	€22.47
D	7825033	11T308	3.8 mm	Grade XC3030	11 mm	P	0.8 mm	Parallelogram	2	€23.92
D	7813033	11T308	3.8 mm	Grade XP2040	-	M	0.8 mm	Parallelogram	2	€22.47
E	7814026	11T308	3.8 mm	Grade XP3035	11 mm	P	0.8 mm	Parallelogram	2	€23.18
D	7812033	11T308	3.8 mm	Grade XC1015	11 mm	K	0.8 mm	Parallelogram	2	€22.47
F	7824035	11T308	3.8 mm	Grade XP6015	-	H, P	0.8 mm	Parallelogram	2	€28.27
E	7826026	11T308	3.8 mm	Grade XP2025	-	M	0.8 mm	Parallelogram	2	€23.92
E	7825026	11T308	3.8 mm	Grade XC3030	11 mm	P	0.8 mm	Parallelogram	2	€23.92
E	7813026	11T308	3.8 mm	Grade XP2040	-	M	0.8 mm	Parallelogram	2	€23.18
B	7826032	11T308	3.8 mm	Grade XP2025	-	M	0.8 mm	Parallelogram	2	€23.76
B	7813032	11T308	3.8 mm	-	11 mm	M	0.8 mm	Parallelogram	2	€23.18
B	7814032	11T308	3.8 mm	Grade XP3035	11 mm	P	0.8 mm	Parallelogram	2	€23.18
B	7814053	11T312	3.8 mm	Grade XP3035	11 mm	P	1.2 mm	Parallelogram	2	€23.18
C	7816027	11T316	3.8 mm	Grade XC5040	11 mm	S	1.6 mm	Parallelogram	2	€37.32

OSG -

Octagon Indexable Milling Inserts

A

B

Style	Model	Insert Size	Manufacturer Grade	Cutting Edge Length	Primary Material Application	Primary Material Application Iso Code	Finish-machining	Insert Style	No. Of Edges	Price
A	7821062	60508	Grade XP1020	6 mm	Cast Iron	K	Ticn+Tialsin	OZKU	16	€39.64
A	7825062	60508	Grade XC3030	6 mm	Steel	P	Ticn+Al2O3	OZKU	16	€39.64
A	7813062	60508	Grade XP2040	6 mm	Stainless Steel	M	TiAlN	OZKU	16	€39.64
A	7816085	60508	Grade XC5040	6 mm	Nickel, Titanium	S	Tin+Tib2	OZKU	16	€62.34
A	7826062	60508	Grade XP2025	-	Stainless Steel	M	TiAlN	OZKU	16	€39.64
A	7812062	60508	Grade XC1015	6 mm	Cast Iron	K	Ticn+Al2O3	OZKU	16	€39.64
A	7814062	60508	Grade XP3035	6 mm	Steel	P	Tialn+Tin	OZKU	16	€38.37
A	7812086	60508	Grade XC1015	6 mm	Cast Iron	K	Ticn+Al2O3	OZKU	16	€39.64
B	7814064	60525	Grade XP3035	6 mm	Steel	P	Tialn+Tin	XAHT	2	€40.82
B	7812064	60525	Grade XC1015	10 mm	Cast Iron	K	Tialn+Al2O3	XAHT	2	€43.09

OSG -

Diamond Indexable Milling Inserts

A

B

Style	Model	Thickness	Insert Size	Primary Material Application Iso Code	Material-machining	Mounting Style	Cutting Direction	Insert Style	Corner Radius	Price
A	73817000	0.02"	2001	H, K, M, P, S	Cermet	Screw	Right	2001	0.6 mm	-	RFQ
B	8080801	4 19/25"	1104	N	Polycrystalline Diamond	Screw Held	Right Hand	XOHW	0.4 mm	€345.34

OSG -

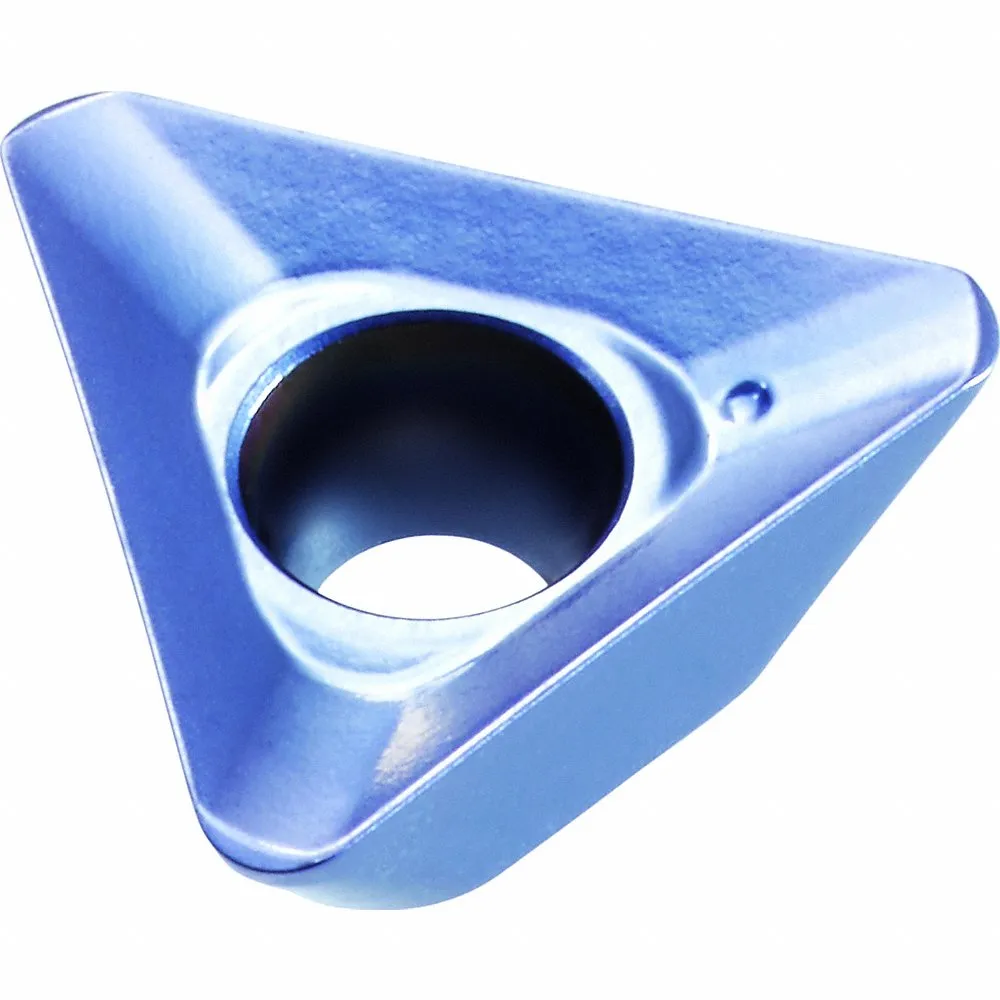

Drilling Indexable Insert, 1/4 Inch Inscribed Circle

Model	Item	Price (ex. VAT)
7813205	CH6MRP	€35.75
