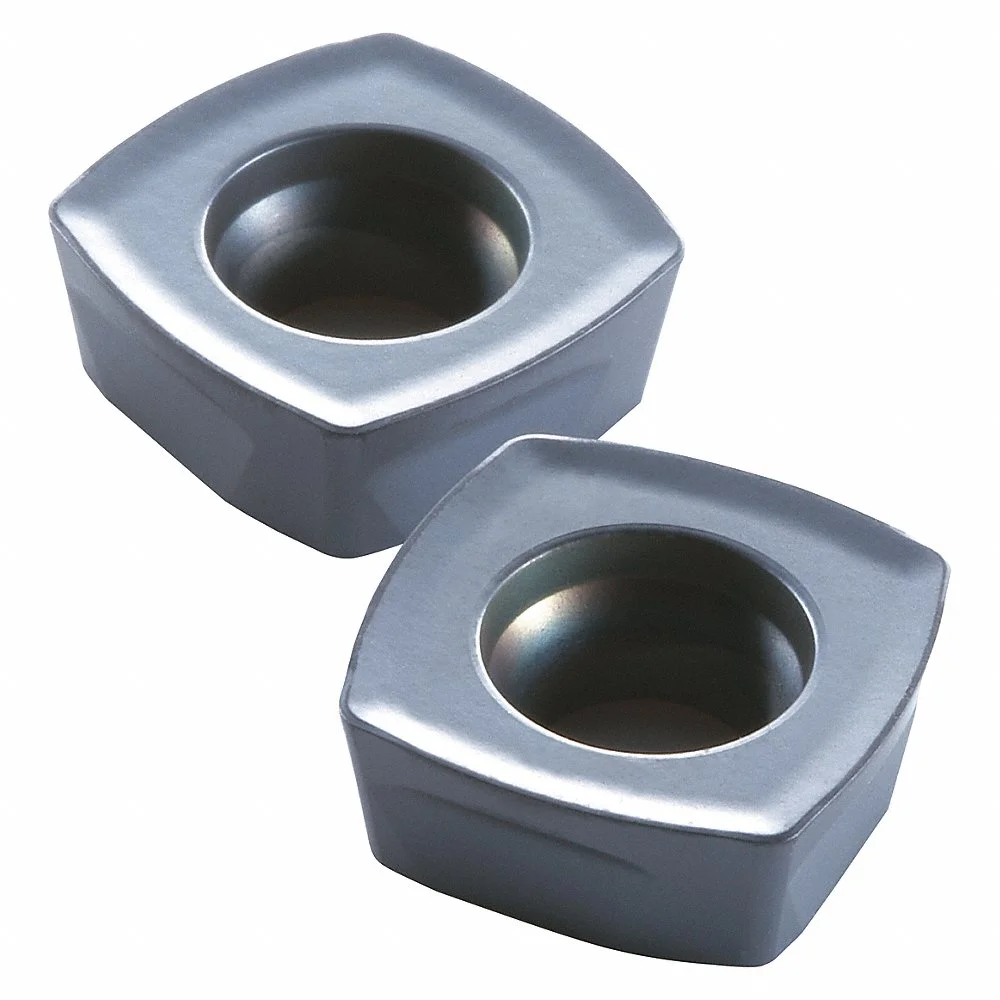

OSG 7826022 Square Milling Insert, 12.70 mm Inscribed Circle, 1.00 mm Corner Radius, 4.76 mm Thick
Item: CT6BXHModel: 7826022Cross Ref: 53HM48
7 In Stock
Ships within 2 days via
10.00% off
€25.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | GM |
| Clearance Angle | 9° |
| Coating | PVD |
| Compatibility | Yes |
| Corner Radius | 1 mm |
| Cutting Application | Finishing |
| Cutting Depth | 1.3 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 12.7 mm |
| Features | Composed Of A Tough High-Strength Carbide Material With An Anti-Chipping And Wear Resistant Coating |
| For Toolholder | PCH12R033SF16-2, PHC07R016SF8-2, PHC07R017SF8-2, PHC07R018SF8-2, PHC07R020SF10-3, PHC07R021SF10-3, PHC07R022SF10-3, PHC07R025SF12-4, PHC07R026SF12-4, PHC07R028SF12-4, PHC07R030SF16-4, PHC07R032SF16-5, PHC07R033SF16-5, PHC07R035SF16-5, PHC09R025SF12-3, PHC09R026SF12-3, PHC09R028SF12-3, PHC09R030SF16-3, PHC09R032SF16-3, PHC09R033SF16-3, PHC09R035SF16-3, PHC09R040SF16-4, PHC12R030SF16-2, PHC12R032SF16-2, PHC12R035SF16-3, PHC12R040SF16-3 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Inscribed Circle | 12.7 mm |
| Insert Application | Finishing |
| Insert Size | 120410 |
| Material | Carbide |
| Mounting Style | Screw |
| No. Of Edges | 4 |
| Non Ferrous (n) Compatibility | No |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Nickel, Steel, Titanium |
| Secondary Material Application Iso Code | P, S |
| Shape | Square |
| Stainless Compatibility | Yes |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Metric |
| Thickness | 4.76 mm |
| Workpiece Compatibility | Super Alloy |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Inscribed Circle | Corner Radius | Thickness | Iso Number | Ansi Number | No. Of Edges | Insert Size | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7825022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €27.81 | |
| 7813022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 | |
| 7814022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €26.69 | |
| 7816023 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410ER-SM | - | 4 | 120410 | SM | €39.50 | |
| 7815023 | 12.7 mm | 1 mm | 4.76 mm | - | - | 4 | 120410 | SM | €39.50 | |
| 7812022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 | |
| 52700006 | 15.88 mm | 1 mm | 7.18 mm | SNKU1505AZER-SM | - | 8 | 1505 | SM | €66.49 |
