OSG 7814064 Octagon Milling Insert, 17.10 mm Inscribed Circle, 2.50 mm Corner Radius, 5.66 mm Thick | CT6BLU 53HF83

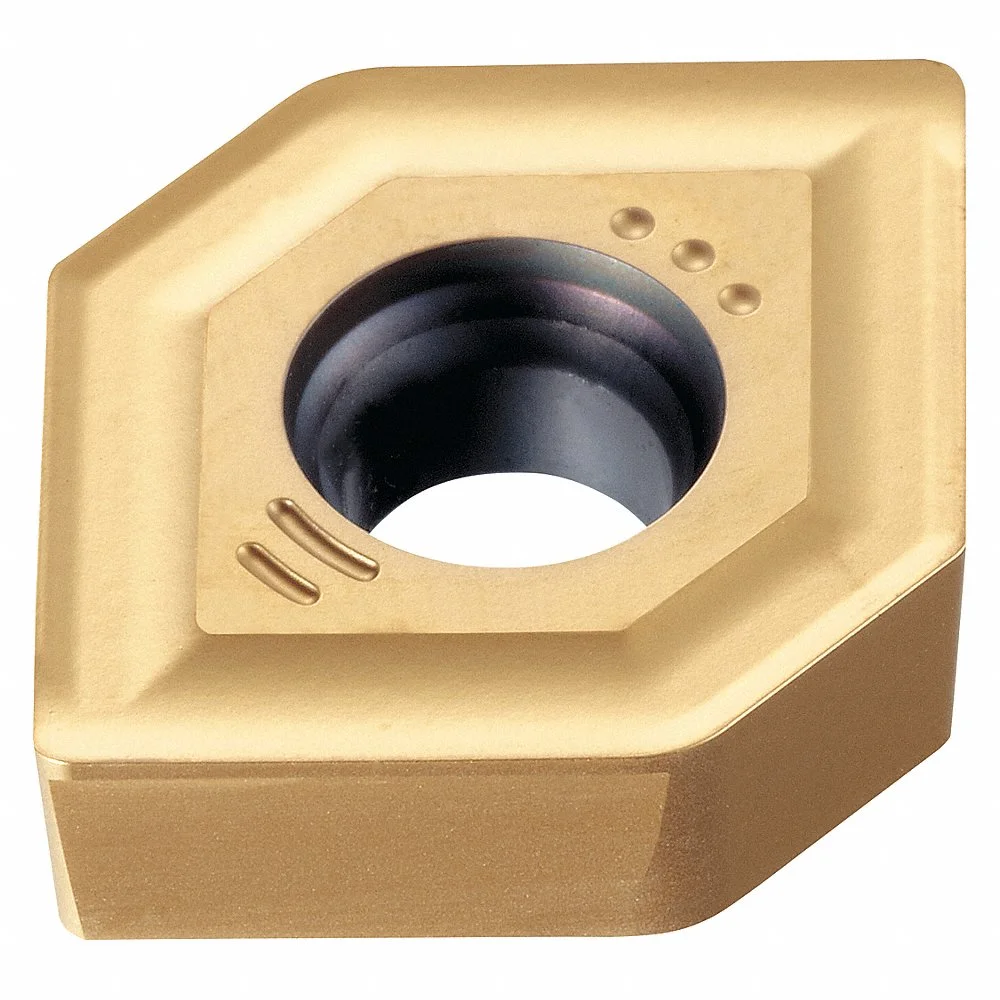

OSG 7814064 Octagon Milling Insert, 17.10 mm Inscribed Circle, 2.50 mm Corner Radius, 5.66 mm Thick

Item: CT6BLUModel: 7814064Cross Ref: 53HF83
7 In Stock

Ships within 2 days via

€40.82
10.00% off
€36.74 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Milling Insert
Cast Iron (k) Compatibility Yes
Chip-breaker Yes
Chip-breaker Code GM
Clearance Angle 3°
Coating PVD
Coating Process PVD
Compatibility Yes
Corner Radius 2.5 mm
Countersink Hole Angle 40° to 60°
Cutting Application Finishing
Cutting Direction Right Hand
Cutting Edge Length 6 mm
Features Composed Of A Tough High-Strength Carbide Material With A Chipping Resistant And Wear Resistant Coating
Finish Titanium Aluminum Nitride, Titanium Nitride
Finish - Machining Tialn+Tin
For Toolholder PAO06R050M22-5, PAO06R063M22-7, PAO06R080M25.4-8, PAO06R100M31.7-10, PAO06R100M31.7W-14, PAO06R125M38.1-12, PAO06R125M38.1W-17, PAO06R160M50.8W-20, PAO06R200M47.6W-25
For Use With Indexable Ballnose End Mills
Hardened Compatibility No
Hole Type 40° To 60° Countersink Hole
Inscribed Circle 17.1 mm
Insert Application Finishing
Insert Holding Type Screw
Insert Size 60525
Insert Style XAHT
Iso Number XAHT060525SR-GM
Lead Angle 15°
Manufacturer Grade Grade XP3035
Material Carbide
Material - Machining Carbide
Mfr. Series 78PAO Series
Mounting Style Screw
No. Of Edges 2
Non Ferrous (n) Compatibility No
Number Of Cutting Edges 2
Primary Material Application Steel
Primary Material Application Iso Code P
Secondary Material Application Cast Iron, Stainless Steel
Secondary Material Application Iso Code K, M
Shape Octagon
Stainless Compatibility Yes
Style XAHT
Super Alloy Compatibility No
System Of Measurement Metric
Thickness 5.66 mm
Width 17.1 mm
Workpiece Compatibility Stainless Steel, Steel

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelCorner RadiusIso NumberNo. Of EdgesCoatingInsert SizeChip-breaker CodePrimary Material ApplicationCoating ProcessPrice
OSG 7821062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLM 53HF85 78210620.8 mmOZKU060508SR-GM16PVD60508GMCast IronPVD€39.64
OSG 7813062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLN 53HF81 78130620.8 mmOZKU060508SR-GM16PVD60508GMStainless SteelPVD€39.64
OSG 7816085 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLP 53HF84 78160850.8 mmOZKU060508ER-SM16Chemical vapor deposition60508SMNickel, TitaniumCVD€62.34
OSG 7826062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLQ 53HF87 78260620.8 mmOZKU060508SR-GM16PVD60508GMStainless SteelPVD€39.64
OSG 7812062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLR 53HF78 78120620.8 mmOZKU060508SR-GM16Chemical vapor deposition60508GMCast IronCVD€39.64
OSG 7814062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick | CT6BLT 53HF82 78140620.8 mmOZKU060508SR-GM16PVD60508GMSteelPVD€38.37
OSG 7812064 Octagon Milling Insert, 17.10 mm Inscribed Circle, 2.50 mm Corner Radius, 5.66 mm Thick | CT6BLV 53HF79 78120642.5 mmXAHT060525SR-GM2Chemical vapor deposition60525GMCast IronCVD€43.09
