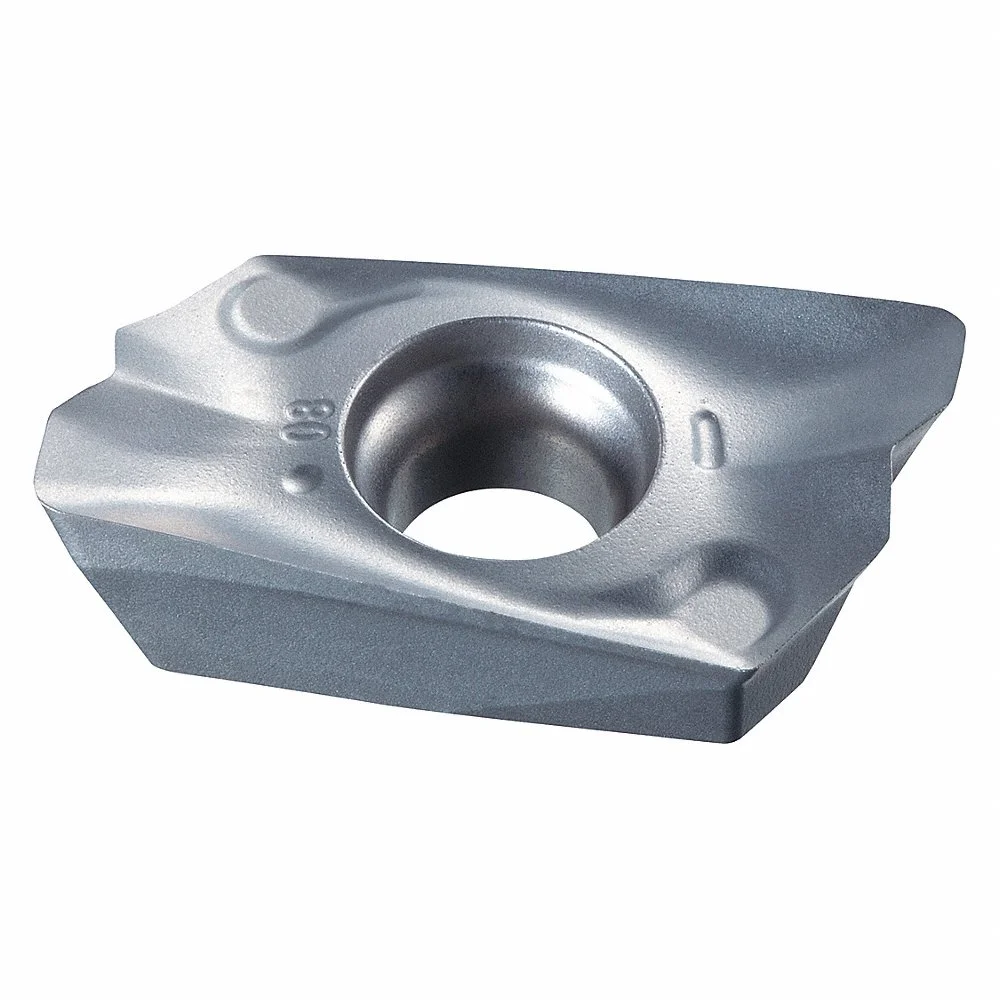

OSG 7811024 Parallelogram Milling Insert, 6.80 mm Inscribed Circle, 0.40 mm Corner Radius | CT6BTX 53HH53

OSG 7811024 Parallelogram Milling Insert, 6.80 mm Inscribed Circle, 0.40 mm Corner Radius

Item: CT6BTXModel: 7811024Cross Ref: 53HH53
7 In Stock

Ships within 2 days via

€53.85
10.00% off
€48.46 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Milling Insert
Cast Iron (k) Compatibility No
Chip-breaker Yes
Chip-breaker Code NM
Clearance Angle 15°
Compatibility No
Corner Radius 0.4 mm
Countersink Hole Angle 40° to 60°
Cutting Application Finishing
Cutting Depth 1.8 mm
Cutting Direction Right Hand
Cutting Edge Length 11 mm
Features Composed Of A Non-Coated Carbide Material With Anti-Chippingd Wear Resistant Properties
Finish Bright, Uncoated
Finish - Machining Bright (Uncoated)
For Toolholder PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4
For Use With Indexable Ballnose End Mills
Hardened Compatibility No
Hole Type 40° To 60° Countersink Hole
Inscribed Circle 6.8 mm
Insert Application Finishing
Insert Holding Type Screw
Insert Size 11T304
Insert Style ZDHT
Iso Number ZDHT11T304FR-NM
Manufacturer Grade Grade CK010
Material Carbide
Material - Machining Carbide
Mfr. Series 78PSE
Mounting Style Screw
No. Of Edges 2
Non Ferrous (n) Compatibility Yes
Number Of Cutting Edges 2
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium
Primary Material Application Iso Code N
Series 78PSE Series
Shape Parallelogram
Stainless Compatibility No
Style ZDHT
Super Alloy Compatibility No
System Of Measurement Metric
Thickness 3.8 mm
Width 6.8 mm

Shipping Info:

Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelCorner RadiusInscribed CircleThicknessIso NumberAnsi NumberInsert SizeShapeNo. Of EdgesPrice
OSG 52201050 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0150 Inch Corner Radius | CT6BLW 53HR25 522010500.015"3/8"2.6 mmPFR0375R015-SH-375Parallelogram1€127.72
OSG 52201000 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0150 Inch Corner Radius | CT6BLX 53HP95 522010000.015"3/8"2.6 mmPFR0375R015-STPFR0375R015-ST375Parallelogram1€127.72
OSG 52201100 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0150 Inch Corner Radius | CT6BLY 53HR54 522011000.015"3/8"2.6 mmPFR0375R015A-DPFR0375R015A-D375Parallelogram1€291.45
OSG 52201101 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0300 Inch Corner Radius | CT6BLZ 53HR55 522011010.03"3/8"2.6 mmPFR0375R030A-DPFR0375R030A-D375Parallelogram1€291.45
OSG 52201001 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0300 Inch Corner Radius | CT6BMA 53HP96 522010010.03"3/8"2.6 mmPFR0375R030-STPFR0375R030-ST375Parallelogram1€127.72
OSG 52201102 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0600 Inch Corner Radius | CT6BMB 53HR56 522011020.06"3/8"2.6 mmPFR0375R060A-DPFR0375R060A-D375Parallelogram1€291.45
OSG 52201002 Parallelogram Milling Insert, 0.375 Inch Inscribed Circle, 0.0600 Inch Corner Radius | CT6BMC 53HP97 522010020.06"3/8"2.6 mmPFR0375R060-STPFR0375R060-ST375Parallelogram1€127.72
