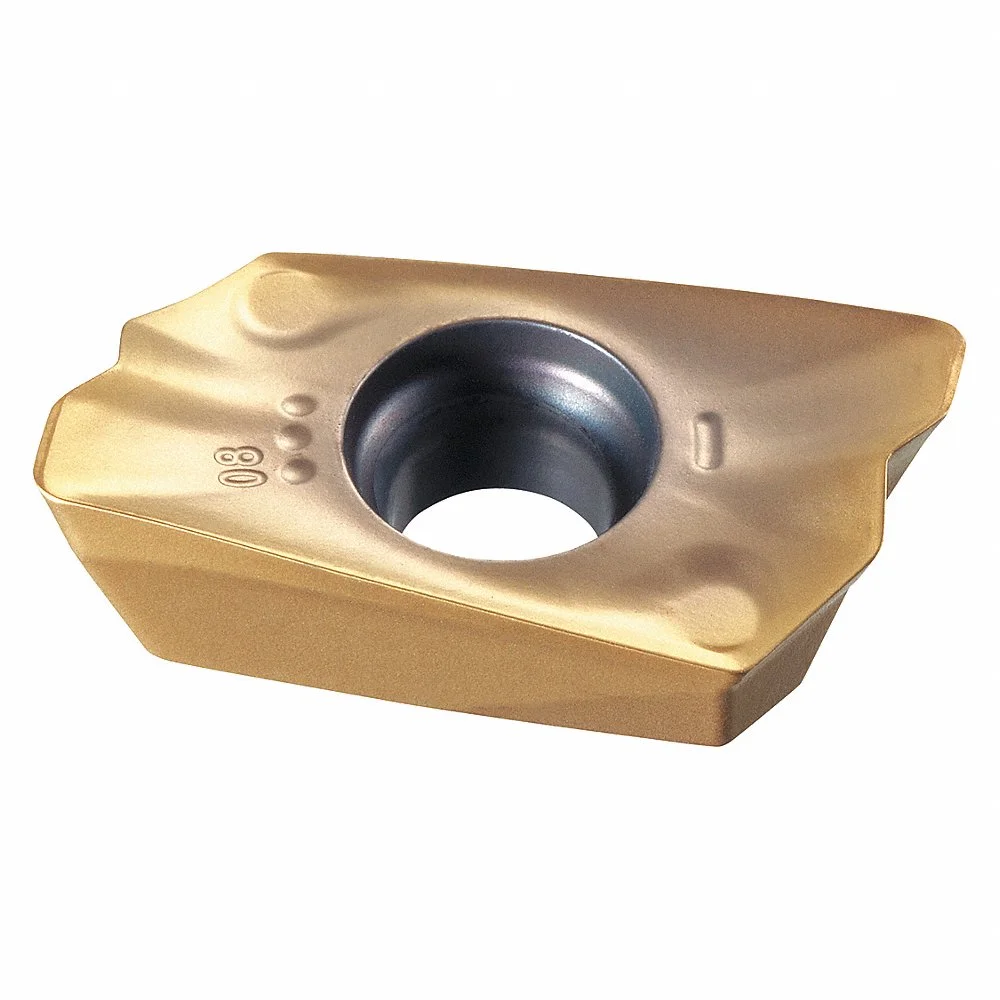

OSG 7813026 Parallelogram Milling Insert, 6.80 mm Inscribed Circle, 0.80 mm Corner Radius
Item: CT6BUFModel: 7813026Cross Ref: 53HH61
7 In Stock
Ships within 2 days via
10.00% off
€20.86 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | GL |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 0.8 mm |
| Cutting Application | Finishing |
| Cutting Depth | 1.4 mm |
| Cutting Direction | Right Hand |
| Features | Composed Of A Tough High-Strength Carbide With An Anti-Chipping And Wear Resistant Coating |
| Finish - Machining | TiAlN |
| For Toolholder | PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | Yes |
| Hole Type | 40° To 60° Countersink Hole |
| Inscribed Circle | 6.8 mm |
| Insert Application | Finishing |
| Insert Size | 11T308 |
| Insert Style | ZDKT |
| Iso Number | ZDKT11T308SR-GL |
| Manufacturer Grade | Grade XP2040 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Alloy Steel, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, M, P, S |
| Series | 78PSE Series |
| Shape | Parallelogram |
| Stainless Compatibility | Yes |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 3.8 mm |
| Width | 6.8 mm |
| Workpiece Compatibility | Hardened, Stainless Steel, Steel |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Inscribed Circle | Thickness | Iso Number | Ansi Number | Insert Size | Shape | No. Of Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52201050 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-SH | - | 375 | Parallelogram | 1 | €127.72 | |
| 52201000 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-ST | PFR0375R015-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201100 | 0.015" | 3/8" | 2.6 mm | PFR0375R015A-D | PFR0375R015A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201101 | 0.03" | 3/8" | 2.6 mm | PFR0375R030A-D | PFR0375R030A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201001 | 0.03" | 3/8" | 2.6 mm | PFR0375R030-ST | PFR0375R030-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201102 | 0.06" | 3/8" | 2.6 mm | PFR0375R060A-D | PFR0375R060A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201002 | 0.06" | 3/8" | 2.6 mm | PFR0375R060-ST | PFR0375R060-ST | 375 | Parallelogram | 1 | €127.72 |
