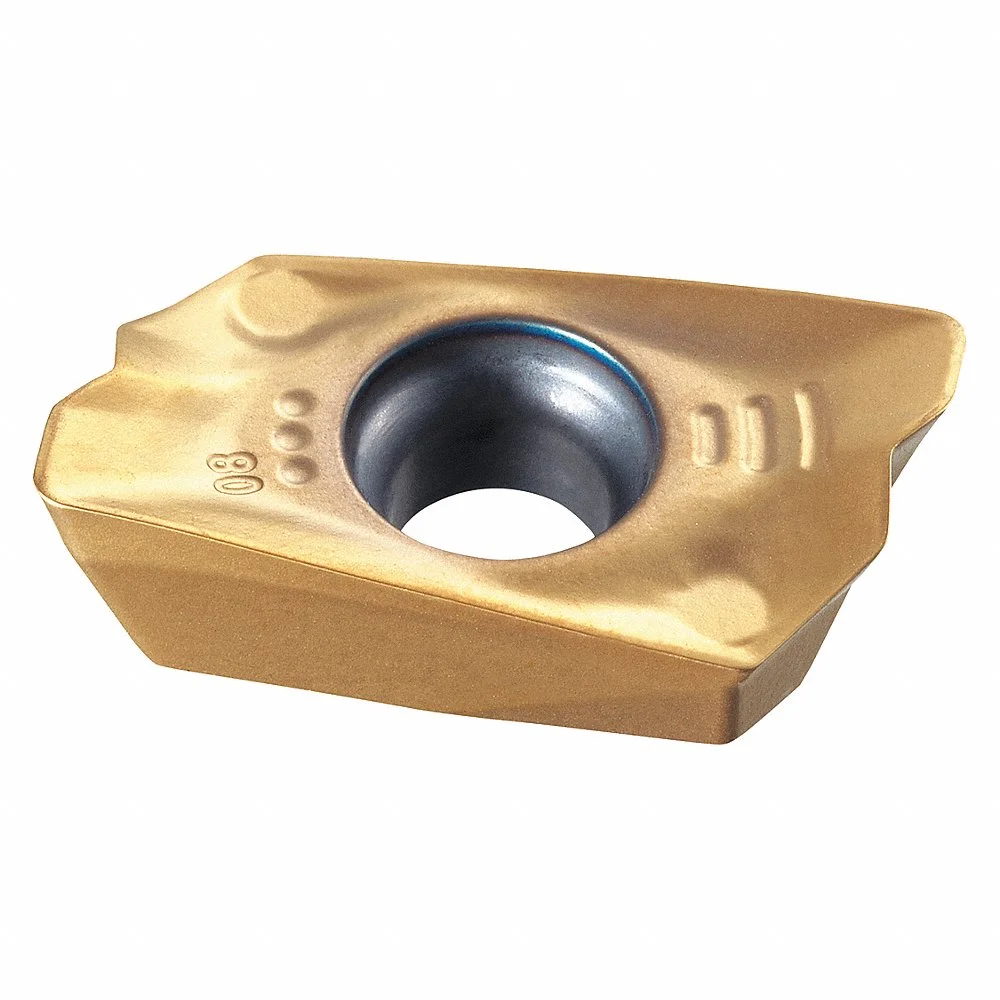

OSG 7814033 Parallelogram Milling Insert, 6.80 mm Inscribed Circle, 0.80 mm Corner Radius
Item: CT6BUKModel: 7814033Cross Ref: 53HH71
7 In Stock
Ships within 2 days via
10.00% off
€20.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | ZDKT11T308SR-GR |
| Ansi Number | ZDKT11T308SR-GR |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | GR |
| Clearance Angle | 15° |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 11 mm |
| Features | Composed Of A Tough High-Strength Carbide Material With A Chipping Resistant And Wear Resistant Coating |
| Finish | Titanium Aluminum Nitride, Titanium Nitride |
| Finish - Machining | Tialn+Tin |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Inscribed Circle | 6.8 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 11T308 |
| Insert Style | ZDKT |
| Iso Number | ZDKT11T308SR-GR |
| Lead Angle | 7° |
| Manufacturer Grade | Grade XP3035 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PSE |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Series | 78PSE Series |
| Shape | Parallelogram |
| Stainless Compatibility | Yes |
| Style | ZDKT |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 3.8 mm |
| Width | 6.8 mm |
| Workpiece Compatibility | Stainless Steel, Steel |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Inscribed Circle | Thickness | Iso Number | Ansi Number | Insert Size | Shape | No. Of Edges | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52201050 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-SH | - | 375 | Parallelogram | 1 | €127.72 | |
| 52201000 | 0.015" | 3/8" | 2.6 mm | PFR0375R015-ST | PFR0375R015-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201100 | 0.015" | 3/8" | 2.6 mm | PFR0375R015A-D | PFR0375R015A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201101 | 0.03" | 3/8" | 2.6 mm | PFR0375R030A-D | PFR0375R030A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201001 | 0.03" | 3/8" | 2.6 mm | PFR0375R030-ST | PFR0375R030-ST | 375 | Parallelogram | 1 | €127.72 | |
| 52201102 | 0.06" | 3/8" | 2.6 mm | PFR0375R060A-D | PFR0375R060A-D | 375 | Parallelogram | 1 | €291.45 | |
| 52201002 | 0.06" | 3/8" | 2.6 mm | PFR0375R060-ST | PFR0375R060-ST | 375 | Parallelogram | 1 | €127.72 |
