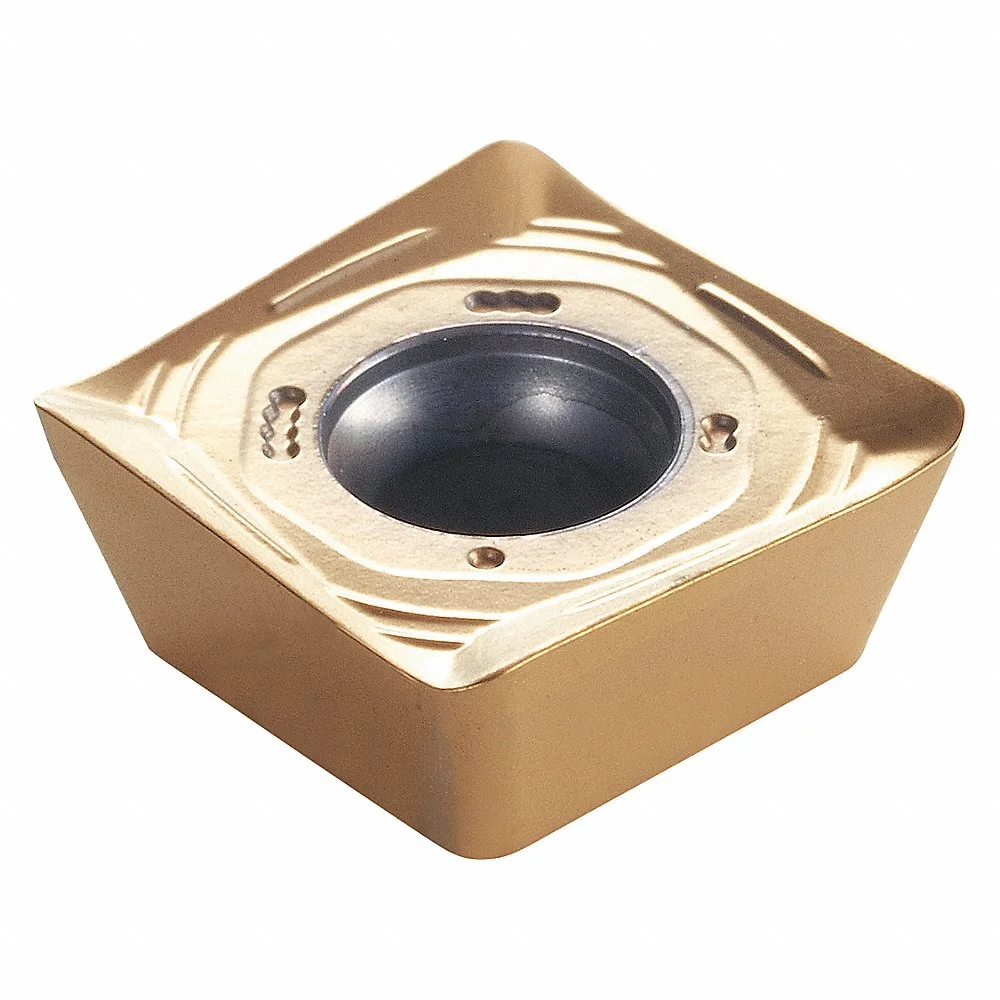

OSG 7816073 Square Milling Insert, 9.07 mm Inscribed Circle, 0.80 mm Corner Radius, 3.97 mm Thick
Item: CT6BXVModel: 7816073Cross Ref: 53HJ60
7 In Stock
Ships within 2 days via
10.00% off
€29.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | GL |
| Clearance Angle | 15° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Compatibility | No |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Depth | 2.5 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 9.07 mm |
| Features | Composed Of A Tough Carbide Material With An Oxidation-Resistant And High-Lubricity Coating |
| Finish | Titanium Nitride, Titanium Diboride |
| Finish - Machining | Tin+Tib2 |
| For Toolholder | PSF09R050M22-6, PSF09R063M22-7, PSF09R080M25.4-9, PSF09R200A075-6, PSF09R250A075-7, PSF09R300A100-9 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 90° |
| Inscribed Circle | 9.07 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 09T308 |
| Insert Style | SDKT |
| Iso Number | SDKT09T308SR-GL |
| Lead Angle | 25° |
| Manufacturer Grade | Grade XC5040 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PSF Series |
| Mounting Style | Screw |
| No. Of Edges | 4 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Shape | Square |
| Stainless Compatibility | Yes |
| Style | SDKT |
| Super Alloy Compatibility | Yes |
| System Of Measurement | Metric |
| Thickness | 3.97 mm |
| Workpiece Compatibility | Stainless Steel, Super Alloy |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Inscribed Circle | Corner Radius | Thickness | Iso Number | Ansi Number | No. Of Edges | Insert Size | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7825022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €27.81 | |
| 7826022 | 12.7 mm | 1 mm | 4.76 mm | - | - | 4 | 120410 | GM | €27.81 | |
| 7813022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 | |
| 7814022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €26.69 | |
| 7816023 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410ER-SM | - | 4 | 120410 | SM | €39.50 | |
| 7815023 | 12.7 mm | 1 mm | 4.76 mm | - | - | 4 | 120410 | SM | €39.50 | |
| 7812022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 |
