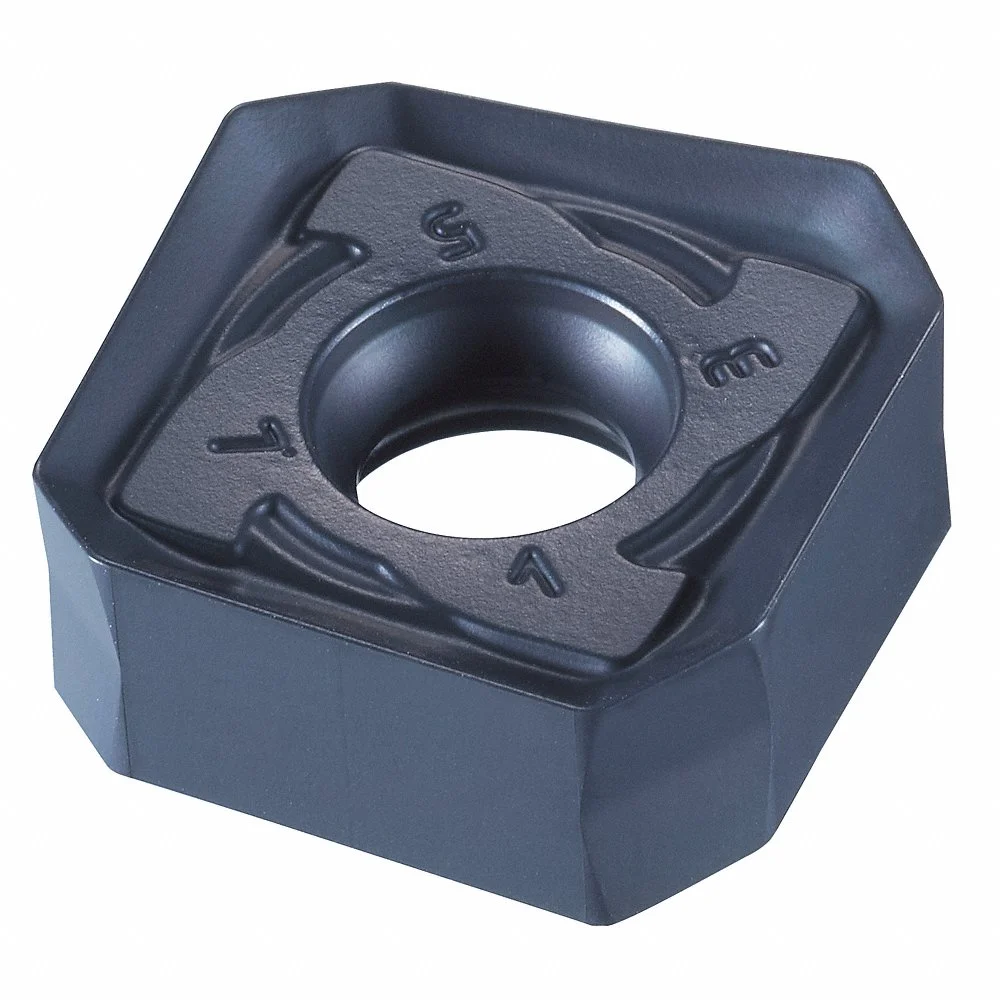

OSG 7814061 Square Milling Insert, 15.88 mm Inscribed Circle, 1.00 mm Corner Radius, 7.18 mm Thick
Item: CT6BXQModel: 7814061Cross Ref: 53HF58
7 In Stock
Ships within 2 days via
10.00% off
€47.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | SNKU1505AZER-GM |
| Ansi Number | SNKU1505AZER-GM |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | GM |
| Clearance Angle | 0° |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 1 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 15.88 mm |
| Features | Composed Of A Tough High-Strength Carbide Material With A Chipping Resistant And Wear Resistant Coating |
| Finish | Titanium Aluminum Nitride, Titanium Nitride |
| Finish - Machining | Tialn+Tin |
| For Toolholder | PAS15R050M22-4, PAS15R063M22-5, PAS15R080M25.4-6, PAS15R100M31.7-7, PAS15R125M38.1-8, PAS15R200A075-4, PAS15R250A075-5, PAS15R300A100-6, PAS15R400A125-7, PAS15R500A150-8, PAS15R600A150-9 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 90° |
| Inscribed Circle | 15.88 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 1505 |
| Insert Style | SNKU |
| Iso Number | SNKU1505AZER-GM |
| Lead Angle | 35° |
| Manufacturer Grade | Grade XP3035 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PAS |
| Mounting Style | Screw |
| No. Of Edges | 8 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 8 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Series | 78PAS Series |
| Shape | Square |
| Stainless Compatibility | Yes |
| Style | SNKU |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 7.18 mm |
| Workpiece Compatibility | Stainless Steel, Steel |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Inscribed Circle | Corner Radius | Thickness | Iso Number | Ansi Number | No. Of Edges | Insert Size | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7825022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €27.81 | |
| 7826022 | 12.7 mm | 1 mm | 4.76 mm | - | - | 4 | 120410 | GM | €27.81 | |
| 7813022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 | |
| 7814022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | SXMT120410SR-GM | 4 | 120410 | GM | €26.69 | |
| 7816023 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410ER-SM | - | 4 | 120410 | SM | €39.50 | |
| 7815023 | 12.7 mm | 1 mm | 4.76 mm | - | - | 4 | 120410 | SM | €39.50 | |
| 7812022 | 12.7 mm | 1 mm | 4.76 mm | SXMT120410SR-GM | - | 4 | 120410 | GM | €26.69 |
