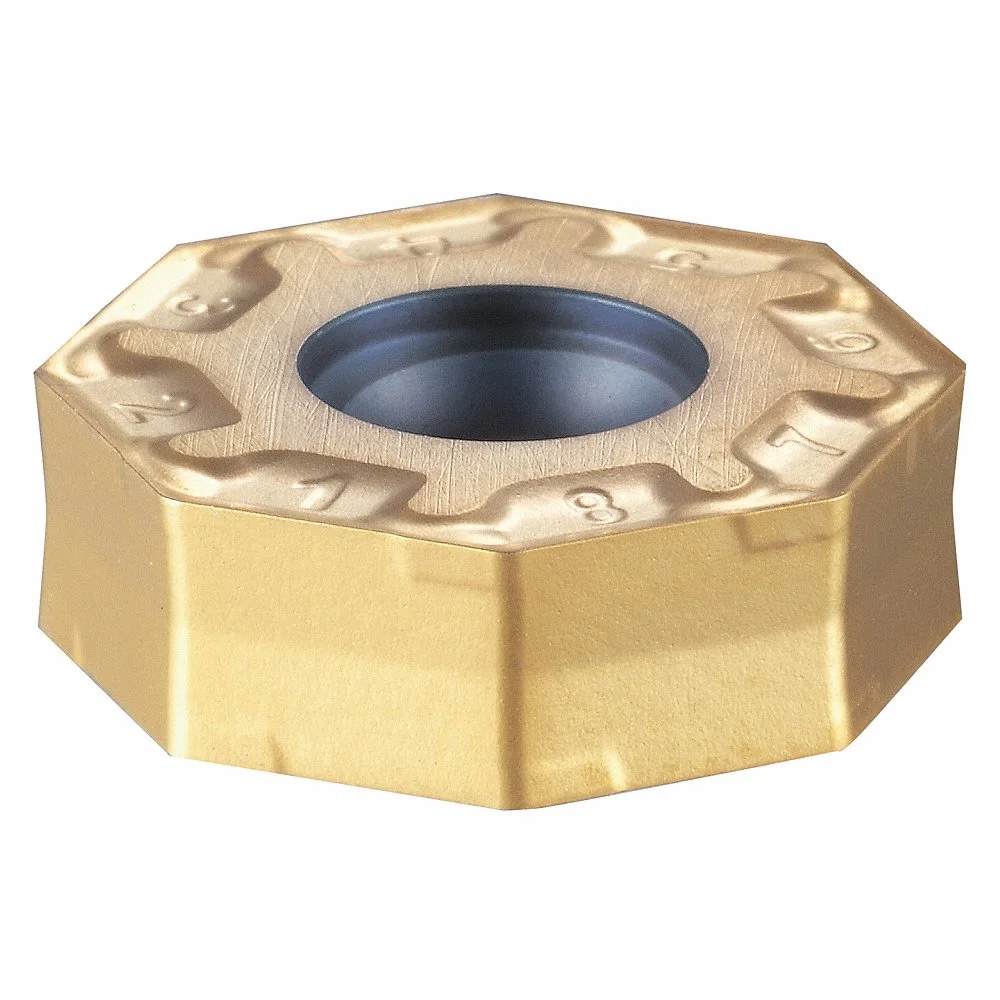

OSG 7814062 Octagon Milling Insert, 17.10 mm Inscribed Circle, 0.80 mm Corner Radius, 5.66 mm Thick
Item: CT6BLTModel: 7814062Cross Ref: 53HF82
7 In Stock
Ships within 2 days via
10.00% off
€34.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | GM |
| Clearance Angle | 3° |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Finishing |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 6 mm |
| Features | Composed Of A Tough High-Strength Carbide Material With A Chipping Resistant And Wear Resistant Coating |
| Finish | Titanium Aluminum Nitride, Titanium Nitride |
| Finish - Machining | Tialn+Tin |
| For Toolholder | PAO06R050M22-5, PAO06R063M22-7, PAO06R080M25.4-8, PAO06R100M31.7-10, PAO06R100M31.7W-14, PAO06R125M38.1-12, PAO06R125M38.1W-17, PAO06R160M50.8W-20, PAO06R200M47.6W-25 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Countersink Hole |
| Included Angle | 135° |
| Inscribed Circle | 17.1 mm |
| Insert Application | Finishing |
| Insert Holding Type | Screw |
| Insert Size | 60508 |
| Insert Style | OZKU |
| Iso Number | OZKU060508SR-GM |
| Lead Angle | 15° |
| Manufacturer Grade | Grade XP3035 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mfr. Series | 78PAO Series |
| Mounting Style | Screw |
| No. Of Edges | 16 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 16 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Shape | Octagon |
| Stainless Compatibility | Yes |
| Style | OZKU |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 5.66 mm |
| Width | 17.1 mm |
| Workpiece Compatibility | Stainless Steel, Steel |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Corner Radius | Iso Number | No. Of Edges | Coating | Insert Size | Chip-breaker Code | Primary Material Application | Coating Process | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7821062 | 0.8 mm | OZKU060508SR-GM | 16 | PVD | 60508 | GM | Cast Iron | PVD | €39.64 | |
| 7813062 | 0.8 mm | OZKU060508SR-GM | 16 | PVD | 60508 | GM | Stainless Steel | PVD | €39.64 | |
| 7816085 | 0.8 mm | OZKU060508ER-SM | 16 | Chemical vapor deposition | 60508 | SM | Nickel, Titanium | CVD | €62.34 | |
| 7826062 | 0.8 mm | OZKU060508SR-GM | 16 | PVD | 60508 | GM | Stainless Steel | PVD | €39.64 | |
| 7812062 | 0.8 mm | OZKU060508SR-GM | 16 | Chemical vapor deposition | 60508 | GM | Cast Iron | CVD | €39.64 | |
| 7814064 | 2.5 mm | XAHT060525SR-GM | 2 | PVD | 60525 | GM | Steel | PVD | €40.82 | |
| 7812064 | 2.5 mm | XAHT060525SR-GM | 2 | Chemical vapor deposition | 60525 | GM | Cast Iron | CVD | €43.09 |
