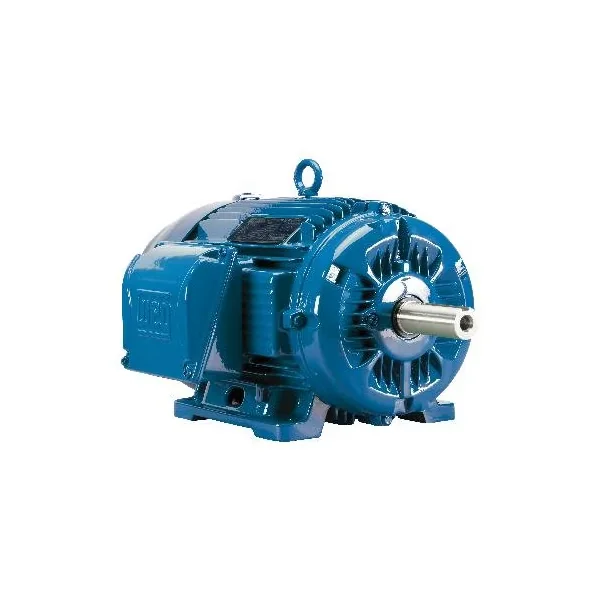

WEG 02512ET3E324T-W22G 12769895 Electric Motor, 25Hp, 60Hz, 1200 Rpm
Get it by Thursday, Dec 18
€5,884.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 46 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 65% |
| Efficiency At 75 % | 77% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 324/6T |
| Frame Material | Cast Iron |
| Frame Size | 324T |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 26 sec. |
| Hp | 25 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 382/191A |
| Locked Rotor Torque | 210% |
| Lrc | 6.2X(Code G) |
| Main Terminal Box Hole Size | 2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 11.5 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1180 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 28/14A |
| No. Of Poles | 6 |
| Noise Level | 62 dBA |
| Output Rating | 25 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 93 |
| Power Factor At 50 % | 92.4 |
| Power Factor At 75 % | 93 |
| Rated Current | 61.6/30.8A |
| Rated Torque | 111 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 263.25 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Frequency | Service Factor | Hp | Frame | Duty Cycle | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

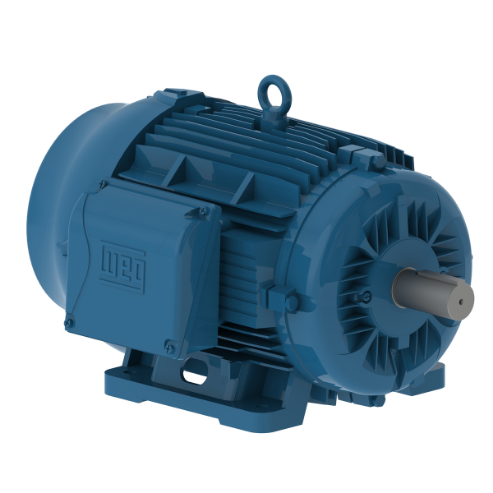

03018ET3E286T-W22G | 208-230/460V | 50/60 Hz | - | 30 hp | 286T | Continuous | Cast Iron | 4 | €6,374.11 | |
 |
10018ET3E405T-W22G | 230/460/380V AC | 60 Hz | 1.25 | 100 hp | 404/5T | S1 | Cast Iron | 4 | €14,765.27 | |
 |
04018ET3E324T-W22G | 230/460/380V AC | 60 Hz | - | 40 hp | 324/6T | S1 | Cast Iron | 4 | €7,977.95 | |
 |
01518ET3E254T-SG | 230/460/190-220/380-415V AC | 60 Hz | 1.15 | - | 254/6T | S1 | Rolled Steel | 4 | €3,122.55 | |
|
02536ET3E284TS-W22G | 230/460/380V AC | 50/60 Hz | 1.25 | 25 hp | 284/6TS | S1 | Cast Iron | 2 | €5,968.17 | |
 |
00152ET3E182T-SG | 230/460/190-220/380-415V AC | 50/60 Hz | 1.15 | - | 182/4T | S1 | Rolled Steel | 6 | €985.49 | |
|
02518ET3H284T-W22G | 575V AC | 60 Hz | 1.25 | 25 hp | 284/6T | S1 | Cast Iron | 4 | €3,529.34 |
