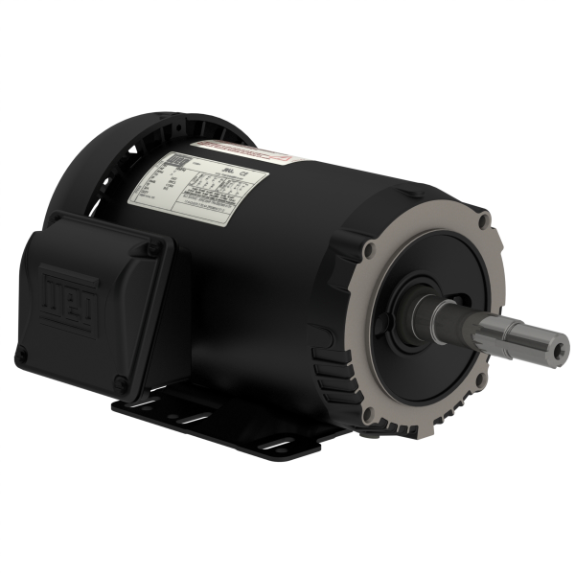

WEG 00118ET3E143JM-SG 14808667 Pump Motor, 1 HP, 1800 RPM, 208/230/460V, TEFC, 143/5JM, Footed, Close CoupLED Pump With Bearing Protection
1800 rpm
1 hp
145JM
Get it by Tuesday, Aug 25
€911.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.62A , 2.94/1.47A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% , 330% |
| Cold Locked Rotor Time | 0 sec. , 34 sec. |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 52% |
| Efficiency @ 1 % | 75% |
| Efficiency @ 75 % | 66% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 143JM |
| Frame Type | 143/5JM |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 19 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 12.2A , 25.3/12.6A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 250% , 280% |
| Lrc | 7.5x(Code K) , 8.6X(Code M) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.1232 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 0.988A , 1.78/0.89A |
| No. Of Poles | 4 |
| Noise Level | 49 dBA , 52 dBA |
| Output Hp | 1 hp |
| Output Power | 0.75 kW |
| Output Rating | 0.75 kW , 1 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 85.5 |
| Power Factor @ 50 % | 82.5 |
| Power Factor @ 75 % | 84 |
| Product Datasheet | weg-00118et3e143jm-sg.pdf |
| Rated Speed | 1460 RPM |
| Rated Torque | 3.6 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 , 1.15 (1 @ 208V) |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 1.94% , 2.67% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 2.98 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Duty Cycle | Frame Material | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03018ET3E286T-W22G | 60 Hz | - | 30 hp | Continuous | Cast Iron | 4 | 1800 RPM | 22.4-26/13A | €6,374.11 | |
 |
10018ET3E405T-W22G | 60 Hz | 1.25 | 100 hp | S1 | Cast Iron | 4 | 1800 RPM | 76/38A | €14,765.27 | |
 |
04018ET3E324T-W22G | 60 Hz | - | 40 hp | S1 | Cast Iron | 4 | 1800 RPM | 34/17A | €7,977.95 | |
 |
01518ET3E254JM-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,390.61 | |
 |
01518ET3E254T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,122.55 | |
|
02536ET3E284TS-W22G | 60 Hz | 1.25 | 25 hp | S1 | Cast Iron | 2 | 3600 RPM | 16/8A | €5,968.17 | |
 |
00152ET3E182T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 6 | 1200 RPM | 2.73/1.36A | €985.49 |
