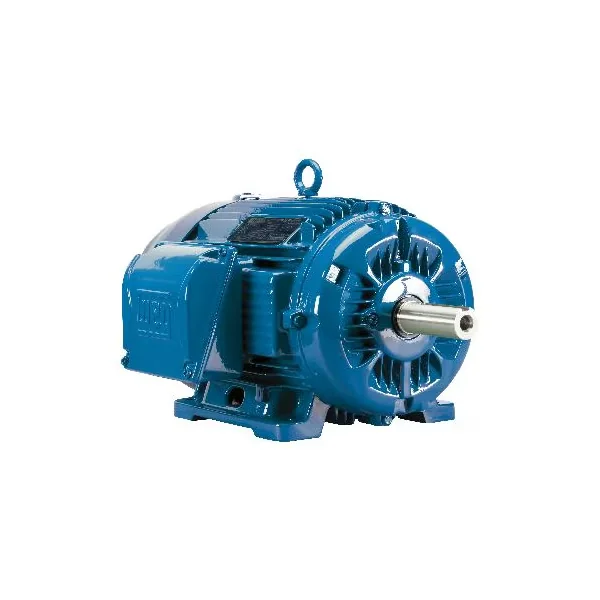

WEG 01512ET3E284T-W22G Electric Motor, 15Hp, 60Hz, 1200 Rpm | BB7ZLR

WEG 01512ET3E284T-W22G 12769857 Air Handling Motor, 15 HP, 1200 RPM, 208/230/460 V, 3 Phase, TEFC, 284/6T Frame, Footed, HVAC with Internal Shaft Grounding Rings

Item: BB7ZLRModel: 01512ET3E284T-W22GCross Ref: 12769857
Check Availability
In Stock

Get it by Friday, Jul 10

€4,162.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 35.8/17.9A
Bearing Cap Yes
Break Down Torque 260%
Cold Locked Rotor Time 36 sec.
Connection Cables Quantity 12
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 69%
Efficiency @ 1 % 84%
Efficiency @ 75 % 80%
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Type Without
Frame 284/6T
Frame Material Cast Iron
Frame Size 284T
Frequency 50/60 Hz , 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 20 sec.
Hp 15 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 229/115A
Locked Rotor Torque 229%
Lrc 6.4X(Code G)
Main Terminal Box Hole Size 1 1/2"
Main Terminal Box Hole Type NPT
Moment Of Inertia 7.85 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1175 RPM
Mounting Foot Mounted
No Load Amps 14/7A
No. Of Poles 6
Noise Level 59 dBA
Output 15 hp
Output Rating 15 hp
Overload Protector Without Overload Protector
Painting RAL5009 203A (ISO 12944-C2)
Phase 3
Power Factor @ 1 % 91.7
Power Factor @ 50 % 91
Power Factor @ 75 % 91.7
Product Datasheet weg-01512et3e284t-w22g.pdf
Regreasing System At Drive End And Non Drive End
Rotation CW, CCW
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.08%
Speed 1100-1200 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 67 lbs.-ft.
Tropicalized Painting Without
Voltage 208-230/460V , 230/460V AC

Shipping Info:

Ship weight (kg) 180.9
Ship height (cm)32.26
Ship length (cm)70.94
Ship width (cm)37.08
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyService FactorHpL. R. AmpsAmpsDuty CycleFrame MaterialPrice
WEG 03018ET3E286T-W22G Electric Motor, 30Hp, 60Hz, 1800 Rpm | BB3UBF 03018ET3E286T-W22G208-230/460V AC60 Hz-30 hp473-428/214A77.6-70.2/35.1AContinuousCast Iron€6,374.11
WEG 10018ET3E405T-W22G Electric Motor, 100Hp, 60Hz, 1800 Rpm | BB4TQZ 10018ET3E405T-W22G230/460V AC60 Hz1.25100 hp1650/825A226/113AS1Cast Iron€14,765.27
WEG 04018ET3E324T-W22G Electric Motor, 40Hp, 60Hz, 1800 Rpm | BB6DPG 04018ET3E324T-W22G230/460V AC60 Hz-40 hp575/287A94.2/47.1AS1Cast Iron€7,977.95
WEG 01518ET3E254JM-SG Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB6HVM 01518ET3E254JM-SG230/460V AC60 Hz1.15-237/118A36.4/18.2AS1Rolled Steel€3,390.61
WEG 01518ET3E254T-SG Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB6JKN 01518ET3E254T-SG230/460V AC60 Hz1.15-237/118A36.4/18.2AS1Rolled Steel€3,122.55
WEG 02536ET3E284TS-W22G Electric Motor, 25Hp, 60Hz, 3600 Rpm | BB7BQH 02536ET3E284TS-W22G230/460V AC60 Hz1.2525 hp363/181A57.6/28.8AS1Cast Iron€5,968.17
WEG 00152ET3E182T-SG Electric Motor, 1 1/2Hp, 60Hz, 1200 Rpm | BB7JYE 00152ET3E182T-SG230/460V AC60 Hz1.15-30.6/15.3A4.44/2.22AS1Rolled Steel€985.49
