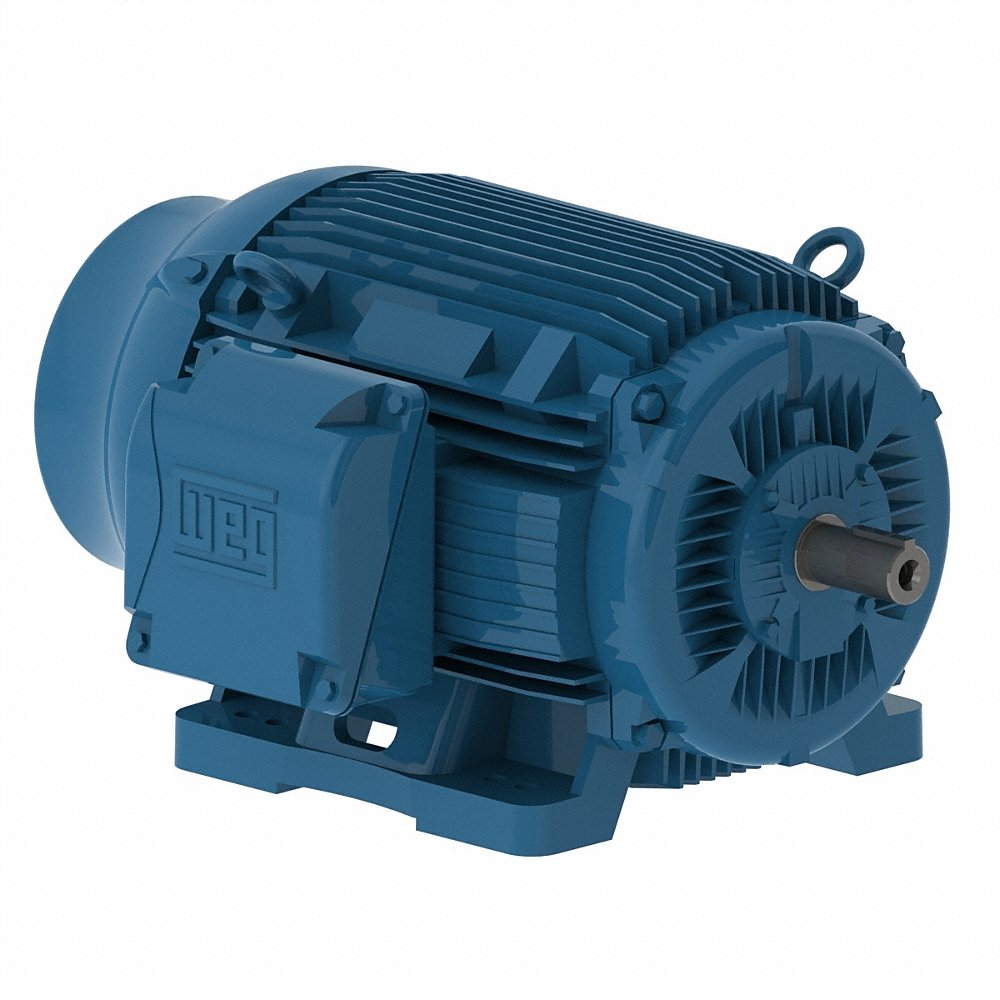

WEG 06036ET3E364TS-W22G 12770002 Pump Motor, 60 HP, 3600 RPM, 208/230/460V, TEFC, 364/5TS, Footed, HVAC With Bearing Protection
3600 rpm
60 hp
365TS
Get it by Thursday, Aug 27
5.00% off
€14,569.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 134/67A , 74.8A |
| Bearing Cap | Yes |
| Cold Locked Rotor Time | 21 sec. , 25 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 81% |
| Efficiency @ 1 % | 90% |
| Efficiency @ 75 % | 88% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 364/5TS |
| Frame Material | Cast Iron |
| Frame Size | 364TS |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 14 sec. |
| Hp | 60 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| L. R. Amps | 471A , 884/442A |
| Locked Rotor Time(hot) | 12 sec. |
| Locked Rotor Torque | 200% |
| Lrc | 6.3x(Code G) , 6.6X(Code G) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 10.6 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3555 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | Yes |
| No Load Amps | 32/16A |
| No. Of Poles | 2 |
| Noise Level | 79 dBA |
| Output | 60 hp |
| Output Rating | 60 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 93.6 |
| Power Factor @ 75 % | 93 |
| Product Datasheet | weg-06036et3e364ts-w22g.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Speed | 3400-3600 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 105 K , 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 88.6 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 432.9 |
| Ship height (cm) | 80 |
| Ship length (cm) | 115 |
| Ship width (cm) | 85 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Frequency | Service Factor | Hp | Duty Cycle | Frame Material | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03018ET3E286T-W22G | 60 Hz | - | 30 hp | Continuous | Cast Iron | 4 | 1800 RPM | 22.4-26/13A | €6,374.11 | |
 |
10018ET3E405T-W22G | 60 Hz | 1.25 | 100 hp | S1 | Cast Iron | 4 | 1800 RPM | 76/38A | €14,765.27 | |
 |
04018ET3E324T-W22G | 60 Hz | - | 40 hp | S1 | Cast Iron | 4 | 1800 RPM | 34/17A | €7,977.95 | |
 |
01518ET3E254JM-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,390.61 | |
 |
01518ET3E254T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 4 | 1800 RPM | 17.3/8.65A | €3,122.55 | |
|
02536ET3E284TS-W22G | 60 Hz | 1.25 | 25 hp | S1 | Cast Iron | 2 | 3600 RPM | 16/8A | €5,968.17 | |
 |
00152ET3E182T-SG | 60 Hz | 1.15 | - | S1 | Rolled Steel | 6 | 1200 RPM | 2.73/1.36A | €985.49 |
