WEG General Purpose Three Phase Motors With AEGIS Shaft Grounding Ring, TEFC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Voltage | Frequency | Service Factor | Hp | L. R. Amps | Amps | Duty Cycle | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 05018ET3E326T-W22G | 208-230/460V AC | 60 Hz | - | 50 hp | 812-732/367A | 131-118/59.2A | S1 | Cast Iron | €8,212.55 | |
| A | 02518ET3E284T-W22G | 208-230/460V AC | 60 Hz | - | 25 hp | 404-366/183A | 65.2-59/29.5A | S1 | Cast Iron | €5,251.79 | |
| B | 06018ET3E364T-W22G | 208-230/460V AC | 60 Hz | - | 60 hp | 936-849/425A | 151-137/68.5A | S1 | Cast Iron | €14,846.42 | |
| C | 03018ET3E286T-W22G | 208-230/460V AC | 60 Hz | - | 30 hp | 473-428/214A | 77.6-70.2/35.1A | Continuous | Cast Iron | €6,374.11 | |
| D | 07518ET3E365T-W22G | 208-230/460V AC | 60 Hz | - | 75 hp | 1190-1114/558A | 106A | Continuous | Cast Iron | €10,934.48 | |
| E | 00118ET3E143JM-SG | 230/460V | 60 Hz | 1.15 | 1 hp | 25.3/12.6A | 1.62A | Continuous | Rolled Steel | €911.50 | |
| F | 02018ET3E256JM-SG | 230/460V | 60 Hz | - | 20 hp | 331/165A | 21.6A | Continuous | Rolled Steel | €3,685.40 | |
| G | 00158ET3E145JM-SG | 230/460V | 60 Hz | 1.15 | 1 1/2 hp | 33.1/16.6A | 4.04/2.02A | Continuous | Rolled Steel | €946.10 | |
| A | 04018ET3E324T-W22G | 230/460V AC | 60 Hz | - | 40 hp | 575/287A | 94.2/47.1A | S1 | Cast Iron | €7,977.95 | |
| H | 00712ET3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | 108/53.9A | 20/9.98A | S1 | Rolled Steel | €3,471.38 | |
| I | 00212ET3E184T-SG | 230/460V AC | 50/60 Hz | 1.15 | - | 45/22.5A | 6/3A | Continuous | Rolled Steel | €1,053.47 | |
| B | 05012ET3E365T-W22G | 230/460V AC | 60 Hz | 1.25 | 50 hp | 735/367A | 115/57.4A | S1 | Cast Iron | €10,720.25 | |
| A | 05036ET3E326TS-W22G | 230/460V AC | 60 Hz | 1.25 | 50 hp | 707/353A | 112/56.1A | S1 | Cast Iron | €6,548.09 | |
| J | 00158ET3E145T-SG | 230/460V AC | 60 Hz | 1.15 | 1 1/2 hp | 33.1/16.6A | 4.04/2.02A | Continuous | Rolled Steel | €739.72 | |
| K | 00312ET3E213T-SG | 230/460V AC | 60 Hz | 1.15 | 3 hp | 53.4/26.7A | 8.34/4.17A | Continuous | Rolled Steel | €1,411.40 | |
| K | 02036ET3E256T-SG | 230/460V AC | 60 Hz | - | 20 hp | 300/150A | 19A | Continuous | Rolled Steel | €2,723.60 | |
| L | 06036ET3E364TS-W22G | 230/460V AC | 60 Hz | 1.25 | 60 hp | 884/442A | 74.8A | Continuous | Cast Iron | €15,336.41 | |
| M | 00336ET3E182T-SG | 230/460V AC | 60 Hz | 1.15 | 3 hp | 64.6/32.3A | 4.29A | Continuous | Rolled Steel | €996.23 | |
| I | 00518ET3E184T-SG | 230/460V AC | 60 Hz | 1.15 | - | 90.9/45.4A | 13/6.49A | S1 | Rolled Steel | €1,373.18 | |
| D | 07536ET3E365TS-W22G | 230/460V AC | 60 Hz | 1.25 | 75 hp | 1097/549A | 91.4A | Continuous | Cast Iron | €11,376.67 | |
| J | 00218ET3E145T-SG | 230/460V AC | 60 Hz | 1.15 | 2 hp | 44.6/22.3A | 37A | Continuous | Rolled Steel | €802.93 | |
| N | 00218ET3E145JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 44.6/22.3A | 5.44/2.72A | S1 | Rolled Steel | €1,023.65 | |
| O | 00336ET3E182JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 64.6/32.3A | 7.34/3.67A | S1 | Rolled Steel | €1,315.95 | |
| P | 01536ET3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 34.8/17.4A | S1 | Rolled Steel | €3,362.87 | |
| Q | 00118ET3E143T-SG | 230/460V AC | 60 Hz | 1.15 | - | 25.3/12.6A | 2.94/1.47A | S1 | Rolled Steel | €946.53 | |
| B | 04012ET3E364T-W22G | 230/460V AC | 60 Hz | 1.25 | 40 hp | 595/298A | 93/46.5A | S1 | Cast Iron | €13,863.96 | |
| N | 00156ET3E143JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 34/17A | 3.74/1.87A | S1 | Rolled Steel | €1,014.12 | |
| H | 00512ET3E215T-SG | 230/460V AC | 60 Hz | 1.15 | - | 80.9/40.4A | 13.5/6.74A | S1 | Rolled Steel | €1,643.66 | |
| R | 03018ET3E286TC-W22G | 230/460V AC | 60 Hz | 1.25 | - | 428/214A | 70.2/35.1A | S1 | Cast Iron | €4,198.69 | |
| P | 02036ET3E256JM-SG | 230/460V AC | 60 Hz | - | - | 300/150A | 45.4/22.7A | S1 | Rolled Steel | €3,812.56 | |
| O | 00518ET3E184JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 90.9/45.4A | 13/6.49A | S1 | Rolled Steel | €1,587.99 | |
| H | 01036ET3E215T-SG | 230/460V AC | 60 Hz | 1.15 | - | 173/86.2A | 23/11.5A | S1 | Rolled Steel | €1,643.66 | |
| H | 01536ET3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 34.8/17.4A | S1 | Rolled Steel | €2,160.61 | |
| H | 01518ET3E254T-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 36.4/18.2A | S1 | Rolled Steel | €3,122.55 | |
| I | 00152ET3E182T-SG | 230/460V AC | 60 Hz | 1.15 | - | 30.6/15.3A | 4.44/2.22A | S1 | Rolled Steel | €985.49 | |
| H | 02018ET3E256T-SG | 230/460V AC | 60 Hz | 1.15 | - | 331/165A | 49.4/24.7A | S1 | Rolled Steel | €3,631.41 | |
| I | 00318ET3E182T-SG | 230/460V AC | 60 Hz | 1.15 | 3 hp | 67.1/33.5A | 7.62/3.81A | S1 | Rolled Steel | €1,140.74 | |
| Q | 00112ET3E145T-SG | 230/460V AC | 60 Hz | 1.15 | - | 18.3/9.16A | 3.16/1.58A | S1 | Rolled Steel | €798.17 | |
| S | 15018ET3E445TC-W22G | 230/460V AC | 60 Hz | 1.15 | - | 2244/1122A | 340/170A | S1 | Cast Iron | €22,424.56 | |
| S | 12518ET3E444TC-W22G | 230/460V AC | 60 Hz | 1.15 | - | 1807/904A | 278/139A | S1 | Cast Iron | €19,364.74 | |
| B | 10018ET3E405T-W22G | 230/460V AC | 60 Hz | 1.25 | 100 hp | 1650/825A | 226/113A | S1 | Cast Iron | €14,765.27 | |
| C | 02536ET3E284TS-W22G | 230/460V AC | 60 Hz | 1.25 | 25 hp | 363/181A | 57.6/28.8A | S1 | Cast Iron | €5,968.17 | |
| T | 01512ET3E284T-W22G | 230/460V AC | 60 Hz | 1.25 | 15 hp | 229/115A | 35.8/17.9A | Continuous | Cast Iron | €4,162.85 | |
| H | 01018ET3E215T-SG | 230/460V AC | 60 Hz | - | - | 171/85.4A | 24.4/12.2A | S1 | Rolled Steel | €2,164.30 | |
| U | 00536ET3E184JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 92/46A | 5.9/11.8A | S1 | Rolled Steel | €1,508.04 | |
| V | 00236ET3E145T-SG | 230/460V AC | 60 Hz | 1.15 | - | 48.9/24.5A | 4.94/2.47A | S1 | Rolled Steel | €780.28 | |
| W | 02512ET3E324T-W22G | 230/460V AC | 60 Hz | 1.25 | 25 hp | 382/191A | 61.6/30.8A | Continuous | Cast Iron | €5,884.80 | |
| I | 00536ET3E184T-SG | 230/460V AC | 60 Hz | 1.15 | - | 92/46A | 5.9/11.8A | S1 | Rolled Steel | €1,109.56 | |
| H | 00718ET3E213T-SG | 230/460V AC | 60 Hz | 1.15 | 7 1/2 hp | 134/67A | 18.4/9.18A | S1 | Rolled Steel | €1,896.65 | |
| A | 02012ET3E286T-W22G | 230/460V AC | 60 Hz | 1.25 | 20 hp | 300/150A | 48.4/24.2A | S1 | Cast Iron | €4,938.55 | |
| A | 04036ET3E324TS-W22G | 230/460V AC | 60 Hz | 1.25 | 40 hp | 583/292A | 92.6/46.3A | S1 | Cast Iron | €9,365.95 | |
| X | 03036ET3E286TS-W22G | 230/460V AC | 60 Hz | 1.25 | 30 hp | 431/215A | 68.4/34.2A | Continuous | Cast Iron | €4,474.97 | |
| N | 00236ET3E145JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 48.9/24.5A | 4.94/2.47A | S1 | Rolled Steel | €995.02 | |
| H | 01012ET3E256T-SG | 230/460V AC | 60 Hz | - | - | 149/74.5A | 27.6/13.8A | S1 | Rolled Steel | €2,737.46 | |
| V | 00156ET3E143T-SG | 230/460V AC | 60 Hz | 1.15 | - | 34/17A | 3.74/1.87A | S1 | Rolled Steel | €731.35 | |
| A | 03012ET3E326T-W22G | 230/460V AC | 60 Hz | 1.25 | 30 hp | 449/224A | 72.4/36.2A | S1 | Cast Iron | €6,498.83 | |
| H | 00736ET3E213T-SG | 230/460V AC | 60 Hz | 1.15 | - | 132/65.9A | 17.3/8.67A | S1 | Rolled Steel | €1,407.84 | |
| P | 01518ET3E254JM-SG | 230/460V AC | 60 Hz | 1.15 | - | 237/118A | 36.4/18.2A | S1 | Rolled Steel | €3,390.61 | |

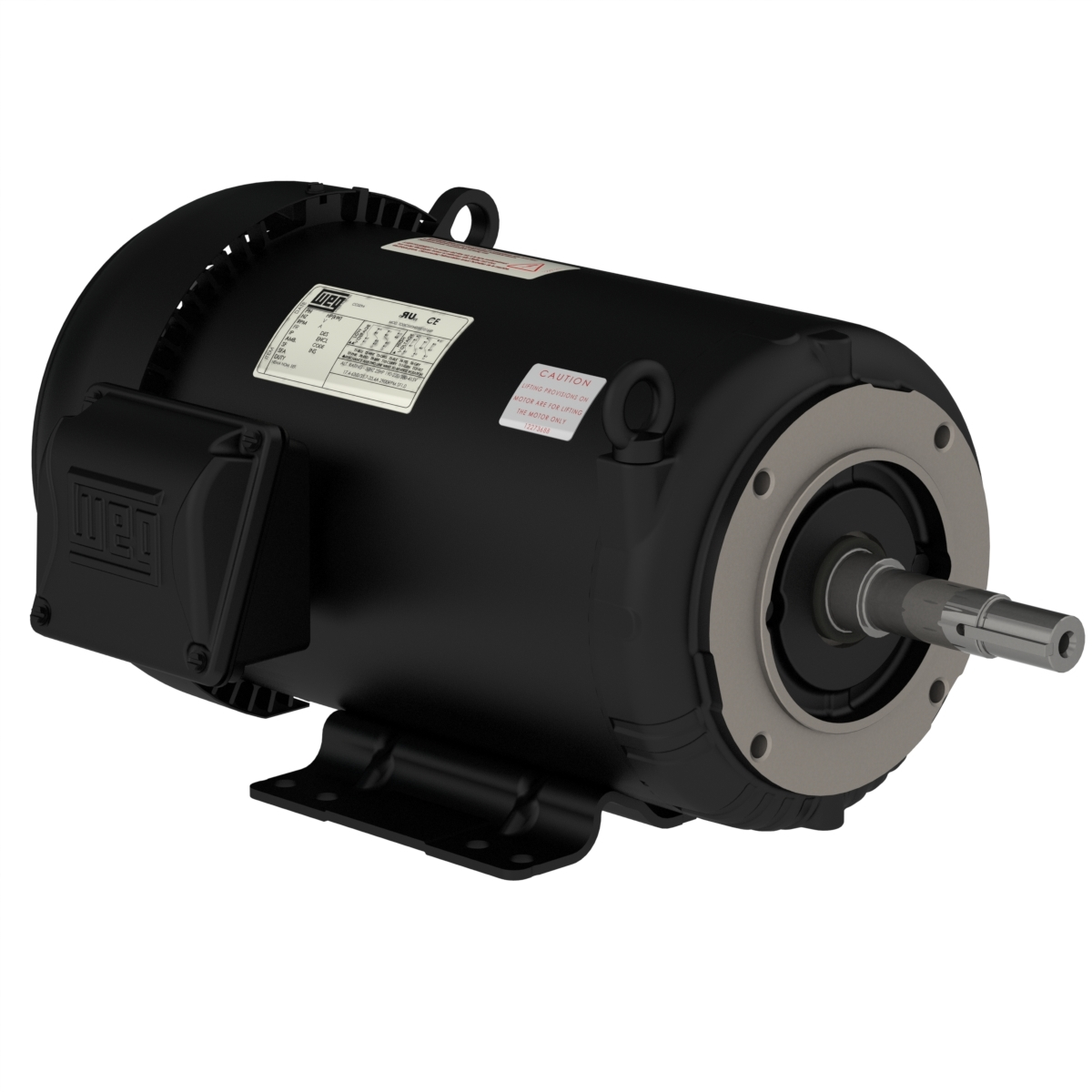

| Y | 00318ET3E182JM-SG | 415V | - | - | - | 34.6A | 4.32A | - | - | €1,444.82 |
