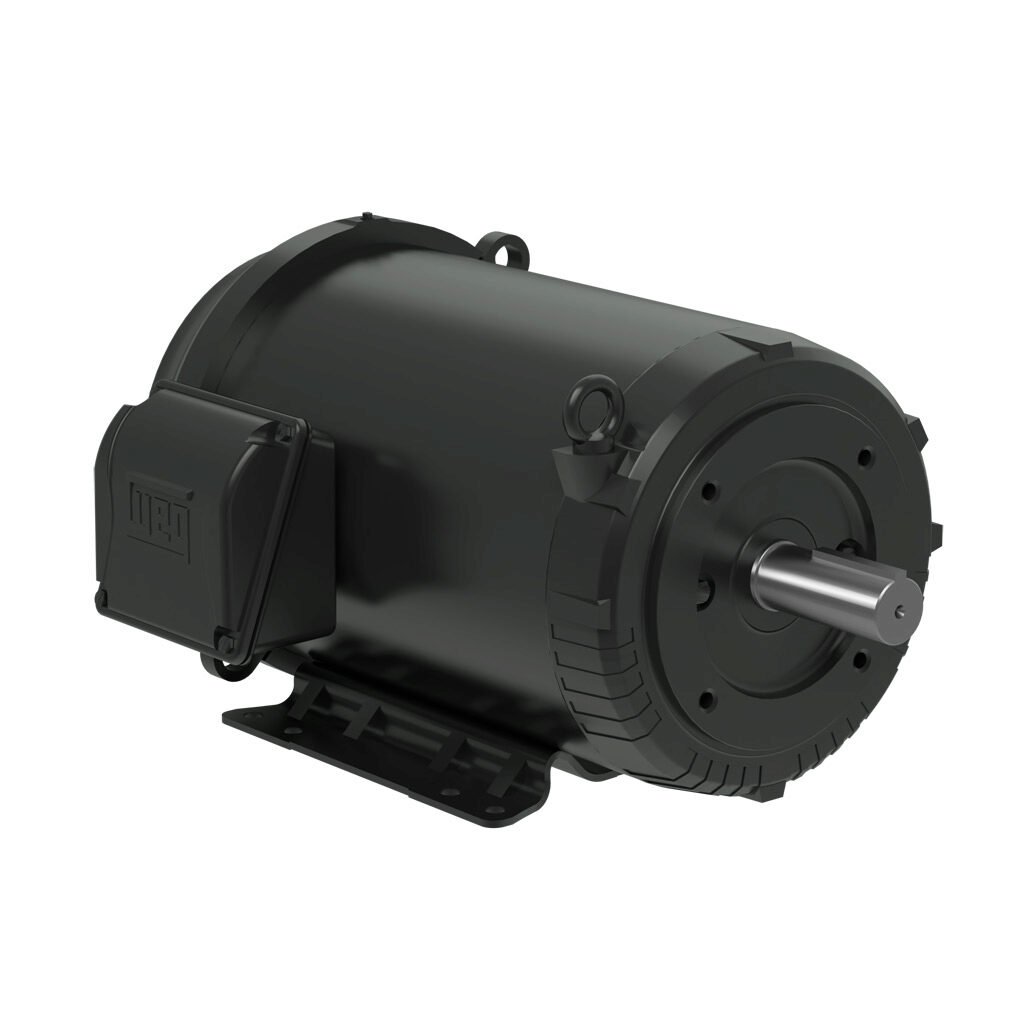

WEG 02018ET3E256TC-S Electric Motor, 20Hp, 60Hz, 1800 Rpm | BB9BWZ

WEG 02018ET3E256TC-S 14122316 Electric Motor, 20Hp, 60Hz, 1800 Rpm

Item: BB9BWZModel: 02018ET3E256TC-SCross Ref: 14122316
Check Availability
In Stock

Get it by Friday, Dec 19

€2,286.61 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 300%
Cold Locked Rotor Time 28 sec.
Connection Cables Quantity 12
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Continuous
Efficiency 93%
Efficiency At 1 % 82%
Efficiency At 50 % 66%
Efficiency At 75 % 77%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type C
Frame 254/6TC
Frame Material Rolled Steel
Frame Size 256TC
Frequency 50/60 Hz
Grade Grade 1045
Grounding Lugs Superior
Horsepower 20 hp
Hot Locked Rotor Time 16 sec.
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Ip Rating IP55
L. R. Amps 331/165A
Locked Rotor Torque 270%
Lrc 6.7X(Code H)
Main Terminal Box Hole Size 1.732"
Moment Of Inertia 2.64 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1765 RPM
Motor Type Induction
Mounting Foot Mounted
Mounting Orientation Horizontal, Vertical
Nameplate Rpm 1765 RPM
No Load Amps 22.2/11.1A
No. Of Poles 4
Noise Level 68 dBA
Number Of Phases 3
Output 20 hp
Output Rating 20 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 93
Power Factor At 50 % 91.7
Power Factor At 75 % 92.4
Rated Current 49.4/24.7A
Rated Torque 59.5 lbs.-ft.
Rated Voltage 230/460V AC
Regreasing System At Drive End And Non Drive End
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Diameter 1 5/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460V

Shipping Info:

Ship weight (kg) 119.7
Ship height (cm)48.26
Ship length (cm)48.26
Ship width (cm)45.72
Country of OriginBR
