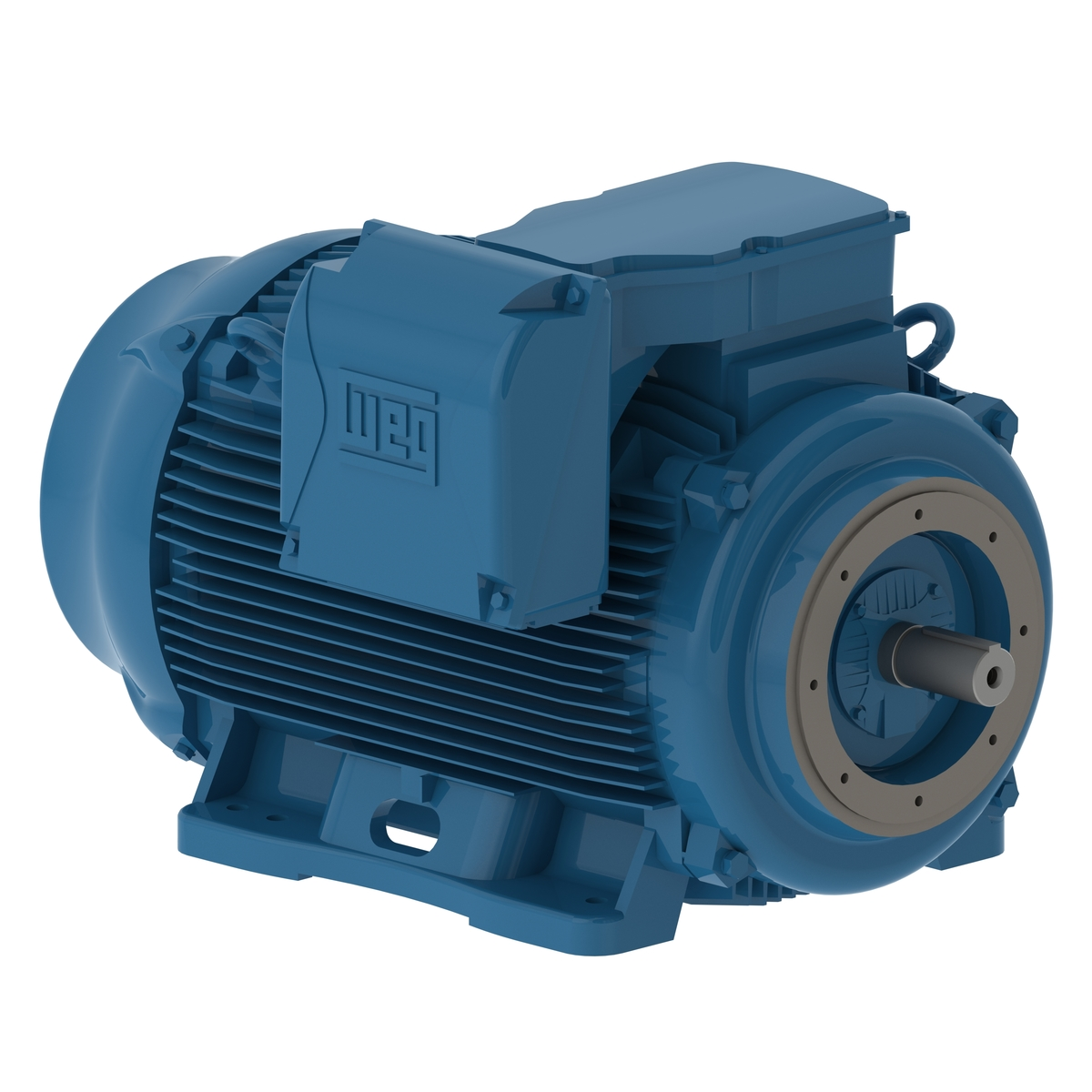

WEG 25018ET3G447TSC-W22 Electric Motor, 250Hp, 60Hz, 1800 Rpm | BB9KNY

WEG 25018ET3G447TSC-W22 12274697 General Purpose Motor, TEFC Cast Iron 445/7TSC Frame, 250 HP, 1480 RPM, 415 V

Item: BB9KNYModel: 25018ET3G447TSC-W22Cross Ref: 12274697
Check Availability
In Stock

Get it by Wednesday, Aug 26

€31,841.16 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 281A
Balancing Method 1/2 Key
Bearing Cap Yes
Break Down Torque 240%
Cable Press Material Sem
Cold Locked Rotor Time 18 sec.
Composition Cast Iron
Connection Cables Quantity 12
De Bearing Seal Yes
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 95.8%
Efficiency 75% 96.2%
Efficiency @ 100% 96.2%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange C
Flange Type C
Frame 445/7TSC
Frame Material Cast Iron
Frequency 50 Hz , 60 Hz
Grade Grade 1010/20
Grounding Lugs Double
Grounding Lugs Type Double
Hp 250 hp
Impregnation Method Constant Resin Flow
Insulation Class Class F
L. R. Amps 1827A , 1915A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time(hot) 10 sec. , 15 sec.
Locked Rotor Torque 229%
Lrc 6.1x(Code F)
Main Terminal Box Hole 2"
Main Terminal Box Type NPT
Material Carbon Steel
Moment Of Inertia (j) 89.6 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting F-1 , Foot Mounted
Nde Bearing Seal Yes
No Load Amps 90A
No. Of Poles 4
Noise Level 73 dBA
Output Rating 250 hp
Overload Protection No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 100% 0.86
Power Factor 50% 0.75
Power Factor 75% 0.83
Regreasing System At Drive End And Non-Drive End
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.11%
Speed 1700-1800 RPM , 1780 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 738 lbs.-ft.
Tropicalized Painting Without
Voltage 460V , 460V AC

Shipping Info:

Ship weight (kg) 1062.45
Ship height (cm)48.26
Ship length (cm)114.18
Ship width (cm)45.72
Country of OriginBR
