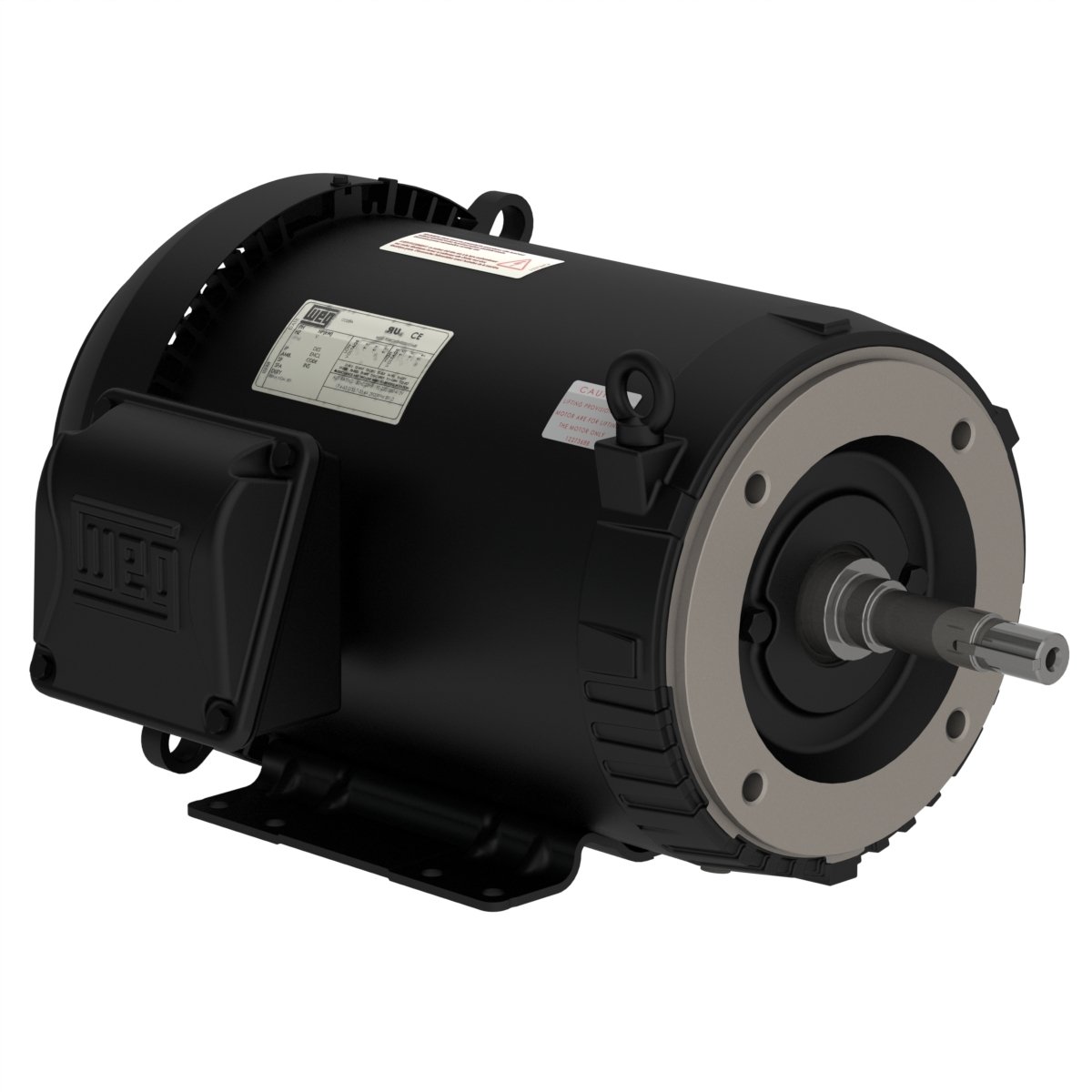

WEG 02018ET3V256JM-S 13413896 Pump Motor, 20 HP, 1800 RPM, 200/400V, 25.6/12.8 A No Load Current, TEFC, 256JM, Footed, Close CoupLED Pump
1800 rpm
20 hp
256JM
Get it by Thursday, Aug 20
€3,302.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 28.4/56.8A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 28 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 93% |
| Efficiency 50% | 91.7% |
| Efficiency 75% | 92.4% |
| Efficiency @ 100% | 93% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 256JM |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JM |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Superior |
| Grounding Lugs Type | Superior |
| Hp | 20 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 190/381A |
| Locked Rotor Time (cold) | 28 sec. |
| Locked Rotor Time(hot) | 16 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 6.7x(Code H) |
| Main Terminal Box Hole | 1.732" |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 2.64 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 254-6JM |
| Nema Mount | C Face With Base |
| No Load Amps | 12.8/25.6A |
| No. Of Poles | 4 |
| Noise Level | 68 dBA |
| Output Hp | 20 hp |
| Output Kw | 15 kW |
| Output Rating | 20 hp |
| Output Speed | 1765 RPM |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.82 |
| Power Factor 50% | 0.66 |
| Power Factor 75% | 0.77 |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 1.94% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 59.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 200/400V , 200/400V AC |
Shipping Info:
| Ship weight (kg) | 126.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
