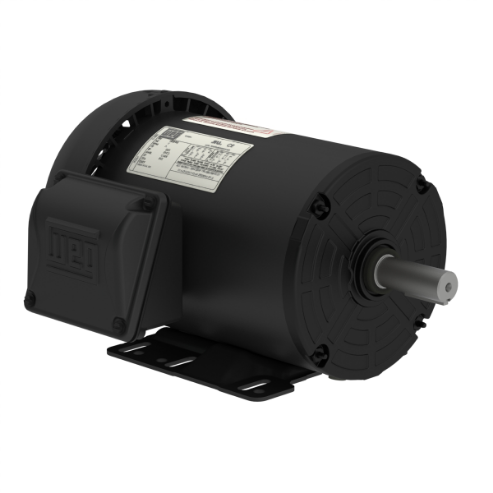

WEG 00118ET3H143T-S 13287425 Electric Motor, 1Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
€547.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 34 sec. |
| Composition | Steel |
| Connection Cables Quantity | 6 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 75% |
| Efficiency At 50 % | 52% |
| Efficiency At 75 % | 66% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 143/5T |
| Frame Material | Rolled Steel |
| Frame Size | 143T |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 19 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 10.1A |
| Locked Rotor Torque | 280% |
| Lrc | 8.6X(Code M) |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.1232 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1765 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 0.712A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 82.5 |
| Power Factor At 75 % | 84 |
| Rated Current | 1.18A |
| Rated Torque | 2.98 lbs.-ft. |
| Rated Voltage | 575V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 115.06 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Voltage | Service Factor | Full Load Amps | Hp | Nameplate Rpm | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 06018ST3QIE364T-W22 | 60 Hz | 460V | 1 | 68.3A | 60 hp | 1800 RPM | Rigid Base | - | €15,351.09 | |
| 06036ST3QIE364TS-W22 | 60 Hz | 460V AC | 1.25 | 67A | 60 hp | 3600 RPM | Rigid Base | - | €16,499.73 | |
| 07518ST3QIE365T-W22 | 60 Hz | 460V AC | 1.25 | 84.1A | 75 hp | 1800 RPM | Rigid Base | - | €17,138.11 | |
| 07536ST3QIE365TS-W22 | 60 Hz | 460V AC | 1.25 | 81.9A | 75 hp | 3600 RPM | Rigid Base | - | €18,796.23 | |
| 10018ST3QIE405T-W22 | 60 Hz | 460V AC | 1.25 | 111A | 100 hp | 1800 RPM | Rigid Base | - | €23,498.96 | |
| 10018ST3QIERB405T-W2 | 60 Hz | 460V AC | 1.25 | 111A | 100 hp | 1800 RPM | Rigid Base | - | €21,424.16 | |
| 10036ST3QIE405TS-W22 | 60 Hz | 460V AC | 1 | 110A | 100 hp | 3600 RPM | Rigid Base | - | €24,111.79 |
