GRAINGER Wire Ferrules
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1| Style | Model | Min. Wire Size | Max. Wire Size | Insulation Color | Barrel Dia. | Max. Operating Temp. | Strip Length | Max. Conductors | Ferrule Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

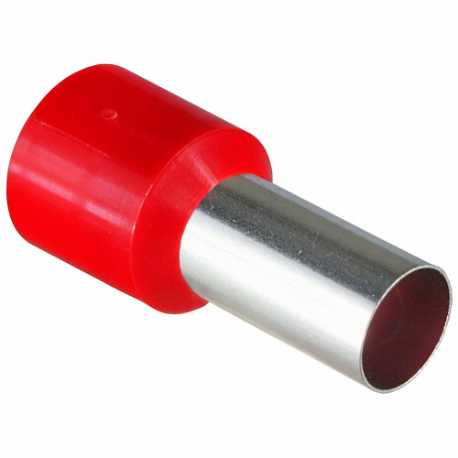

| A | 797UY3 | 2 AWG | 2 AWG | Red | 1/2" | 221°F | 23/32" | 1 | 0.34" | 50 | €30.38 | |

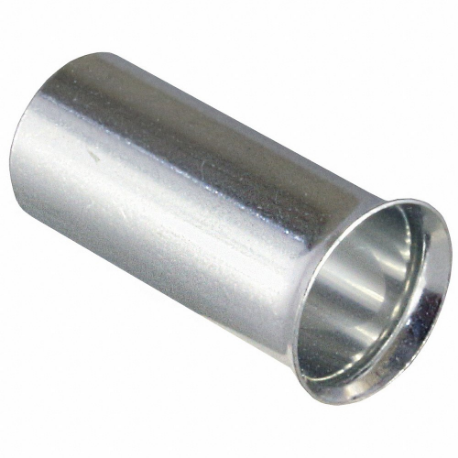

| B | 797UX7 | 4 AWG | 4 AWG | Bare | 0.3" | 302°F | - | 1 | 0.3" | 50 | €14.62 | |
| C | 797UY4 | 6 AWG | 6 AWG | Blue | 0.35" | 221°F | 19/32" | 1 | - | 50 | €14.13 | |

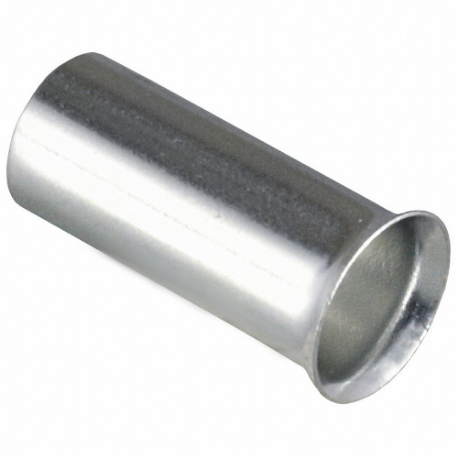

| D | 797UX8 | 6 AWG | 6 AWG | Bare | 0.24" | 302°F | 19/32" | 1 | - | 50 | €9.38 | |

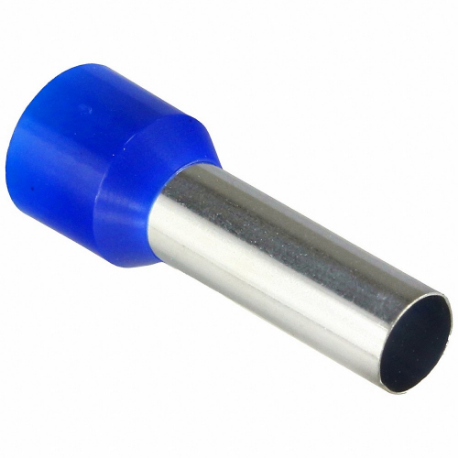

| E | 797UY5 | 6 AWG | 6 AWG | Blue | 0.35" | 221°F | 27/32" | 1 | - | 50 | €18.25 | |

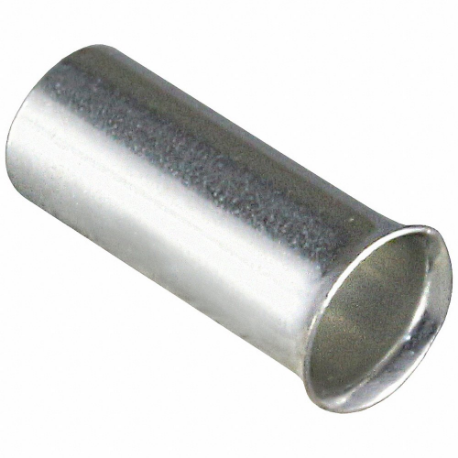

| F | 797UX9 | 8 AWG | 8 AWG | Bare | 0.19" | 302°F | 15/32" | 1 | 0.19" | 100 | €12.14 | |

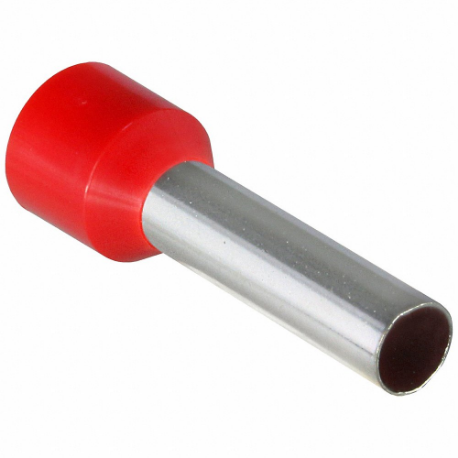

| G | 797UY7 | 8 AWG | 8 AWG | Red | 0.3" | 221°F | 27/32" | 1 | 0.19" | 100 | €26.52 | |

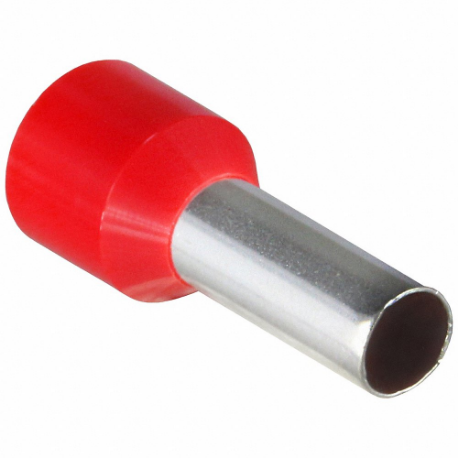

| H | 797UY6 | 8 AWG | 8 AWG | Red | 0.3" | 221°F | 19/32" | 1 | 0.19" | 100 | €21.35 | |

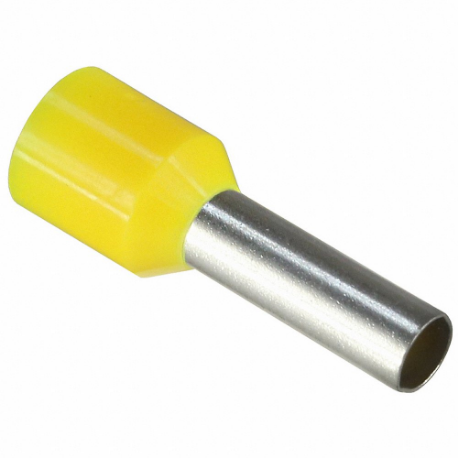

| I | 797UY8 | 10 AWG | 10 AWG | Yellow | 1/4" | 221°F | 9/16" | 1 | 0.15" | 100 | €17.19 | |

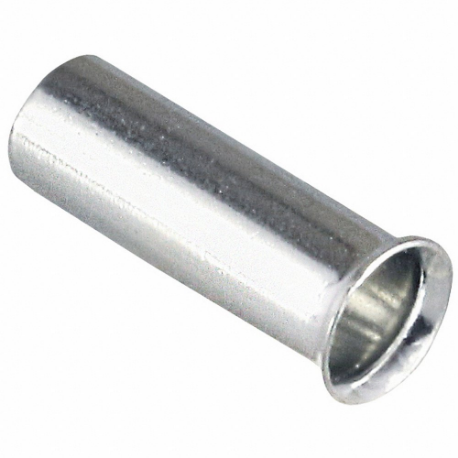

| J | 797UY0 | 10 AWG | 10 AWG | Bare | 0.15" | 302°F | 15/32" | 1 | 0.15" | 100 | €9.84 | |
| K | 797UY9 | 10 AWG | 10 AWG | Yellow | 1/4" | 221°F | 13/16" | 1 | 0.15" | 100 | €22.07 | |
| L | 797UZ0 | 12 AWG | 12 AWG | Gray | 0.19" | 221°F | 15/32" | - | 0.13" | 100 | €13.37 | |

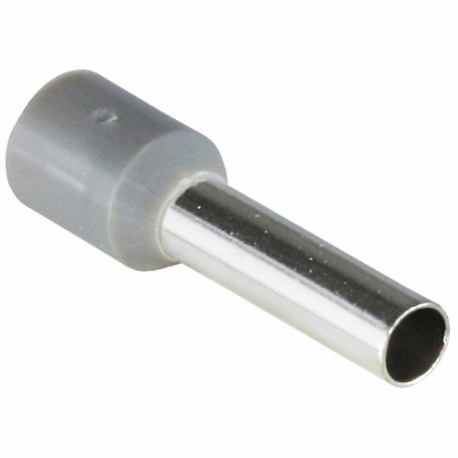

| M | 797UZ1 | 12 AWG | 12 AWG | Gray | 0.19" | 221°F | 9/16" | 1 | 0.13" | 100 | €15.32 | |

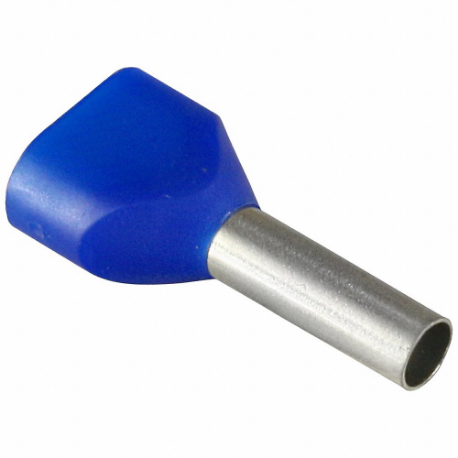

| N | 797V12 | 14 AWG | 14 AWG | Blue | 0.17" | 221°F | 19/32" | 2 | 0.13" | 100 | €15.34 | |

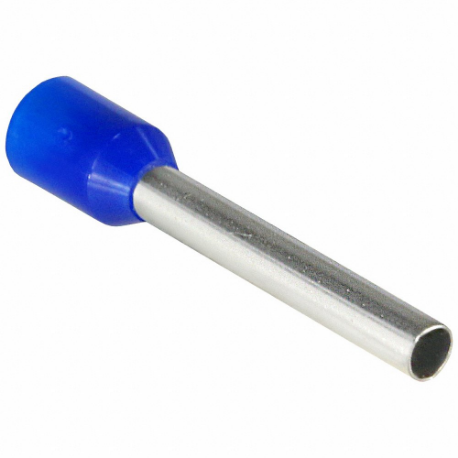

| O | 797UZ4 | 14 AWG | 14 AWG | Blue | 0.17" | 221°F | 13/16" | 1 | 0.1" | 100 | €12.68 | |

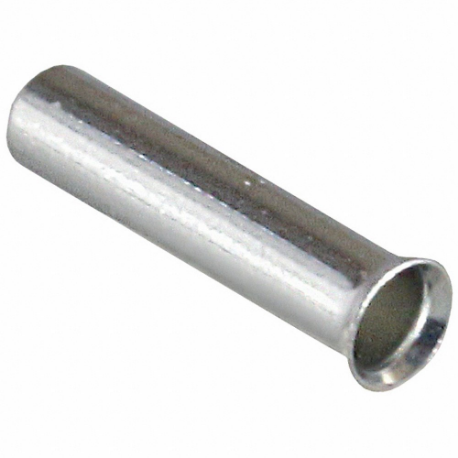

| P | 797UY1 | 14 AWG | 14 AWG | Bare | 0.1" | 302°F | 15/32" | 1 | 0.1" | 100 | €6.13 | |

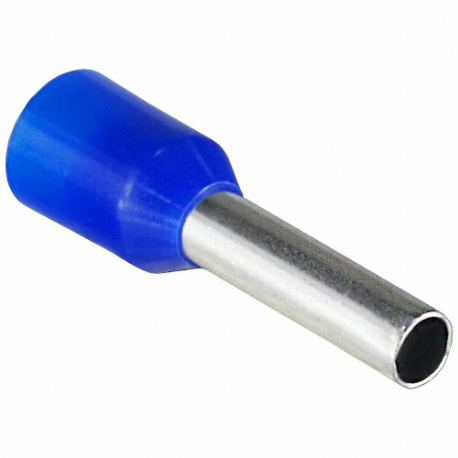

| Q | 797UZ2 | 14 AWG | 14 AWG | Blue | 0.17" | 221°F | 13/32" | - | 0.1" | 100 | €8.26 | |

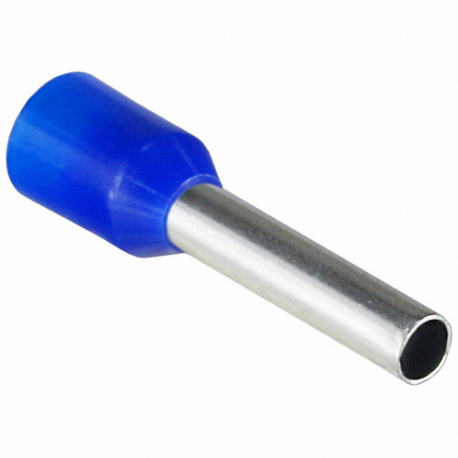

| R | 797UZ3 | 14 AWG | 14 AWG | Blue | 0.17" | 221°F | 9/16" | 1 | 0.1" | 100 | €10.00 | |

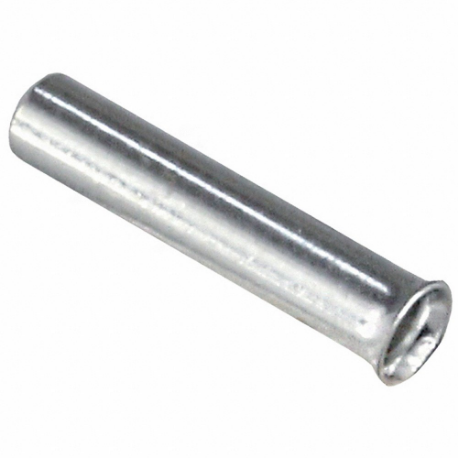

| S | 797UY2 | 16 AWG | 16 AWG | Bare | 2/25" | 302°F | 3/8" | 1 | 2/25" | 100 | €5.09 | |

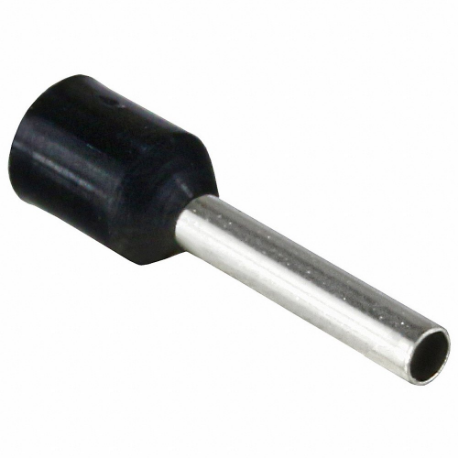

| T | 797UZ6 | 16 AWG | 16 AWG | Black | 0.14" | 221°F | 15/32" | 1 | 2/25" | 100 | €7.68 | |

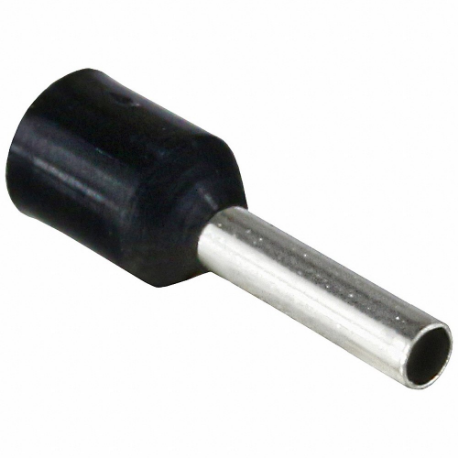

| U | 797UZ5 | 16 AWG | 16 AWG | Black | 0.14" | 221°F | 3/8" | 1 | 2/25" | 100 | €7.04 | |

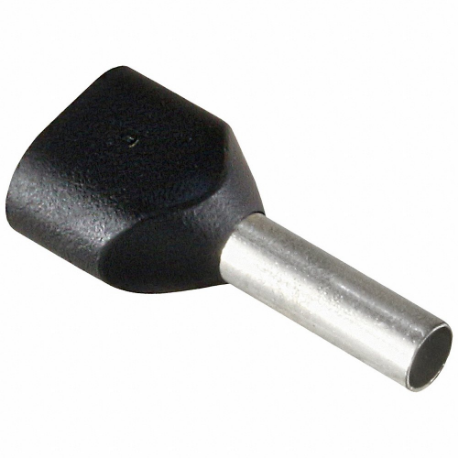

| V | 797V13 | 16 AWG | 16 AWG | Black | 0.14" | 221°F | 3/8" | 2 | 0.1" | 100 | €10.59 | |

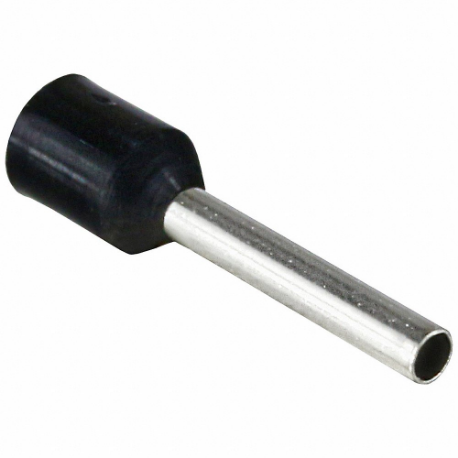

| W | 797UZ7 | 16 AWG | 16 AWG | Black | 0.14" | 221°F | 9/16" | 1 | 2/25" | 100 | €8.39 | |

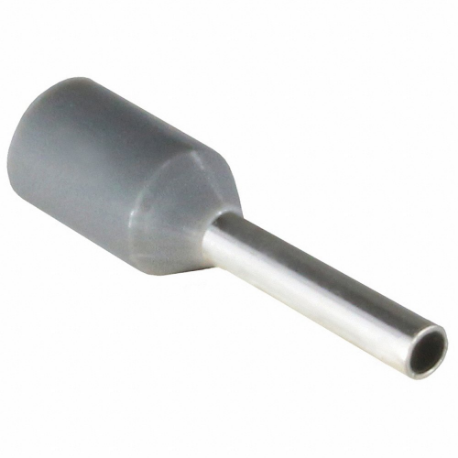

| X | 797UZ9 | 18 AWG | 18 AWG | Gray | 0.11" | 221°F | 3/8" | 1 | 0.06" | 100 | €6.21 | |

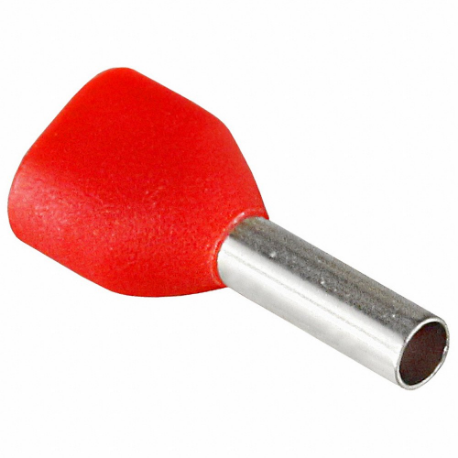

| Y | 797V15 | 18 AWG | 18 AWG | Red | 0.13" | 221°F | 3/8" | 2 | 0.09" | 100 | €10.23 | |

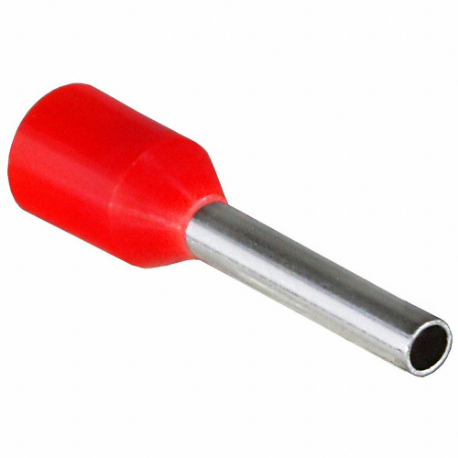

| Z | 797V01 | 18 AWG | 18 AWG | Red | 3/25" | 221°F | 3/8" | 1 | 0.07" | 100 | €6.56 | |

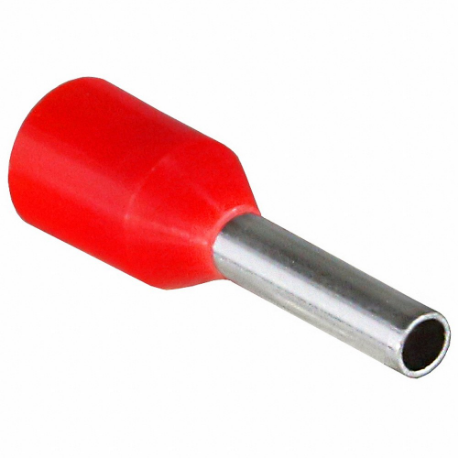

| A1 | 797UZ8 | 18 AWG | 18 AWG | Red | 3/25" | 221°F | 5/16" | 1 | 0.07" | 100 | €5.94 | |

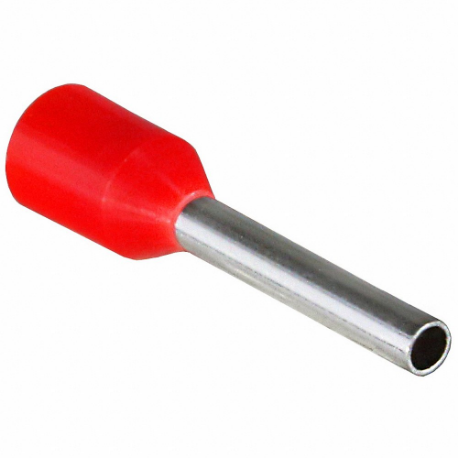

| B1 | 797V03 | 18 AWG | 18 AWG | Red | 3/25" | 221°F | 15/32" | 1 | 0.07" | 100 | €7.14 | |

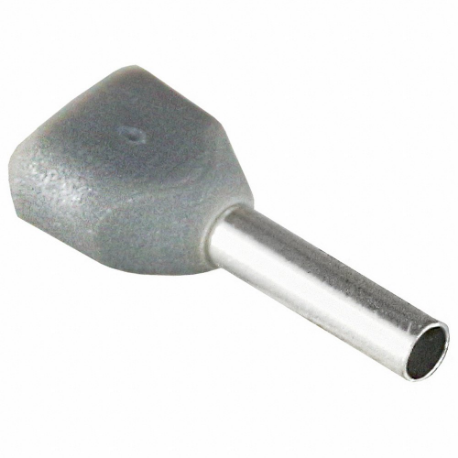

| C1 | 797V14 | 18 AWG | 18 AWG | Gray | 0.11" | 221°F | 3/8" | 2 | 2/25" | 100 | €9.69 | |

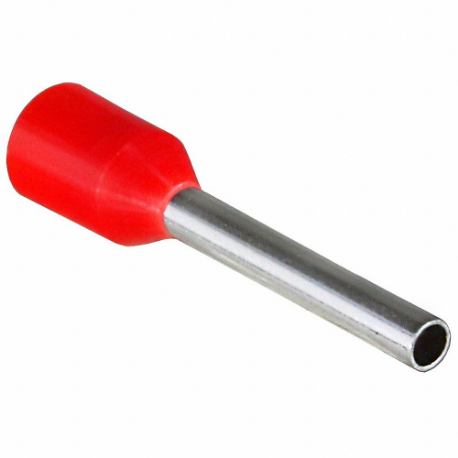

| D1 | 797V04 | 18 AWG | 18 AWG | Red | 3/25" | 221°F | 9/16" | 1 | 0.07" | 100 | €7.73 | |

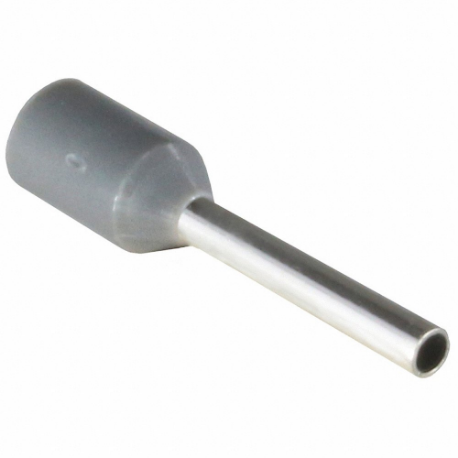

| E1 | 797V02 | 18 AWG | 18 AWG | Gray | 0.11" | 221°F | 15/32" | 1 | - | 100 | €6.66 | |
| F1 | 797V06 | 20 AWG | 20 AWG | White | 0.1" | 221°F | 3/8" | 1 | 0.05" | 100 | €5.88 | |

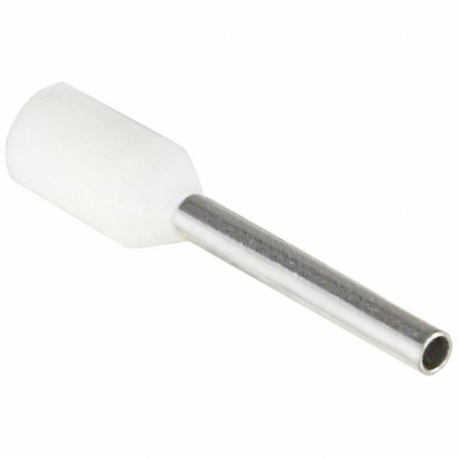

| G1 | 797V07 | 20 AWG | 20 AWG | White | 0.1" | 221°F | 15/32" | 1 | 0.05" | 100 | €6.41 | |

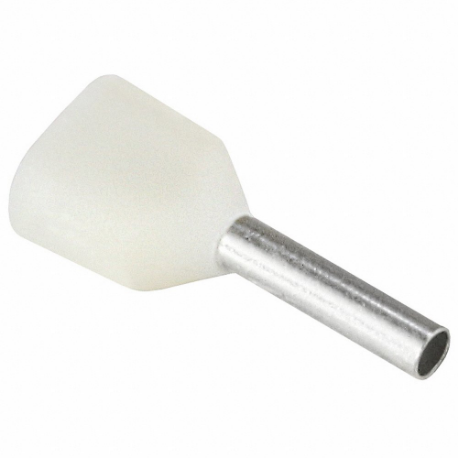

| H1 | 797V16 | 20 AWG | 20 AWG | White | 0.1" | 221°F | 3/8" | 2 | 0.07" | 100 | €9.07 | |

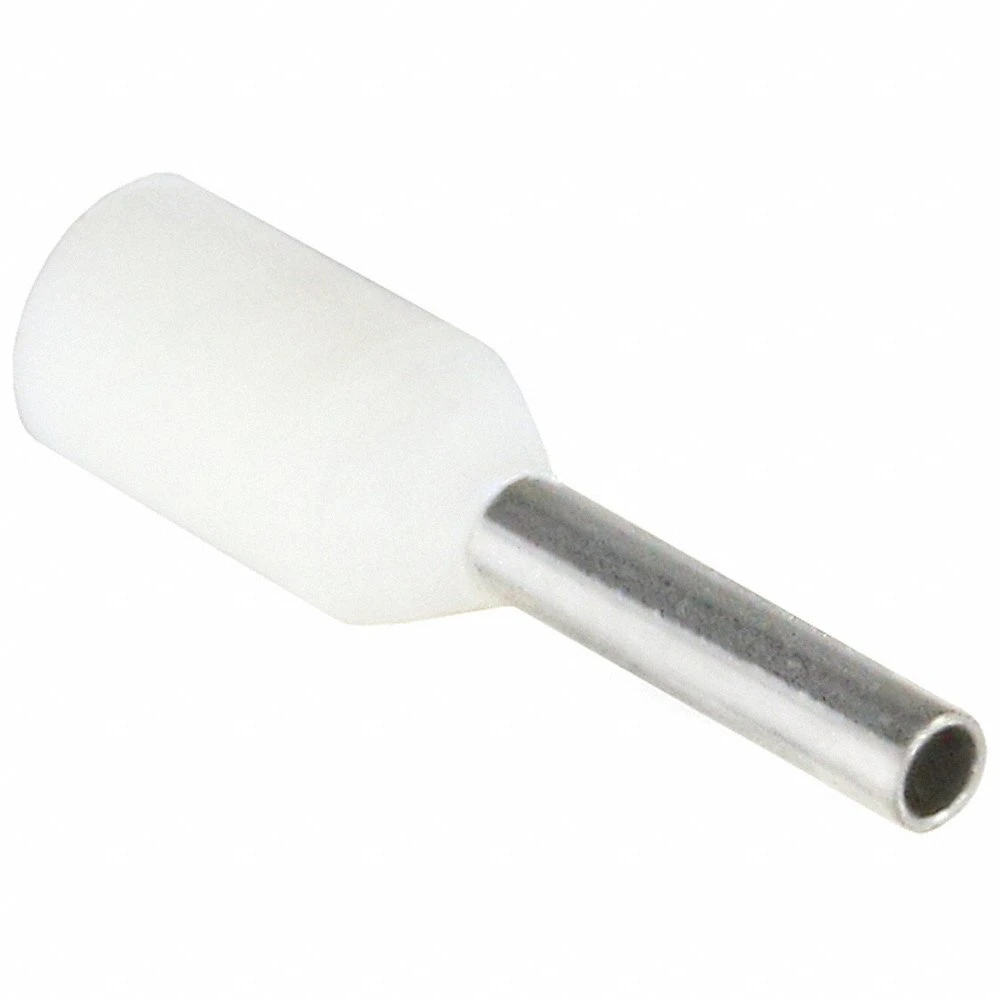

| I1 | 797V05 | 20 AWG | 20 AWG | White | 0.1" | 221°F | 5/16" | 1 | 0.05" | 100 | €5.47 | |

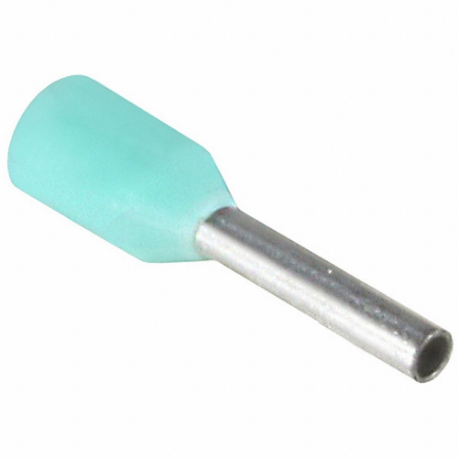

| J1 | 797V10 | 22 AWG | 22 AWG | Turquoise | 2/25" | 221°F | 9/32" | 1 | 1/25" | 100 | €7.92 | |

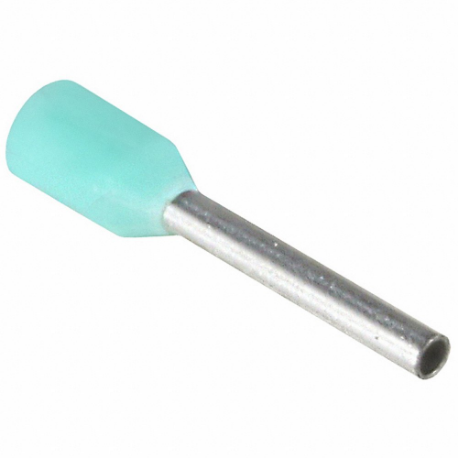

| K1 | 797V11 | 22 AWG | 22 AWG | Turquoise | 2/25" | 221°F | 3/8" | 1 | 1/25" | 100 | €8.35 | |

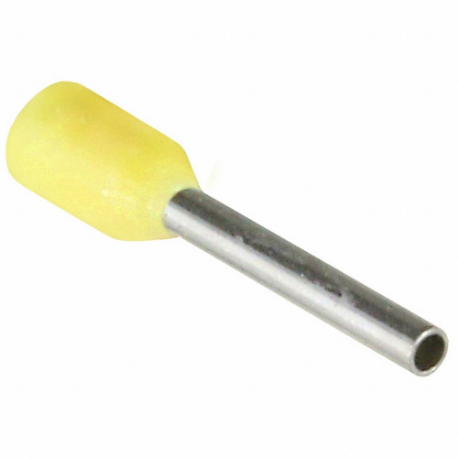

| L1 | 797V09 | 24 AWG | 24 AWG | Yellow | 2/25" | 221°F | 3/8" | 1 | 1/25" | 100 | €8.31 | |

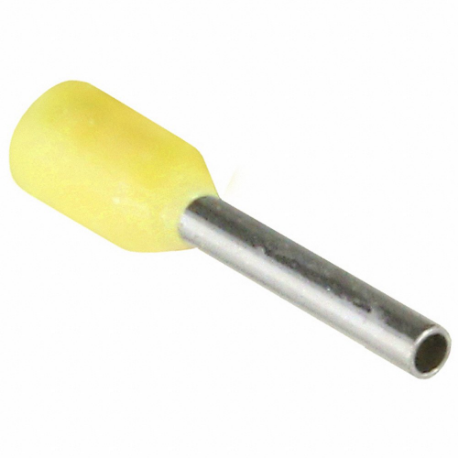

| M1 | 797V08 | 24 AWG | 24 AWG | Yellow | 2/25" | 221°F | 9/32" | 1 | 1/25" | 100 | €7.92 |
