WEG 00718ET3E213TF2-W22 TEFC AC General Purpose Motor | BB7GCL

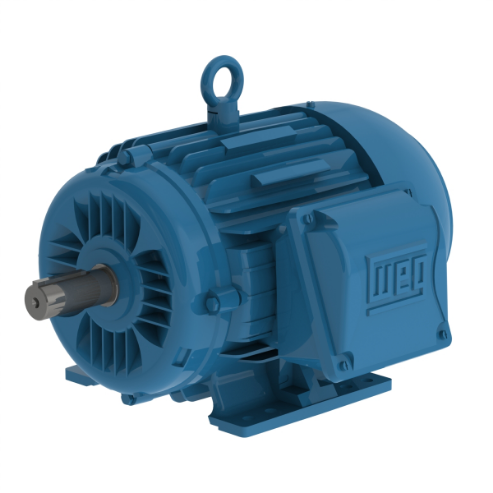

WEG 00718ET3E213TF2-W22 13769966 TEFC AC General Purpose Motor

Item: BB7GCLModel: 00718ET3E213TF2-W22Cross Ref: 13769966
Check Availability
In Stock

Get it by Monday, Dec 22

€1,316.14 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Break-down Torque 310%
Cold Locked Rotor Time 36 sec.
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 91.7%
Efficiency At 1 % 82%
Efficiency At 50 % 66%
Efficiency At 75 % 76%
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Type Without
Frame 213/5T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 20 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 130/65.2A
Locked Rotor Torque 220%
Lrc 7.1X(Code H)
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Moment Of Inertia 1.34 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1765 RPM
Mounting Foot Mounted
No Load Amps 8.4/4.2A
No. Of Poles 4
Noise Level 58 dBA
Output 7 1/2 hp
Output Rating 7 1/2 hp
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Power Factor At 1 % 91.7
Power Factor At 50 % 89.5
Power Factor At 75 % 91
Rated Current 18.4/9.18A
Rated Torque 22.3 lbs.-ft.
Rated Voltage 230/460V AC
Rotation CW/CCW
Rpm 1800 RPM
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.94%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Right Position
Tropicalized Painting Without
Voltage 230/460/380V AC

Shipping Info:

Ship weight (kg) 76.05
Ship height (cm)23.83
Ship length (cm)32.39
Ship width (cm)24.13
Country of OriginBR

Product Variants

ProductModelFrequencyMotor Enclosure DesignVoltageService FactorHpSynchronous SpeedTerminal BoxRpmPrice
WEG 02536ET3E284TSF3-W22 Electric Motor, 25Hp, 60Hz, 3600 Rpm | BB6DPB 02536ET3E284TSF3-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMTop3600 RPM€3,569.80
WEG 00518ET3E184TF2-W22 Electric Motor, 5Hp, 60Hz, 1800 Rpm | BB6HER 00518ET3E184TF2-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1800 RPM€921.07
WEG 01518ET3E254TF3-W22 Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB6HEZ 01518ET3E254TF3-W2260 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMTop1800 RPM€2,199.91
WEG 06018ET3H364TF3-W22 Electric Motor, 60Hp, 60Hz, 1800 Rpm | BB6WQV 06018ET3H364TF3-W2260 HzTotally Enclosed Fan Cooled575V AC1.25-1800 RPMTop1800 RPM€8,853.50
WEG 15036ET3Q445TS-W22 Electric Motor, 150Hp, 60Hz, 3600 Rpm | BB6YGQ 15036ET3Q445TS-W2260 HzTotally Enclosed Fan Cooled460V AC1.15-3600 RPMLeft Position3600 RPM€21,630.68
WEG 05018ET3E326TF2-W22 Electric Motor, 50Hp, 60Hz, 1800 Rpm | BB7AKP 05018ET3E326TF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-1800 RPMRight Position1700-1800 RPM€5,932.58
WEG 03036ET3E286TSF2-W22 Electric Motor, 30Hp, 60Hz, 3600 Rpm | BB7DJH 03036ET3E286TSF2-W2250/60 HzTotally Enclosed Fan Cooled230/460/380V AC1.25-3600 RPMRight Position3400-3600 RPM€4,116.61
