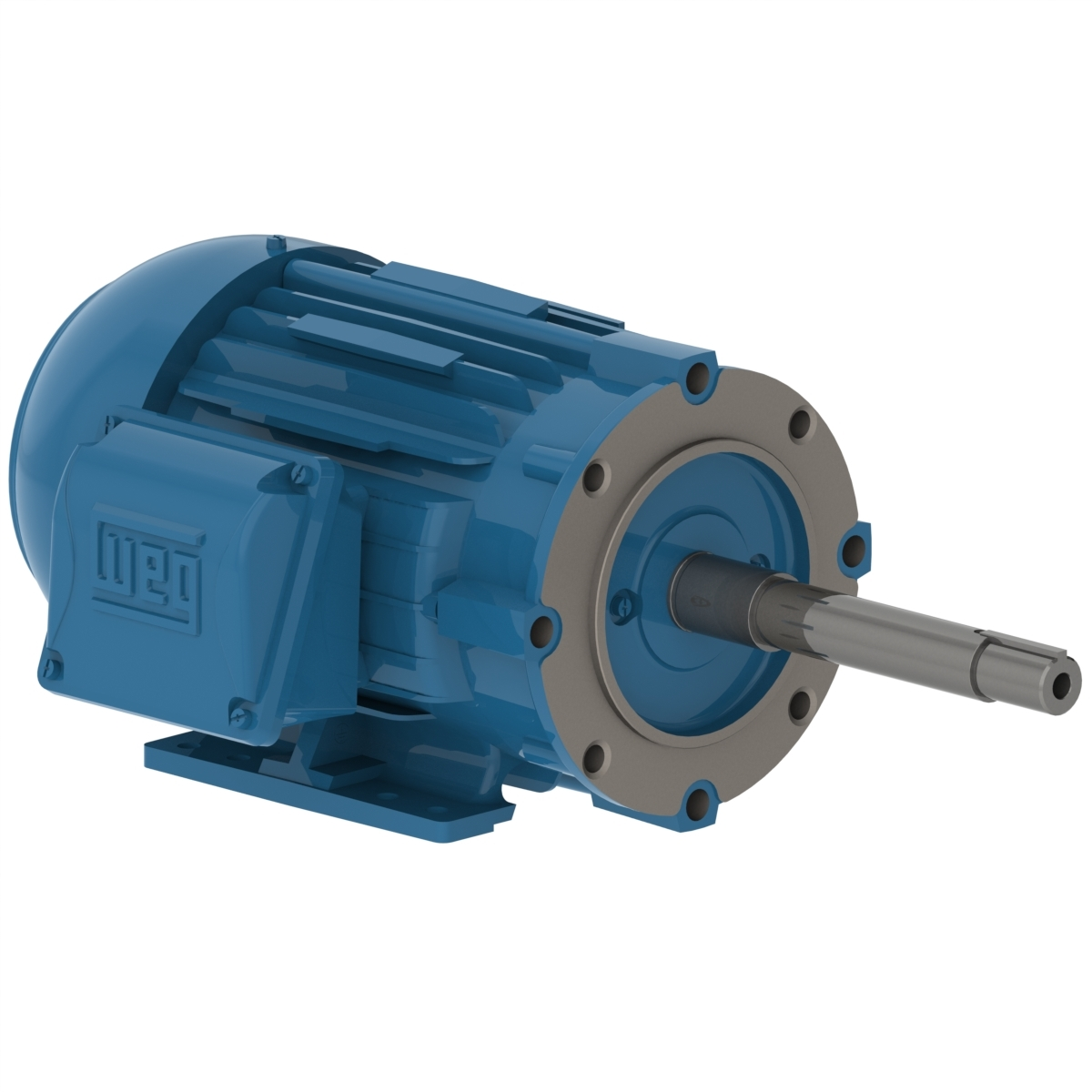

WEG 00112ET3E145JP-W22 12756302 Electric Motor, 1Hp, 60Hz, 1150 Rpm
1200 rpm
1 hp
208/230/460V
145JP
Get it by Tuesday, Aug 25
€851.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 1.73/3.46A |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Cast Iron |
| Break Down Torque | 300% |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 2:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 77% |
| Efficiency 75% | 82% |
| Efficiency @ 100% | 82.5% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 145JP |
| Frame Material | Cast Iron |
| Frame Size | 143/5JP |
| Frequency | 60 Hz |
| Full Load Amps | 1.73/3.45-3.82A |
| Grounding Lugs | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Duty |
| L. R. Amps | 10.7/21.5A |
| Locked Rotor Time (cold) | 50 sec. |
| Locked Rotor Time(hot) | 28 sec. |
| Locked Rotor Torque | 260% |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 0.1595 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1, F2 |
| Nema Frame | NEMA 143-5JP |
| Nema Mount | C Face With Base |
| No Load Amps | 1.1/2.2A |
| No. Of Poles | 6 |
| Noise | 49 dBA |
| Noise Level | 50 dBA |
| Output Hp | 1 hp |
| Output Kw | 0.75/0.56 kW |
| Output Speed | 1160/960 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.66 |
| Power Factor 50% | 0.45 |
| Power Factor 75% | 0.57 |
| Product Datasheet | weg-00112et3e145jp-w22.pdf |
| Pump Seal | Gasket |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Slip | 3.33% |
| Speed | 1100-1200 RPM , 1160 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.51 lbs.-ft. |
| Voltage | 230/460/380V , 230/460/380V AC |
Shipping Info:
| Ship weight (kg) | 23.81 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 46.66 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Hp | No. Of Poles | Synchronous Speed | Mounting | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02512ET3E324JM-W22 | 230/460/380V AC | 326JM | 1.25 | 25 hp | 6 | 1200 RPM | F-1 | Class F | €6,353.33 | |
|
01536EP3E254JM-W22 | 208/230/460V AC | 254JM | 1.25 | 15 hp | 2 | 3600 RPM | F-1 | Class F | €2,345.57 | |
 |
00236ET3E145JM-W22 | 208/230/460V AC | 143JM | 1 | 2 hp | 2 | 3600 RPM | F-1 | Class F | €814.87 | |
 |
01518ET3E254JM-S | 230/460/190-220/380-415V AC | 254JM | 1.15 | 15 hp | 4 | 1800 RPM | F-1 | Class F | €3,016.06 | |
 |
02012ET3E286JP-W22 | 208-230/460/380V AC | 284JP | 1 | - | 6 | 1200 RPM | F-1 | Class F | €5,745.04 | |
|
02012ET3E286JM-W22 | 230/460/380V AC | 284JM | 1.25 | - | 6 | 1200 RPM | F-1 | Class F | €5,659.13 | |
|
01512ET3E284JM-W22 | 230/460/380V AC | 286JM | 1.25 | - | 6 | 1200 RPM | F-1 | Class F | €4,522.38 |
