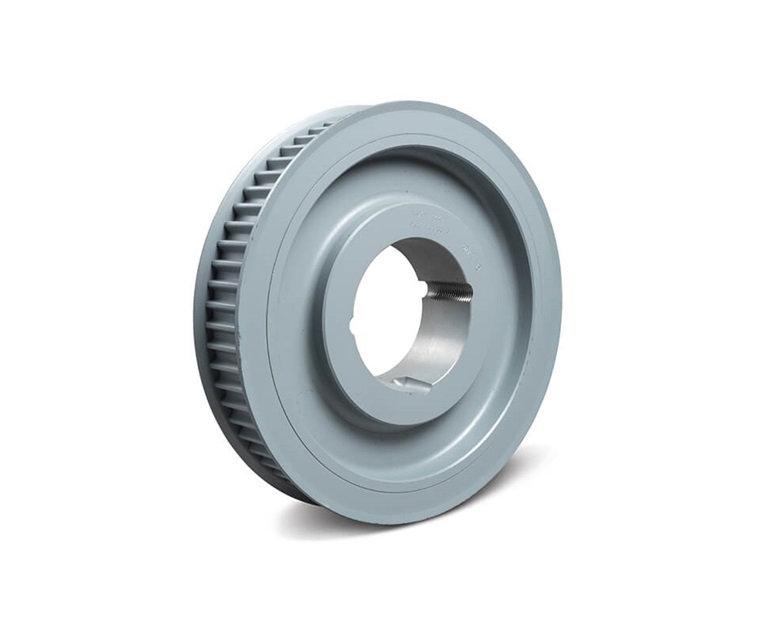

TB WOODS P6014M40TL Synchronous Plus TL Belt Sprocket, Cast Iron, 6.25 inch Hub Dia., 40mm Belt Width
40 mm
10.527"
Get it by Tuesday, Jul 14
€751.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 40 mm |
| Bore Type | Taper Locking Bushing |
| Bushing | 3020 |
| Bushing Type | 3020 |
| Dimension L | 2" |
| Dimensions E | 0.0" |
| Dimensions M | 0.13" |
| Face Width | 2.13" |
| Hub Dia. | 6 1/4" |
| Hub Length | 2" |
| Inside Dia. | 8 1/2" |
| Material | Cast Iron |
| Max. Speed | 2400 RPM |
| No. Of Teeth | 60 |
| Outside Dia. | 10.42" |
| Pitch Dia. | 10.527" |
| Product Type | Synchronous Plus TL |
| Rpm High | 2400 RPM |
| Rpm High | 2,400 rpm |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 26.47 |
| Ship width (cm) | 26.47 |
Product Variants
| Model | Pitch Dia. | Outside Dia. | Rpm High | Max. Speed | Face Width | Bore Type | Hub Length | Belt Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P328M20TL | 3.208" | 3.15" | 12110 RPM | 12110 RPM | 1.13" | Taper Locking Bushing | 1" | 20 mm | €234.80 | |
| P308M30TL | 3.008" | 2.95" | 12930 RPM | 12930 RPM | 1 1/2" | Taper Lock Bushed | 1" | 30 mm | €238.77 | |
| P408M30TL | 4.01" | 3 24/25" | 9650 RPM | 9650 RPM | 1 1/2" | Taper Locking Bushing | 1 1/4" | 30 mm | €286.78 | |
| P808M30TL | 8.02" | 7.97" | 3140 RPM | 3140 RPM | 1 1/2" | Taper Locking Bushing | 1 3/4" | 30 mm | €473.62 | |
| P328M30TL | 3.208" | 3.15" | 12110 RPM | 12110 RPM | 1 1/2" | Taper Locking Bushing | 1" | 30 mm | €246.74 | |
| P568M50TL | 5.614" | - | 4500 RPM | 4500 RPM | 2.38" | Taper Locking Bushing | 1 3/4" | - | €449.75 | |
| P4414M40TL | 7 18/25" | 7.61" | 3290 RPM | 3290 RPM | 2.13" | Taper Locking Bushing | 1 3/4" | - | €455.91 |
