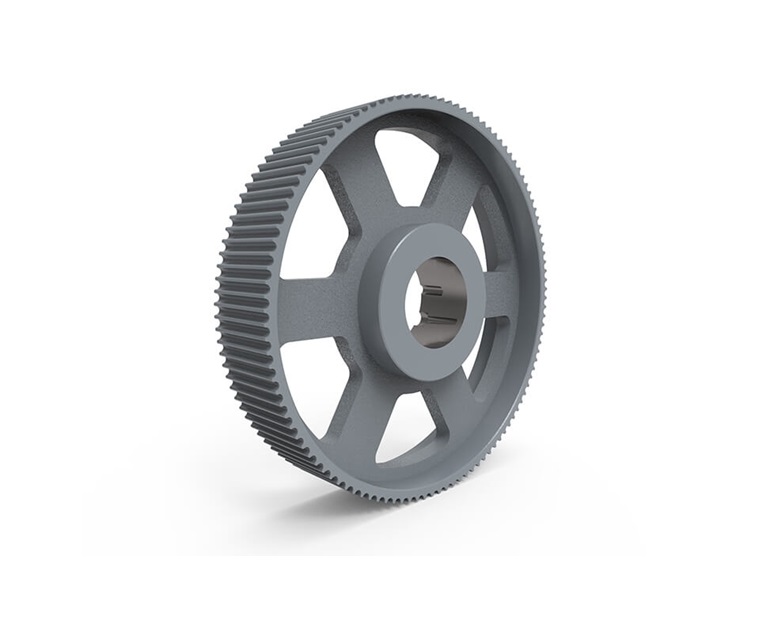

TB WOODS P11214M85TL Synchronous Plus TL Belt Sprocket, Cast Iron, 7.75 inch Hub Dia., 85mm Belt Width
85 mm
19.65"
Get it by Monday, Dec 22
€1,493.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 85 mm |
| Bore Type | Taper Locking Bushing |
| Bushing | 3535 |
| Bushing Type | 3535 |
| Dimension E | 0.0" |
| Dimension L | 3 1/2" |
| Dimension M | 1/2" |
| Face Width | 4" |
| Hub Dia. | 7 3/4" |
| Hub Length | 3 1/2" |
| Inside Dia. | 18 1/4" |
| Material | Cast Iron |
| Max. Rpm | 1280 RPM |
| Number Of Teeth | 112 |
| Outside Dia. | 19.54" |
| Pitch Dia. | 19.65" |
| Product Type | Synchronous Plus TL |
| Rpm High | 1280 RPM |
| Rpm High | 1,280 rpm |
Shipping Info:
| Ship weight (kg) | 40.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 49.63 |
| Ship width (cm) | 49.63 |
Product Variants
| Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Rpm High | Max. Rpm | Face Width | Bore Type | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P328M20TL | 32 | 3.208" | 3.15" | 12110 RPM | 12110 RPM | 1.13" | Taper Locking Bushing | 0.13" | €234.80 | |
| P308M30TL | 30 | 3.008" | 2.95" | 12930 RPM | 12930 RPM | 1 1/2" | Taper Lock Bushed | 0.13" | €238.77 | |
| P408M30TL | 40 | 4.01" | 3 24/25" | 9650 RPM | 9650 RPM | 1 1/2" | Taper Locking Bushing | 0.0" | €286.78 | |
| P808M30TL | 80 | 8.02" | 7.97" | 3140 RPM | 3140 RPM | 1 1/2" | Taper Locking Bushing | 0.0" | €473.62 | |
| P328M30TL | 32 | 3.208" | 3.15" | 12110 RPM | 12110 RPM | 1 1/2" | Taper Locking Bushing | 0.13" | €246.74 | |
| P568M50TL | 56 | 5.614" | - | 4500 RPM | 4500 RPM | 2.38" | Taper Locking Bushing | 0.0" | €449.75 | |
| P4414M40TL | 44 | 7 18/25" | 7.61" | 3290 RPM | 3290 RPM | 2.13" | Taper Locking Bushing | 0.0" | €455.91 |
