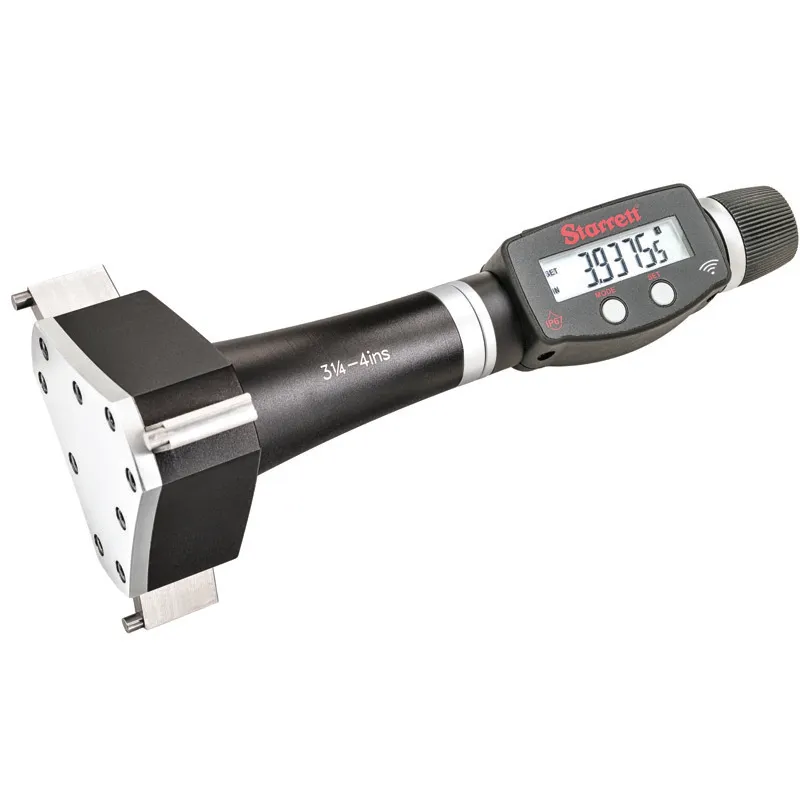

STARRETT 770BXTZ-4 72567 Digital 3-Point Inside Micrometer, 3.25 Inch To 4 In/80 mm To 100 mm Range, Ip65
Item: CU4NAGModel: 770BXTZ-4Cross Ref: 53VE43 / 72567
7 In Stock
4"
Ships within 2 days via
5.00% off
€3,279.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inside Micrometer |
| Accuracy | 0.0002" , 0.005 mm |
| Approximate Measuring Depth | 4" |
| Case Included | Yes |
| Case Type | Wood Case |
| Contact Point Material | Carbide |
| Coolant Resistant | Yes |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Type | LCD |
| Functions | In./mm Conversion |
| Included | Adjusting Wrench, Contacts, Instructions, Setting Ring, Spare Battery |
| Included Battery | Yes |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Max. Measurement | 100 mm |
| Max. Measurement-inch | 4" |
| Max. Measuring Depth | 4" |
| Min. Measurement | 80 mm |
| Min. Measurement-inch | 3 1/4" |
| No. Of Batteries Required | 1 |
| No. Of Micrometers | 1 |
| Operation Type | Digital |
| Output | Cabled, Wireless |
| Range | 3 1/4" to 4" , 80 mm to 100 mm |
| Resolution | 0.00005" |
| Spc Output | Yes |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 29.72 |
| HS code | 9017304000 |
| Country of Origin | UK |
Product Variants
| Product | Model | Range | Resolution | Max. Measuring Depth | Max. Measurement | Min. Measurement-inch | Min. Measurement | Inside Micrometer Type | Approximate Measuring Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
770BXTZ-100 | 0.08" to 0.1" | 0.00005" | 3/8" | 2.5 mm | 2/25" | 2 mm | 2 Point Inside Micrometer | 3/8" | €4,176.34 | |
 |
770BXTZ-120 | 2.5 mm to 3 mm | 0.00005" | 3/8" | 3 mm | 0.1" | 2.5 mm | 2 Point Inside Micrometer | 3/8" | €4,176.34 | |
 |
770BXTZ-160 | 3 mm to 4 mm | 0.00005" | 15/32" | 4 mm | 0.12" | 3 mm | 2 Point Inside Micrometer | 15/32" | €4,176.34 | |
 |
770BXTZ-200 | 4 mm to 5 mm | 0.00005" | 3/4" | 5 mm | 4/25" | 4 mm | 2 Point Inside Micrometer | 3/4" | €4,176.34 | |
 |
770BXTZ-250 | 5 mm to 6 mm | 0.00005" | 3/4" | 6 mm | 1/5" | 5 mm | 2 Point Inside Micrometer | 3/4" | €4,176.34 | |
 |
770BXTZ-312 | 6 mm to 8 mm | 0.00005" | 2 1/4" | 8 mm | 1/4" | 6 mm | 3 Point Inside Micrometer | 2 1/4" | €2,334.33 | |
 |
770BXTZ-375 | 8 mm to 10 mm | 0.00005" | 2 1/4" | 10 mm | 0.3125" | 8 mm | 3 Point Inside Micrometer | 2 1/4" | €2,693.05 |
