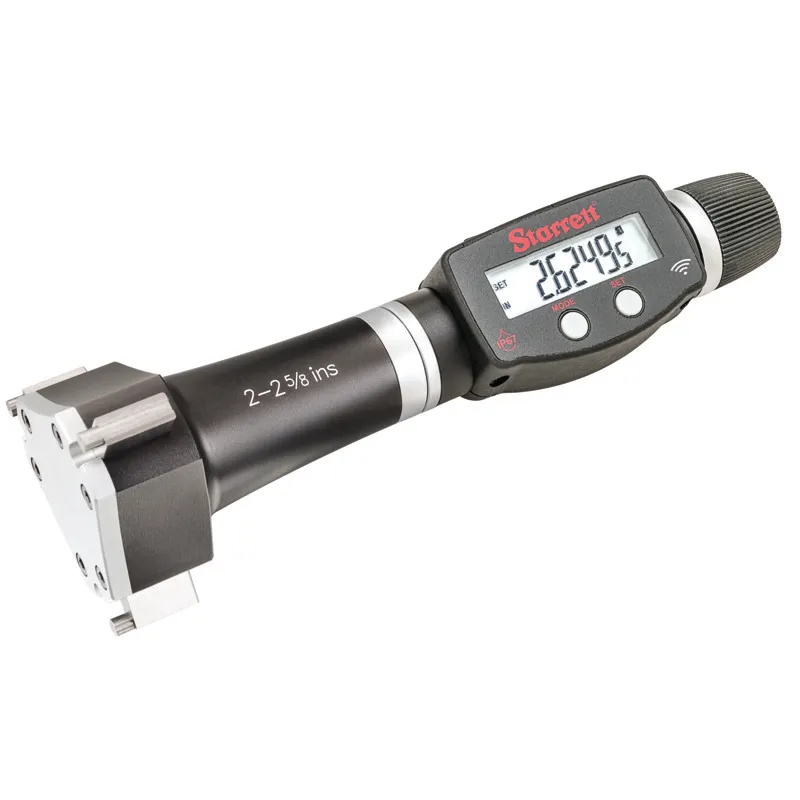

STARRETT 770BXTZ-258 72564 Digital 3-Point Inside Micrometer, 2 Inch To 2.625 In/50 mm To 65 mm Range, Ip65
Item: CU4NADModel: 770BXTZ-258Cross Ref: 53VE39 / 72564
7 In Stock
2.625"
Ships within 2 days via
5.00% off
€3,193.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inside Micrometer |
| Accuracy | 0.0002" , 0.005 mm |
| Approximate Measuring Depth | 3 1/16" |
| Case Included | Yes |
| Case Type | Wood Case |
| Contact Point Material | Carbide |
| Coolant Resistant | Yes |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Type | LCD |
| Functions | In./Mm Conversion, Reducing The Need to Exchange Anvils |
| Included | Adjusting Wrench, Contacts, Instructions, Setting Ring, Spare Battery |
| Included Battery | Yes |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Max. Measurement | 65 mm |
| Max. Measurement-inch | 0.625" |
| Max. Measuring Depth | 3 1/16" |
| Min. Measurement | 50 mm |
| Min. Measurement-inch | 2" |
| No. Of Batteries Required | 1 |
| No. Of Micrometers | 1 |
| Operation Type | Digital |
| Output | Cabled, Wireless |
| Range | 2" to 2 5/8" , 50 mm to 65 mm |
| Resolution | 0.00005" |
| Spc Output | Yes |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 27.18 |
| Ship width (cm) | 27.18 |
| HS code | 9017304000 |
| Country of Origin | UK |
Product Variants
| Product | Model | Resolution | Range | Min. Measurement | Inside Micrometer Type | Rod Dia. | Spc Output | Ip Rating | Thimble Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
770BXTZ-100 | 0.00005" | 0.08" to 0.1" | 2 mm | 2 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-120 | 0.00005" | 2.5 mm to 3 mm | 2.5 mm | 2 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-160 | 0.00005" | 3 mm to 4 mm | 3 mm | 2 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-200 | 0.00005" | 4 mm to 5 mm | 4 mm | 2 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-250 | 0.00005" | 5 mm to 6 mm | 5 mm | 2 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €4,176.34 | |
 |
770BXTZ-312 | 0.00005" | 6 mm to 8 mm | 6 mm | 3 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €2,334.33 | |
 |
770BXTZ-375 | 0.00005" | 8 mm to 10 mm | 8 mm | 3 Point Inside Micrometer | - | Yes | IP65 | Ratchet Stop | €2,693.05 |
