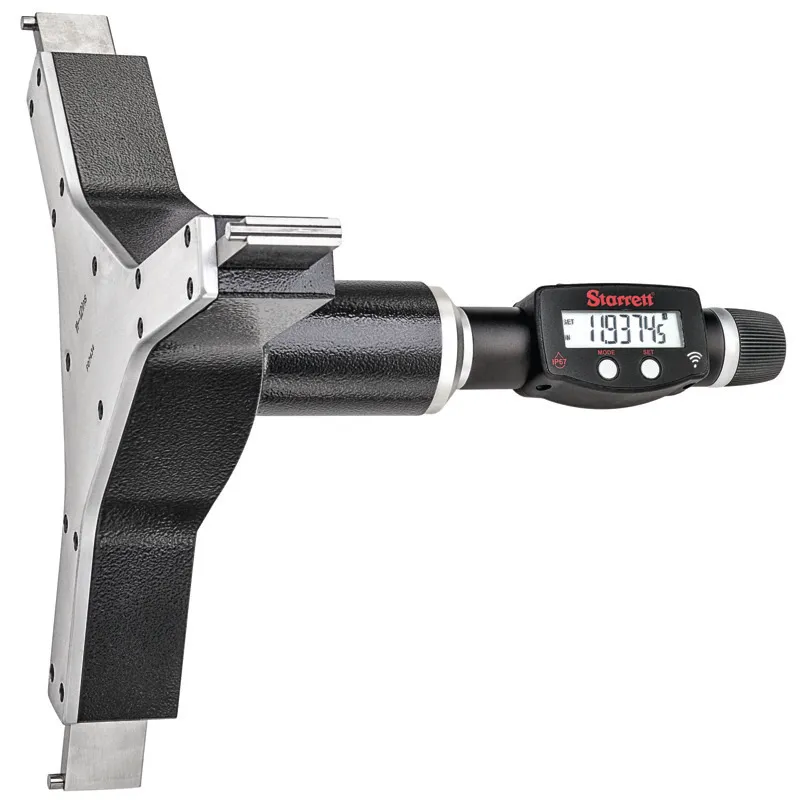

STARRETT 770BXTZ-12 72575 Digital 3-Point Inside Micrometer, 11 Inch To 12 In/275 mm To 300 mm Range, Ip65
12"
Get it by Thursday, Aug 20
5.00% off
€5,310.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Inside Micrometer |
| Accuracy | 0.00035" , 0.009 mm |
| Approximate Measuring Depth | 4 5/8" |
| Case Included | Yes |
| Case Type | Wood Case |
| Contact Point Material | Carbide |
| Coolant Resistant | Yes |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Type | LCD |
| Functions | In./Mm Conversion, Reducing The Need to Exchange Anvils |
| Included | Adjusting Wrench, Contacts, Instructions, Setting Ring, Spare Battery |
| Included Battery | Yes |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Max. Measurement | 300 mm |
| Max. Measurement-inch | 12" |
| Max. Measuring Depth | 4 5/8" |
| Min. Measurement | 275 mm |
| Min. Measurement-inch | 11" |
| No. Of Batteries Required | 1 |
| No. Of Micrometers | 1 |
| Operation Type | Digital |
| Output | Cabled, Wireless |
| Range | 11" to 12" , 275 mm to 300 mm |
| Resolution | 0.00005" |
| Spc Output | Yes |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 40.64 |
| HS code | 9017304000 |
| Country of Origin | UK |
Product Variants
| Product | Model | Range | Resolution | Max. Measuring Depth | Max. Measurement | Min. Measurement-inch | Min. Measurement | Inside Micrometer Type | Approximate Measuring Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
770BXTZ-100 | 0.08" to 0.1" | 0.00005" | 3/8" | 2.5 mm | 2/25" | 2 mm | 2 Point Inside Micrometer | 3/8" | €4,176.34 | |
 |
770BXTZ-120 | 2.5 mm to 3 mm | 0.00005" | 3/8" | 3 mm | 0.1" | 2.5 mm | 2 Point Inside Micrometer | 3/8" | €4,176.34 | |
 |
770BXTZ-160 | 3 mm to 4 mm | 0.00005" | 15/32" | 4 mm | 0.12" | 3 mm | 2 Point Inside Micrometer | 15/32" | €4,176.34 | |
 |
770BXTZ-200 | 4 mm to 5 mm | 0.00005" | 3/4" | 5 mm | 4/25" | 4 mm | 2 Point Inside Micrometer | 3/4" | €4,176.34 | |
 |
770BXTZ-250 | 5 mm to 6 mm | 0.00005" | 3/4" | 6 mm | 1/5" | 5 mm | 2 Point Inside Micrometer | 3/4" | €4,176.34 | |
 |
770BXTZ-312 | 6 mm to 8 mm | 0.00005" | 2 1/4" | 8 mm | 1/4" | 6 mm | 3 Point Inside Micrometer | 2 1/4" | €2,334.33 | |
 |
770BXTZ-375 | 8 mm to 10 mm | 0.00005" | 2 1/4" | 10 mm | 0.3125" | 8 mm | 3 Point Inside Micrometer | 2 1/4" | €2,693.05 |
