STARRETT C434M-300 56420 300mm Combination Set with Square, Steel Blade, Black Finish
Item: AD6XFBModel: C434M-300Cross Ref: 4CEU1 / 56420
7 In Stock
Ships within 2 days via
5.00% off
€686.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Combination Square Set |
| Accuracy | -0.0025" to +0.0025" |
| Blade Coating | Chrome |
| Blade Finish | Satin Chrome |
| Blade Finish | Satin |
| Blade Length | 11 13/16" |
| Blade Material | Steel |
| Blade Thickness | 2/25" |
| Blade Width | 3/4" |
| Finish | Baked Enamel |
| Graduation Color | Black |
| Graduation Mark Style | Etched |
| Graduation Marks (front) | 1 mm |
| Graduation Scale | 35 |
| Graduation Type | 35 |
| Graduation Units | Inches |
| Head Coating | Enamel |
| Head Color | Black |
| Head Finish | Wrinkle |
| Head Length | 3" |
| Head Material | Steel |
| Head Type | Center, Protractor, Square |
| Head Vial Included | Yes |
| Head Width | 9/16" |
| Included | Blade |
| No. Of Pieces | 4 |
| Squareness Tolerance | -0.002" to +0.002" |
| System Of Measurement | Imperial, Metric |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 34.8 |
| Ship width (cm) | 20.07 |
| HS code | 9017800000 |
| Country of Origin | US |
Product Details:

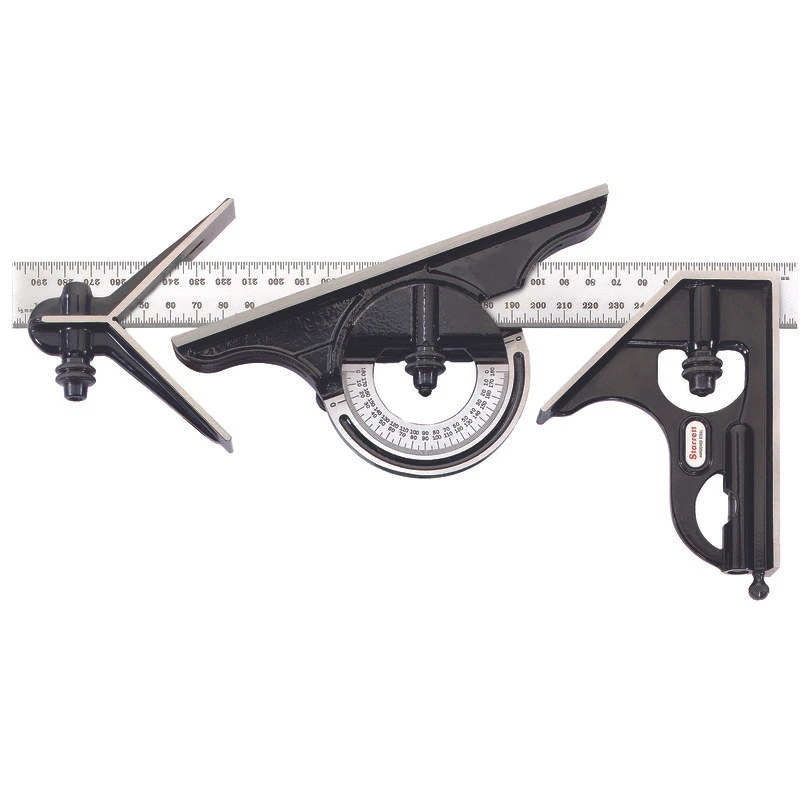

- Starrett C434M-300 is a 4-piece, combination square set that includes a 12-inch-long, hardened steel, photo-engraved blade having satin-chrome finish, a hardened-steel square head, a centre head and a reversible protractor head having smooth black enamel finish.
- The square head has a precision ground, 90-degree square face and a 45-degree miter face. It can be used to make right angles / parallel lines and can also be used as a measuring tool. The centre head is used to locate the centre of a cylindrical or square workpiece.
- The reversible protractor head has revolving turrets with direct-reading, double-180-degree, protractor scale and is ideal for measuring angles accurately.
- This combination square set by Starrett has a reversible lock bolt, scriber and spirit level. The reversible lock bolt ensures proper alignment of the blade with the heads as it enables the blade to be turned over without removing the lock bolt or nut.
Product Variants
| Product | Model | Head Material | Blade Length | Blade Finish | Head Finish | Graduation Type | Blade Material | Blade Thickness | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C434-12-4R | Cast Iron | 12" | Satin Chrome | Smooth Black | 4R | Steel | 2/25" | Enamel | €753.22 | |
 |
C434-12-16R | Steel | 12" | Satin | - | - | Steel | 0.08" | Smooth | €702.12 | |
|
434-12-4R | Forged Steel | 12" | - | - | - | Hardened Steel | - | - | €687.75 | |
 |
434-18-4R | Cast Iron | 18" | Regular | Smooth Black | 4R | - | - | - | €727.10 | |
 |
434M-300 | Cast Iron | 300 mm | Regular | Smooth Black | 35 | - | - | - | €656.43 | |
 |

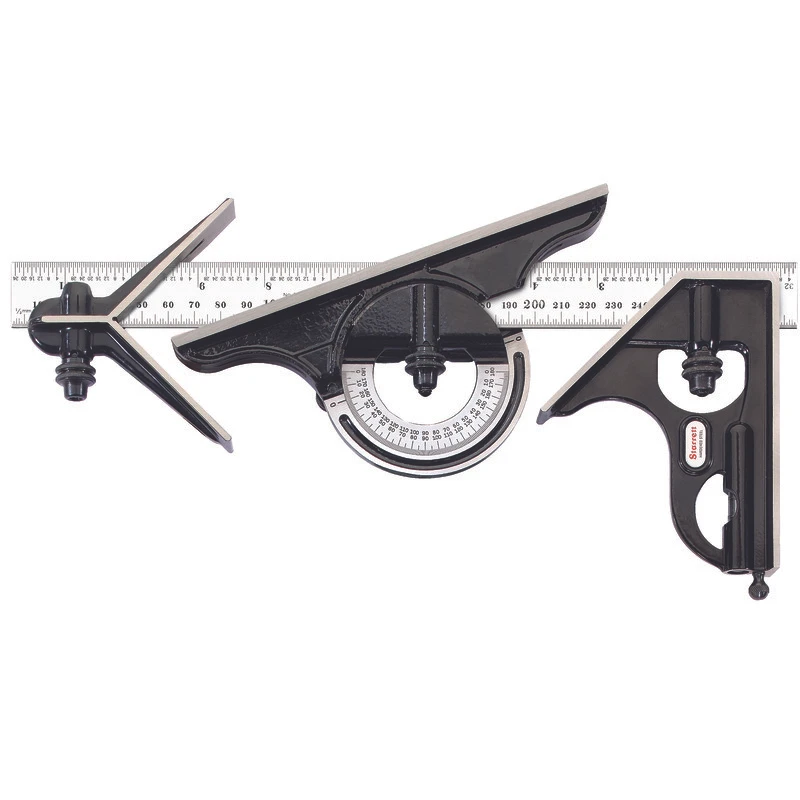

C434ME-300 | Cast Iron | 300 mm | Satin Chrome | Smooth Black | 36 | - | - | - | €630.54 | |
 |
434-12-16R | Cast Iron | 12" | Regular | Smooth Black | 16R | - | - | - | - | RFQ
|
